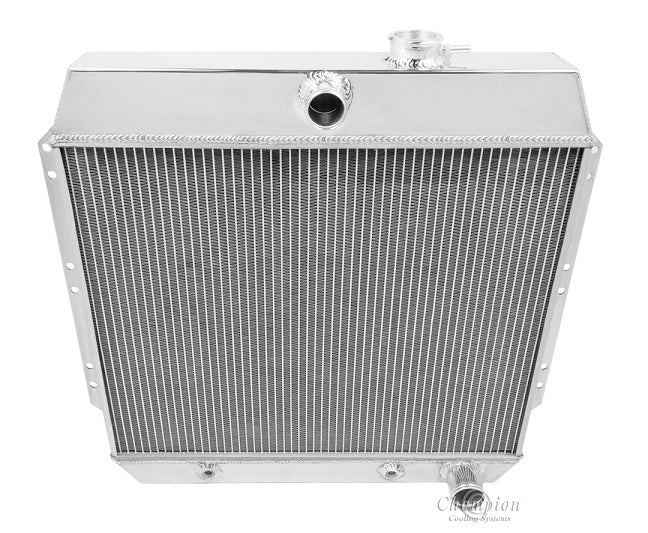

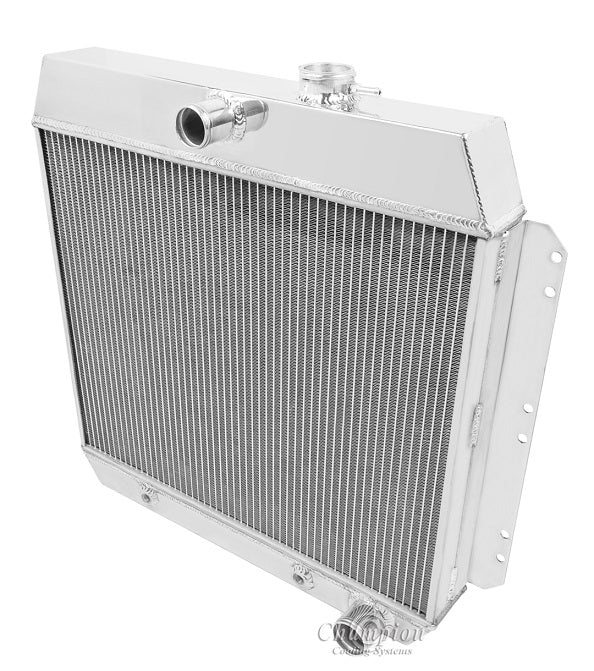

EC4954 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 375hp
Redesigned to work with the 6 Cylinder as well as the v8

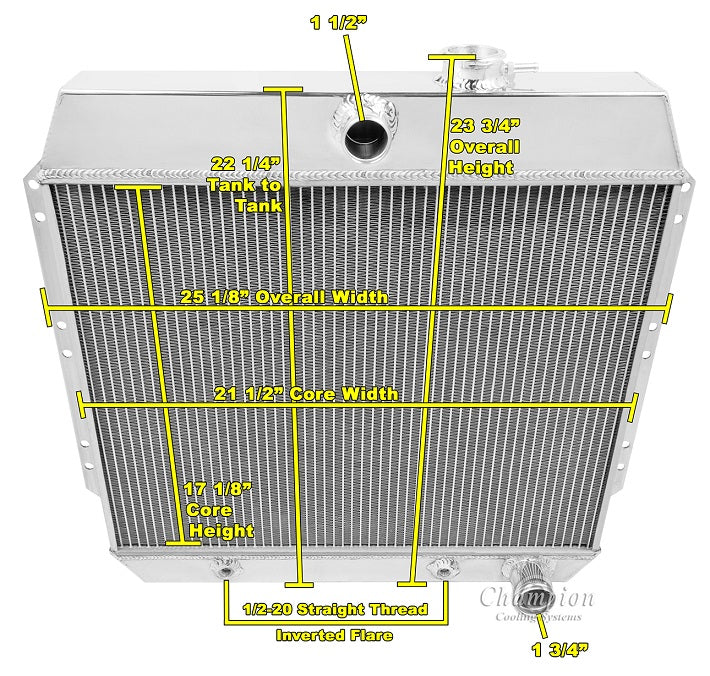

Radiator Dimensions:
Total: 23.63" tall (with cap) x 25.25" wide (with brackets)
Core: 17.13" tall x 21.5" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" Passenger side
Tanks: 2.25" thick
Tubes: 0.75" thick

Bracket Mounted


13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)
Petcock on back side
