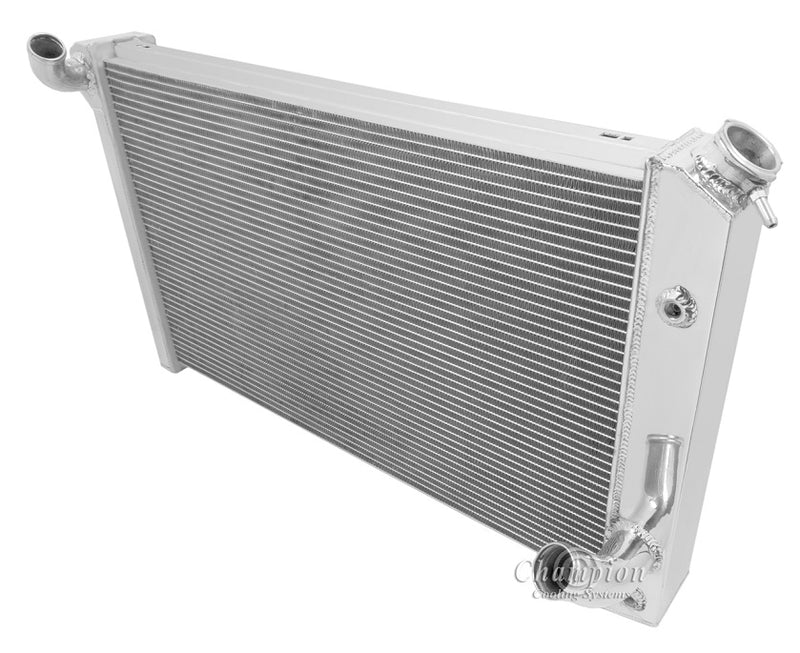

EC478 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

EC478 Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 32.5" wide (top) 31.5"(bottom)
Core: 17" tall x 27.5" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.75" thick

Saddle mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2- 20 STRAIGHT THREAD)

When using electric fans:
16" Electric fan recommended for this core size (sold separately)
