EC433-433FS12FSP 2 Row Combo

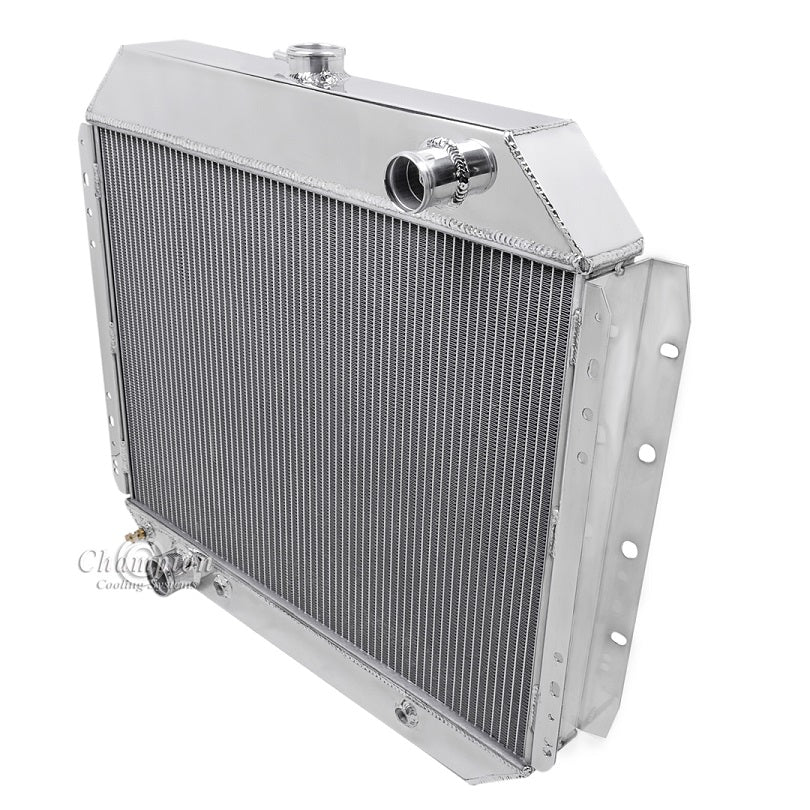

Champion All Aluminum Radiator

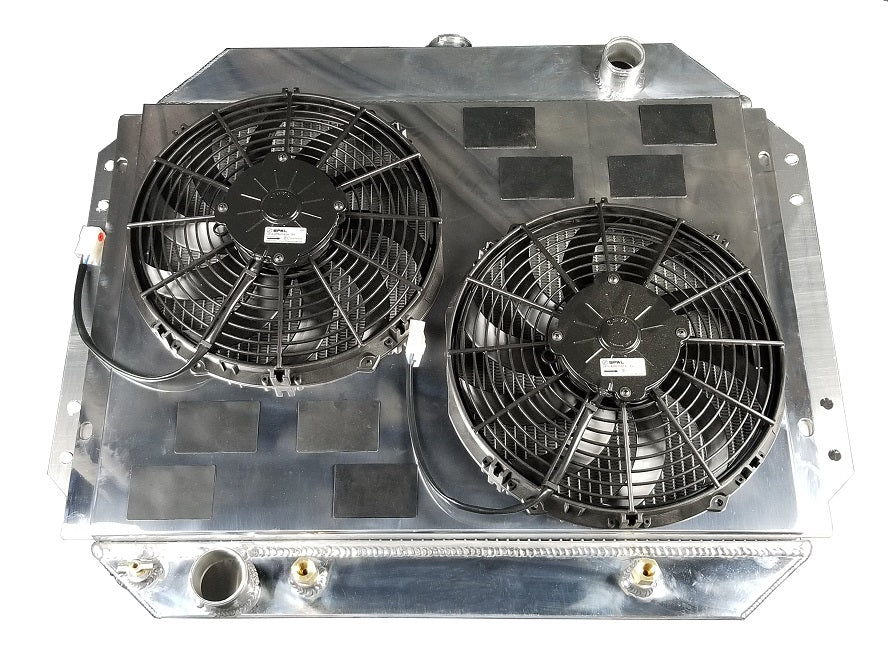

Plus Ledfoot Racing Custom Aluminum Shroud
with eight (8) rubber air flow flaps
and Two 12" SPAL-1522 Fans "SAVE $30"
2-Row Core | Cools 450hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

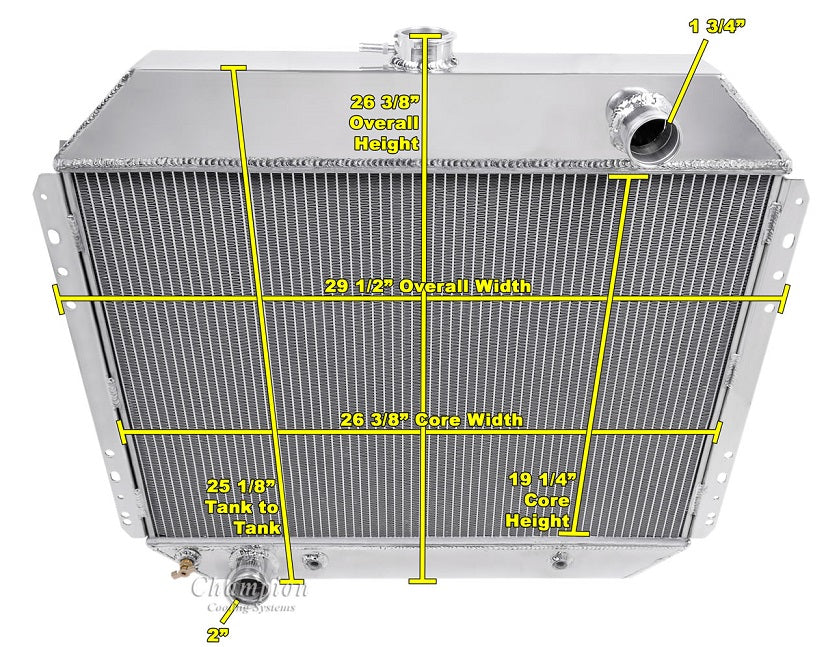

EC433 Radiator Dimensions:
Total: 25" (26 3/8 Incl Cap) x 29.5" (including brackets)
Core: 19.25" tall x 26.38" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
