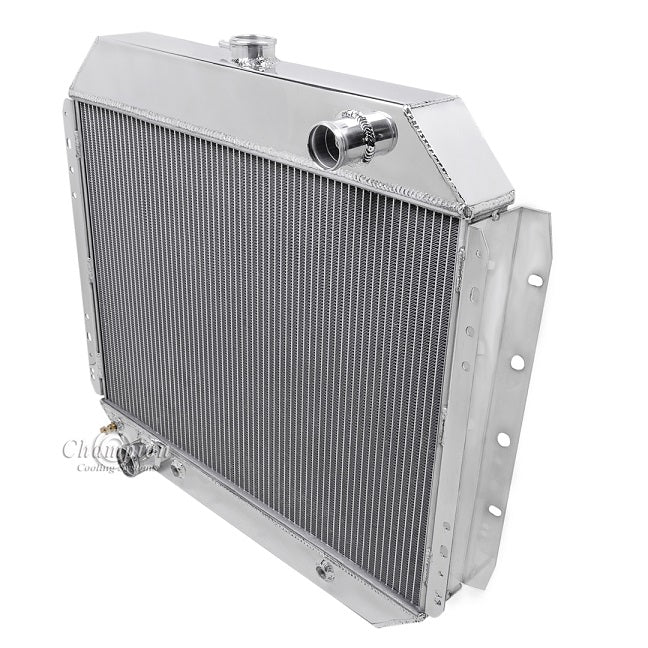

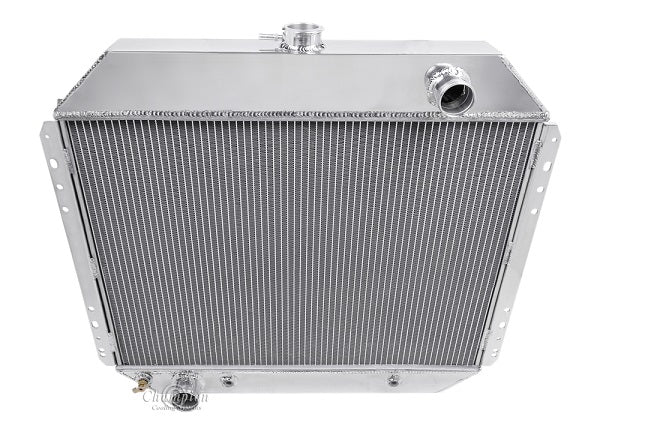

EC433 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

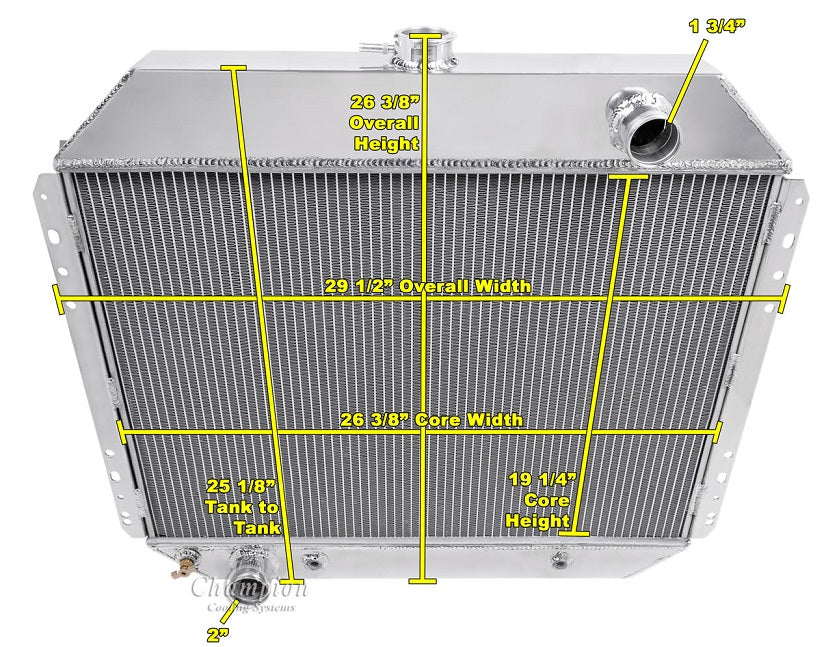

EC433 Radiator Dimensions:
Total: 25" (26 3/8 Incl Cap) x 29.5" (including brackets)
Core: 19.25" tall x 26.375" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud also available (sold separately)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)
