Description

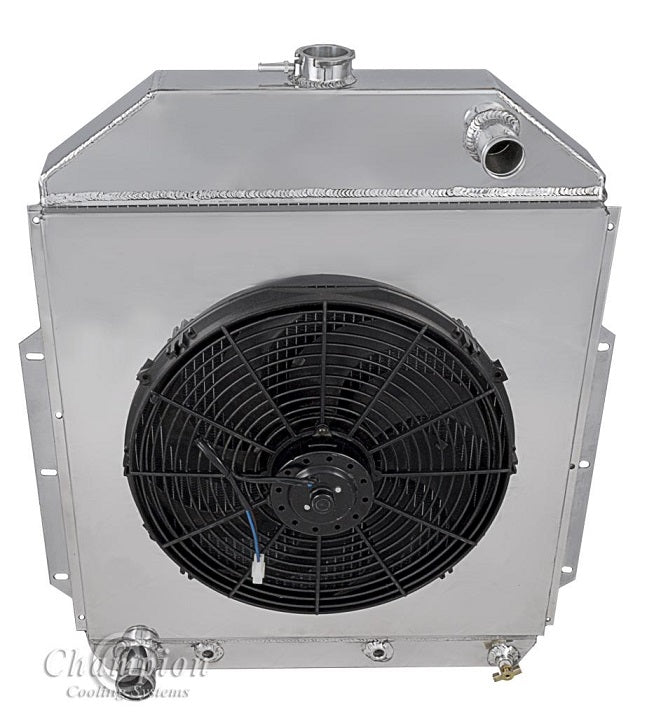

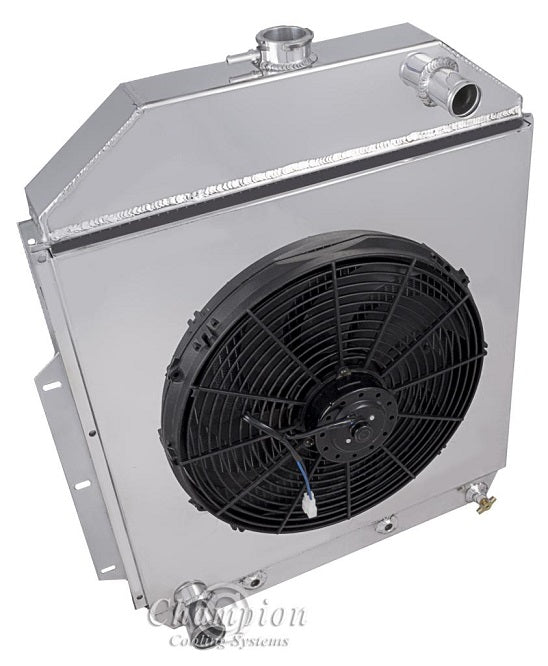

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools up to 400hp

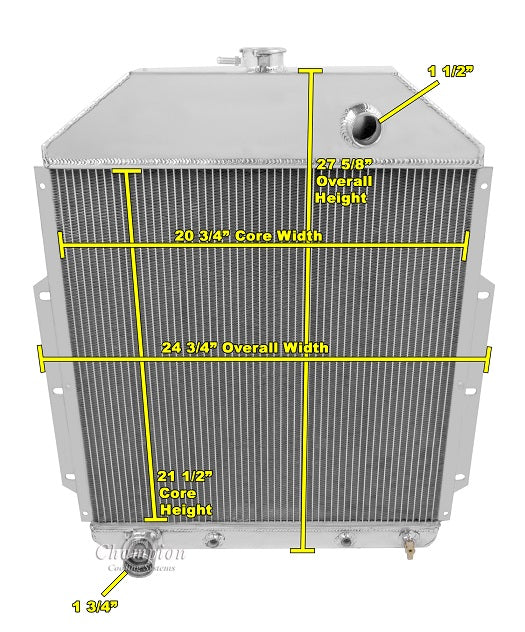

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included: 1/8" -27 NPT
Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools up to 400hp
Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included: 1/8" -27 NPT
