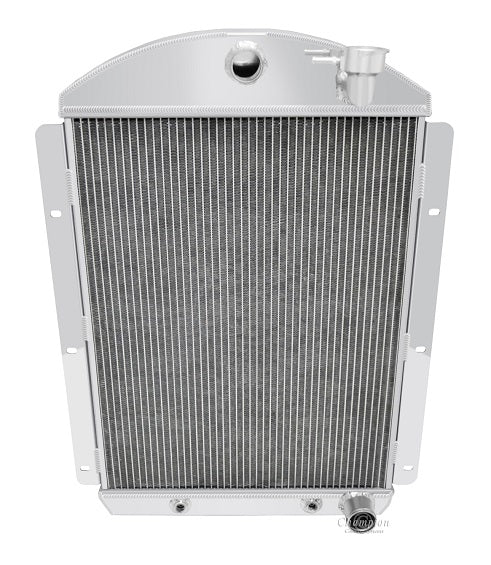

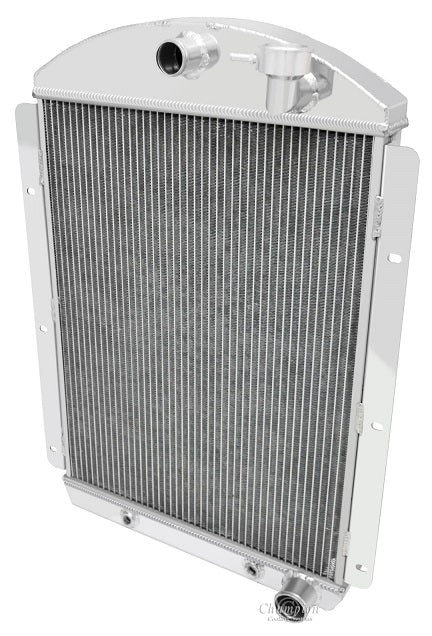

EC4146CH 2 Row for V8's

Champion All Aluminum Radiator
For Chevy V8 Engines
2-Row Core | Cools up to 450hp

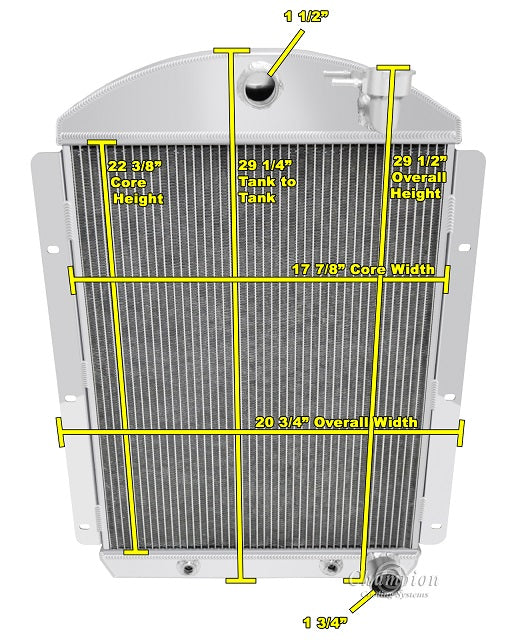

Radiator Dimensions:
Total: 28.25 tall (with cap) x 20.75” wide (with brackets)
Core: 22.38" tall x 18" wide x x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.38" thick
Tubes: 0.63" thick

Bracket Mounted: located on engine face of radiator

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
13lb. Radiator Cap included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
