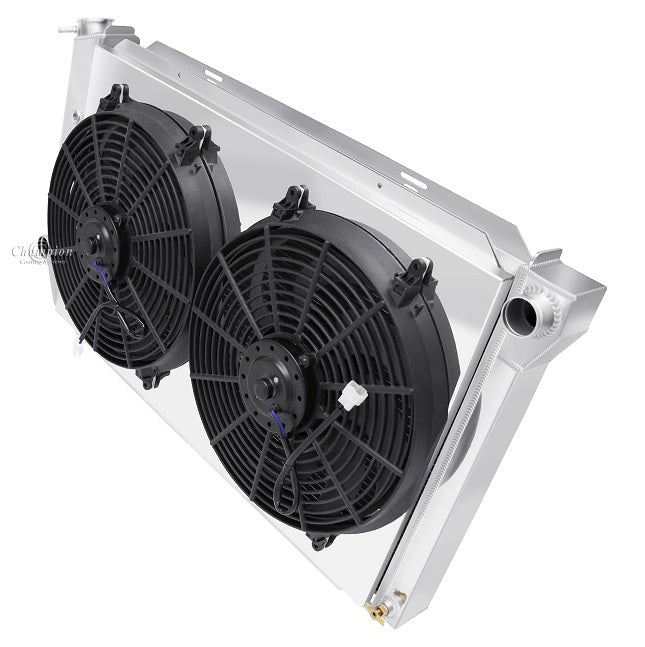

EC390-390FS14 2 Row Combo

All Aluminum Champion Radiator

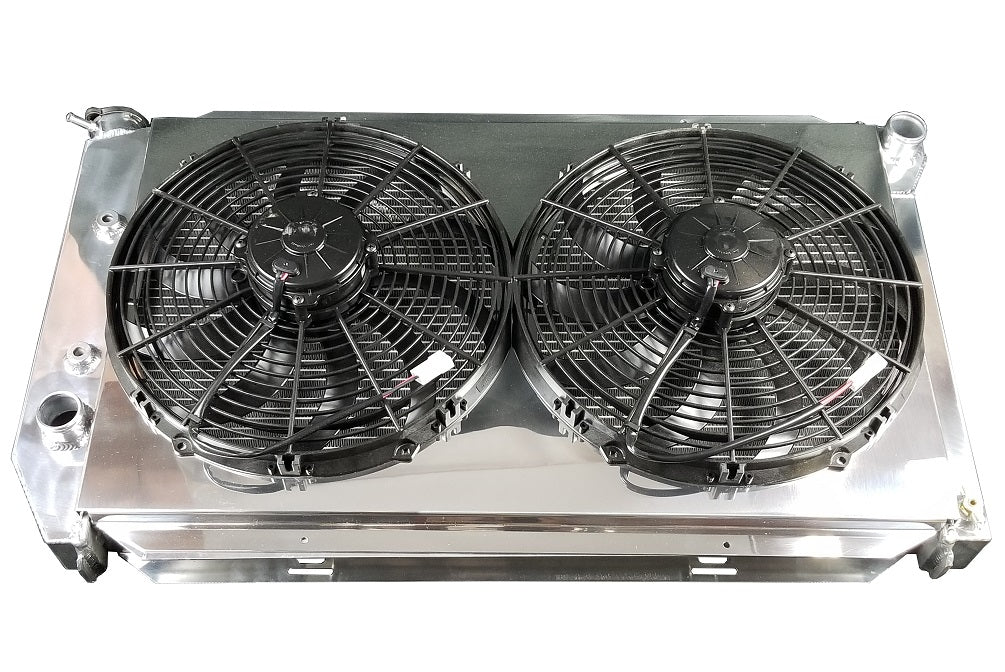

Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 5.5" to fan motor
2-Row | Cools up to 450hp

Radiator Dimensions:
Total: 19.5" tall (with cap) x 34" wide
Core: 16.5" tall x 28" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
