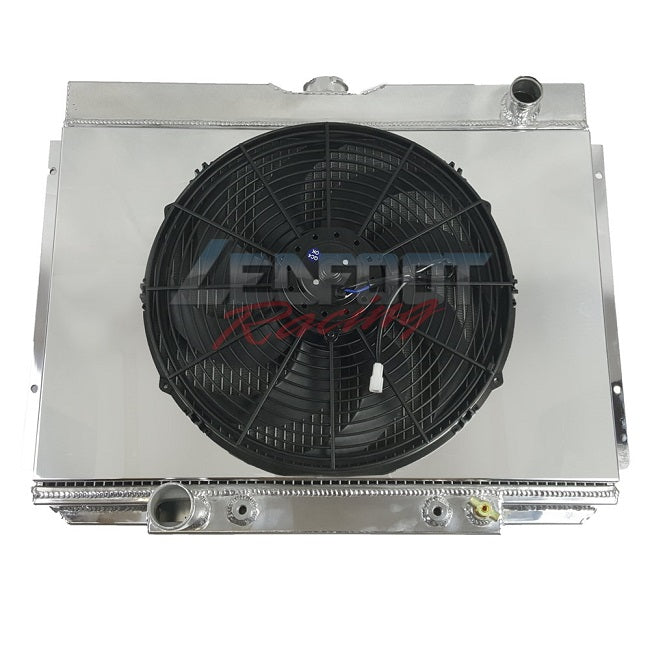

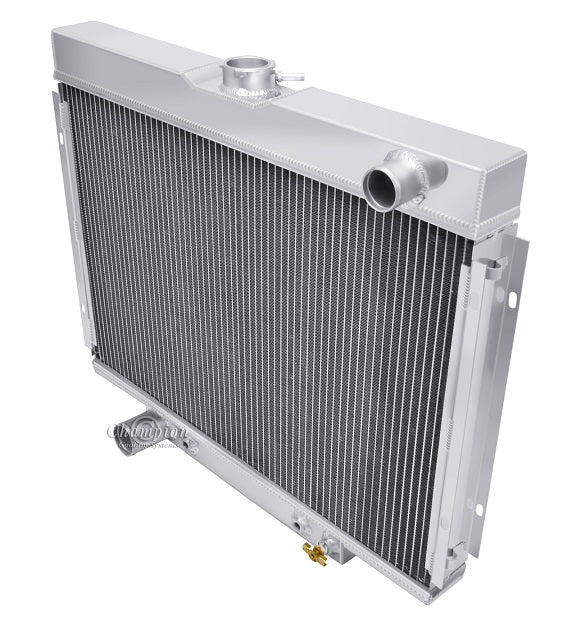

EC379-379FS16SP 2 Row Combo

Champion Aluminum Radiator Plus
Shroud and SPAL-1516 Medium Profile 16" Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | Cools 400hp

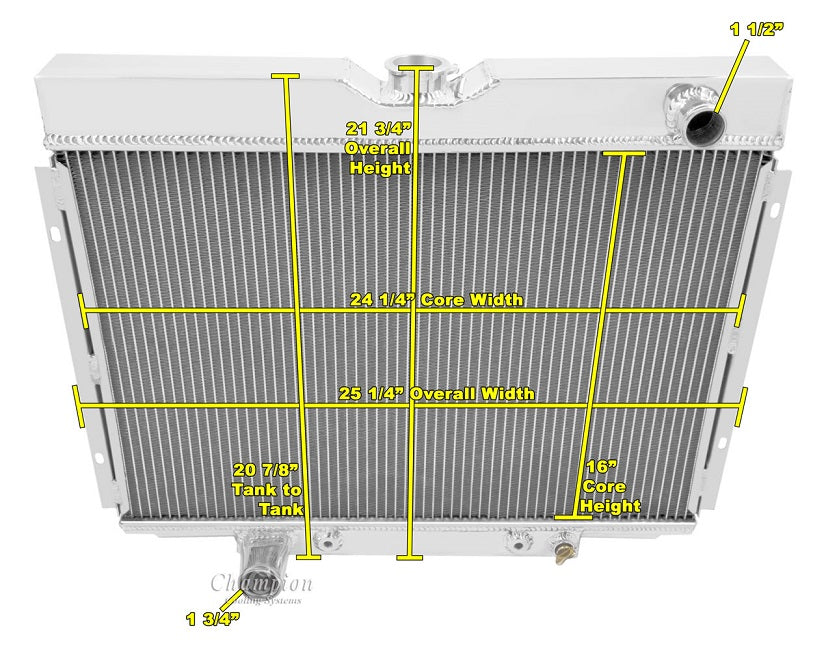

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.25" wide (with brackets) x 1.75" thick
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.25" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
