Description

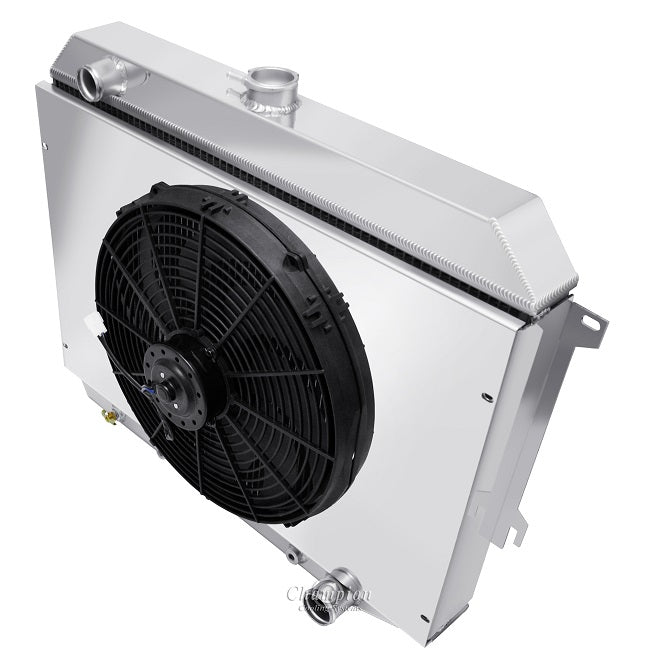

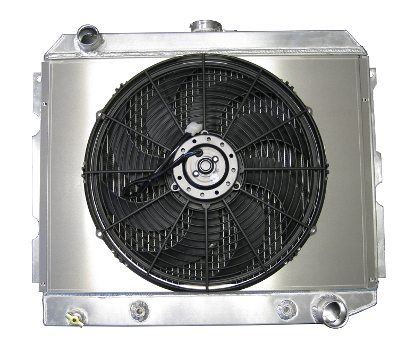

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
2-Row Core | Cools 400hp

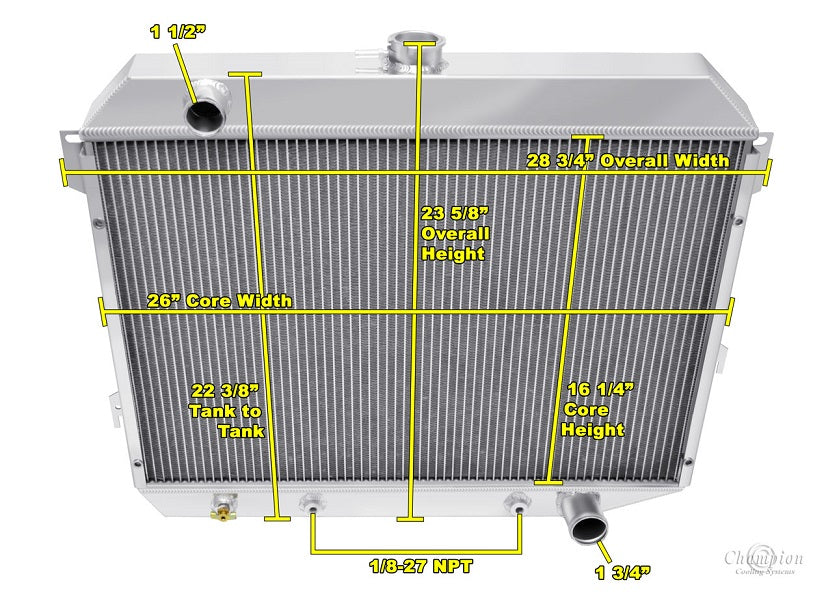

Radiator Dimensions:
Total: 22.5" tall (23.63" with Cap) x 29" wide (including brackets)
Core: 16.25" tall x 26” wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" Thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included
