EC374 2 Row

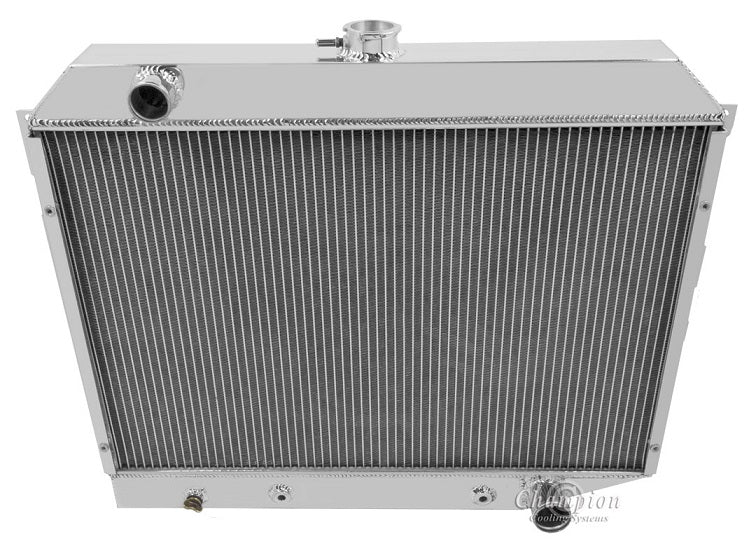

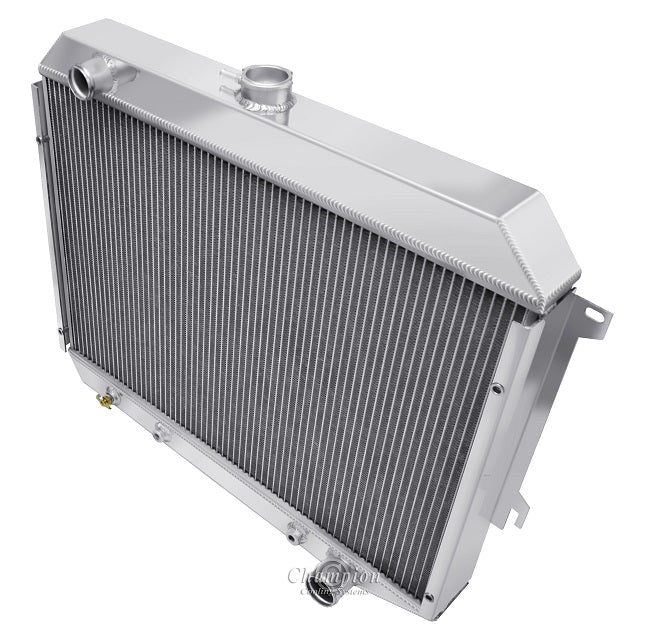

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

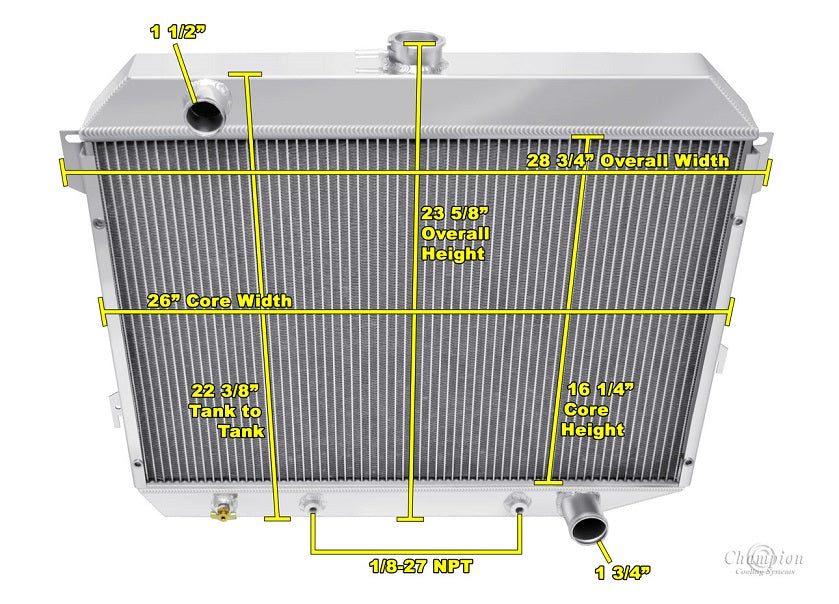

Radiator Dimensions:
Total: 22.5" tall (23.63" with Cap) x 29" wide (including brackets)
Core: 16.25" Tall x 26” wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" Thick
Tubes: 0.75" thick

Bracket Mounted
Check OEM Shroud Brackets for Shroud support

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
