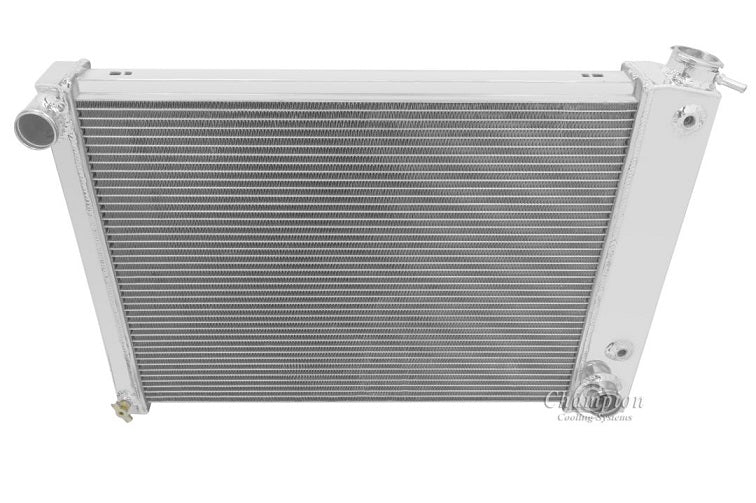

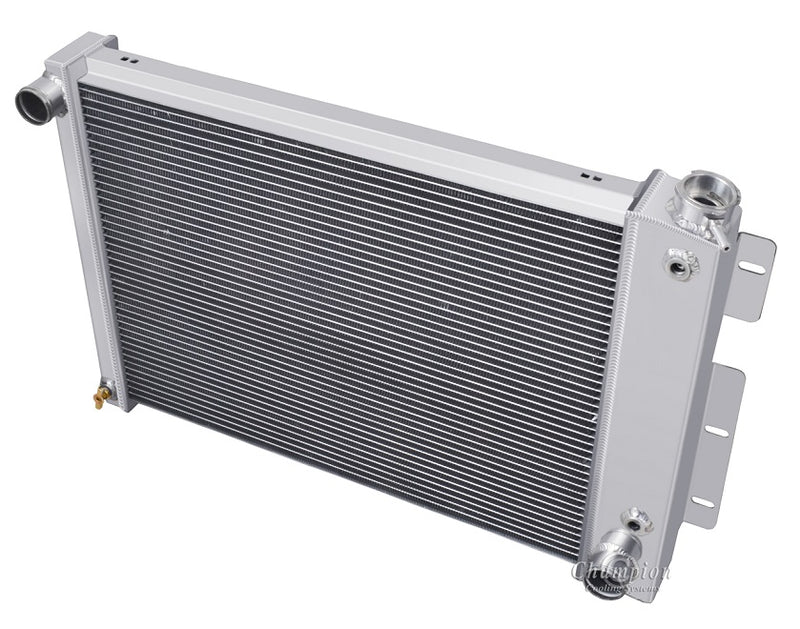

EC370 2 Row 23" core

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

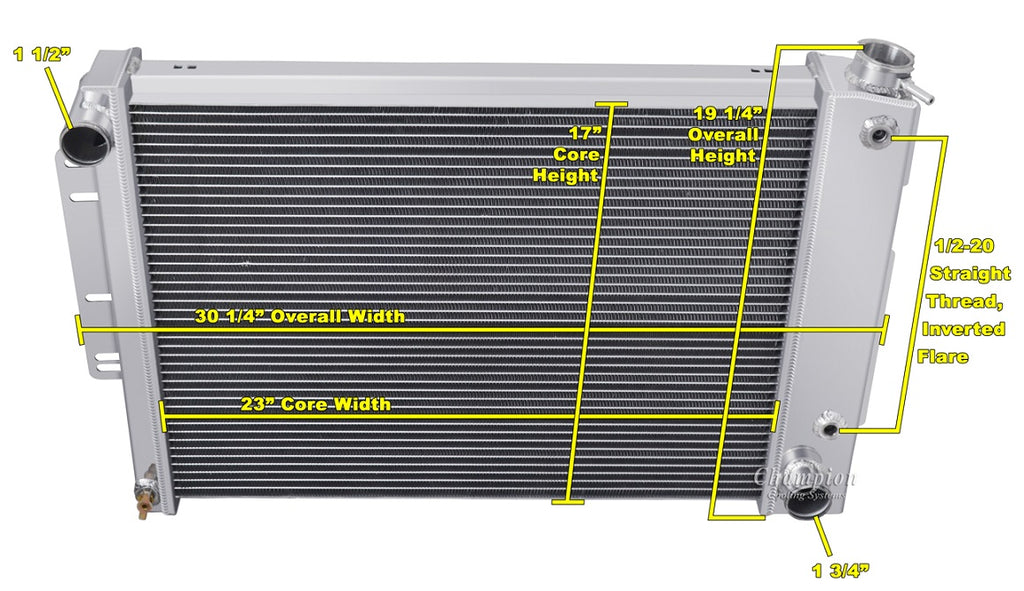

EC370 Radiator Dimensions:
Total: 19.25" tall (19.5" with cap) x 30.25"" wide (including brackets)
Core: 17" tall x 23" wide x 1.75" thick
Tanks: 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud for One 16" or 2-12" Electric fans is also available (sold separatly)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
