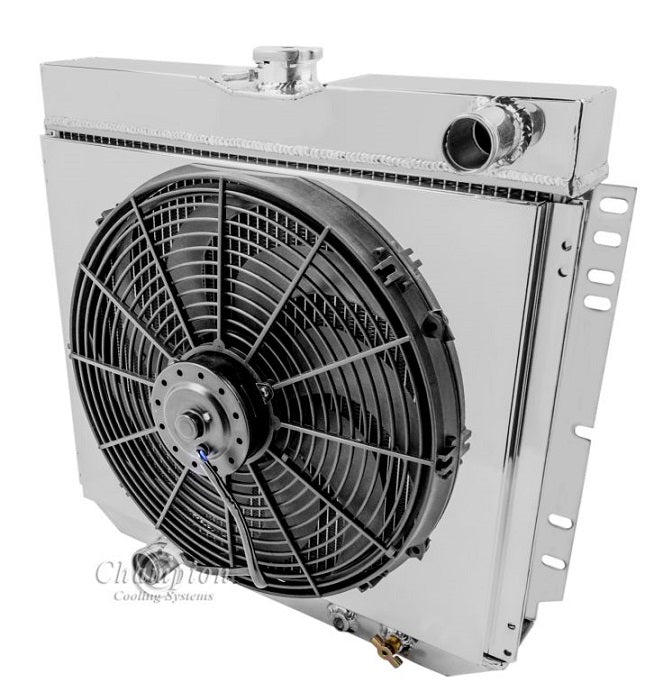

EC339-339FS16SP 2 Row Combo

Champion All Aluminum Radiator Plus

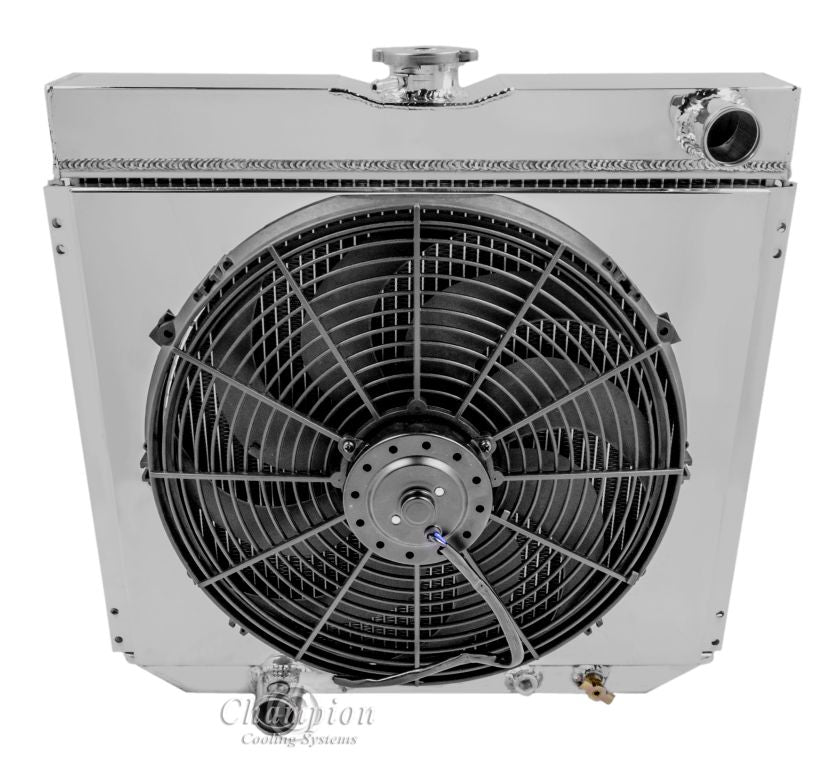

Shroud and 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | Cools 400hp

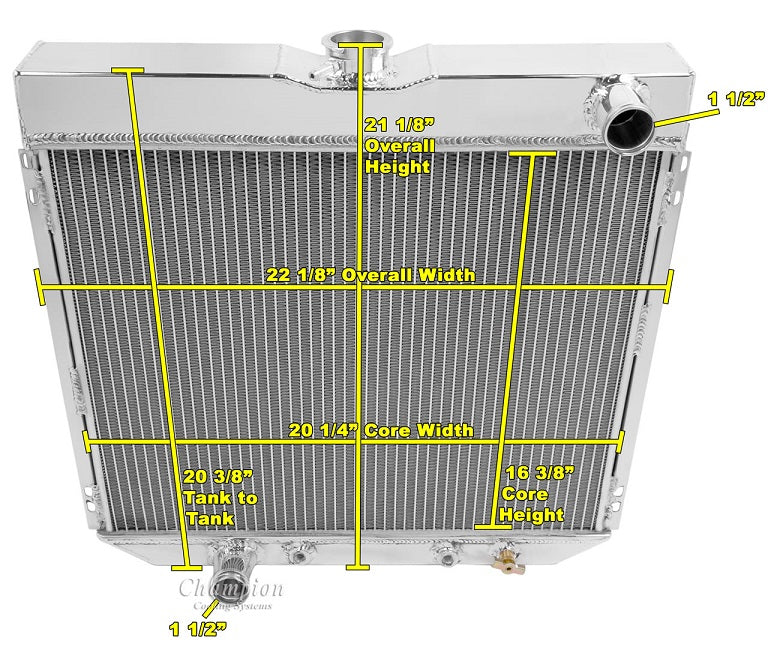

EC339 Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.13" wide (including brackets)
Core: 16.38" tall x 20.25" wide x 1.5" thick
Inlet: 1.5" passenger
Outlet: 1.5" driver
Tanks: 2.38" thick
Tubes: 0.75" thick
Total Thickness: 5." to back of fan

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27npt)
