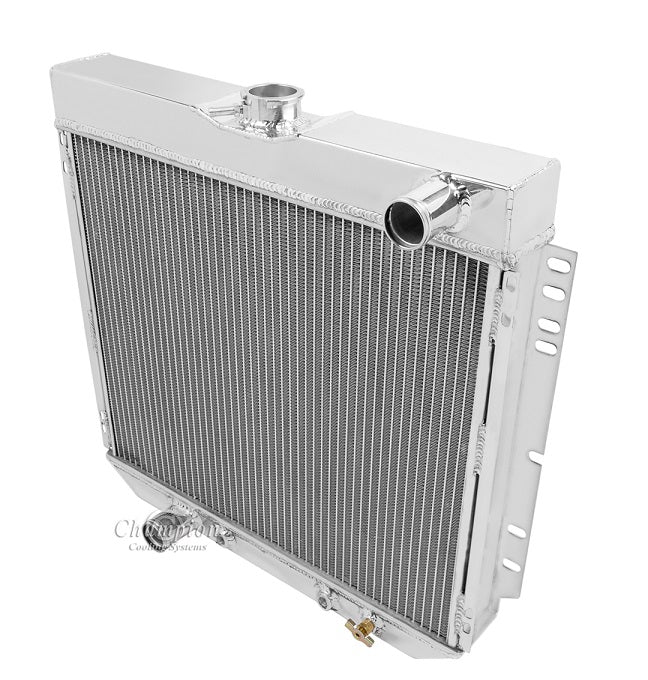

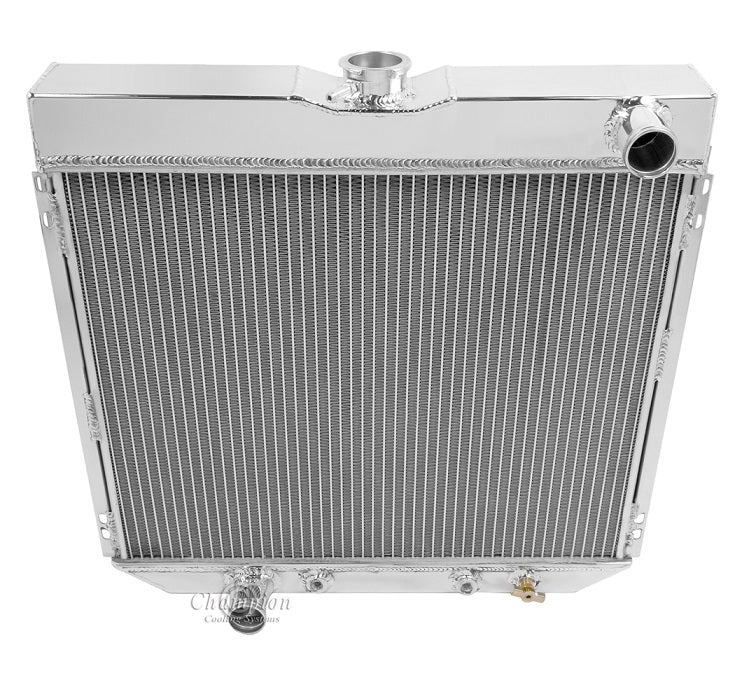

EC339 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 325hp

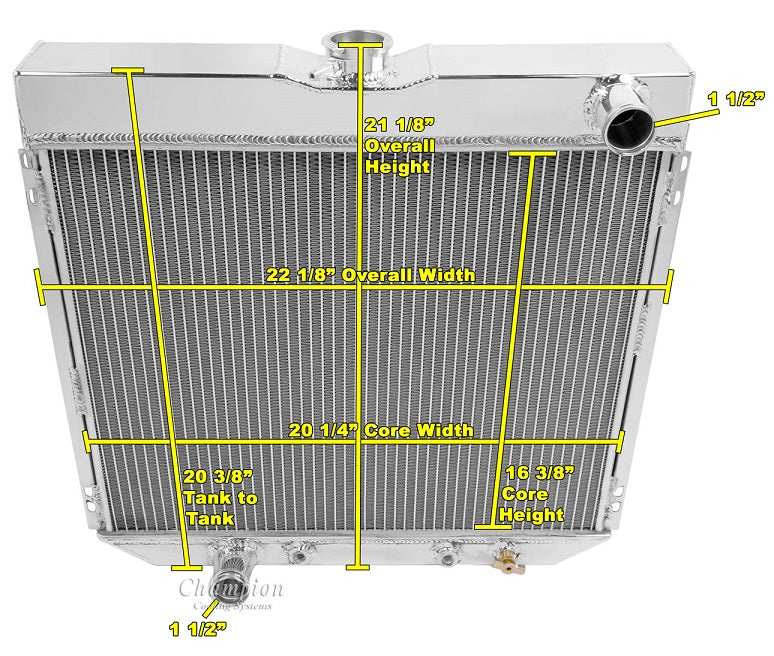

EC339 Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.13" wide (including brackets)
Core: 16.38" tall x 20.25" wide x 1.5" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.38" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
