EC338 2 Row

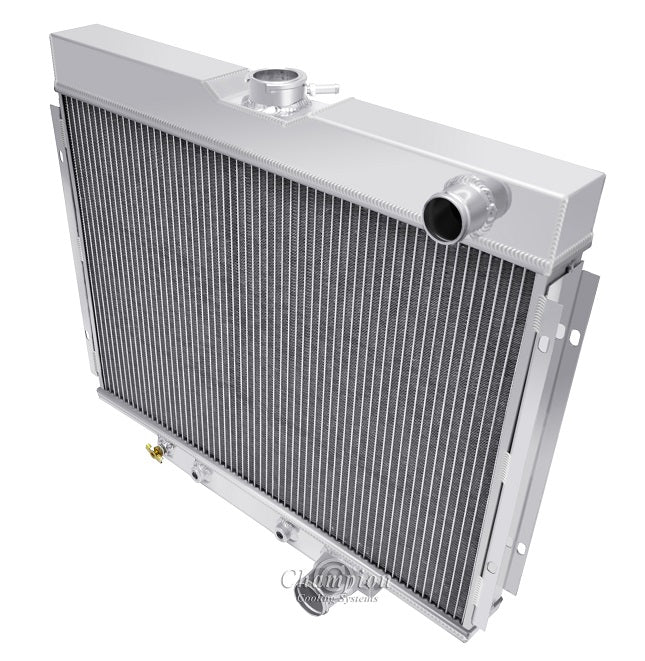

Champion All Aluminum Radiator
2-Row Core

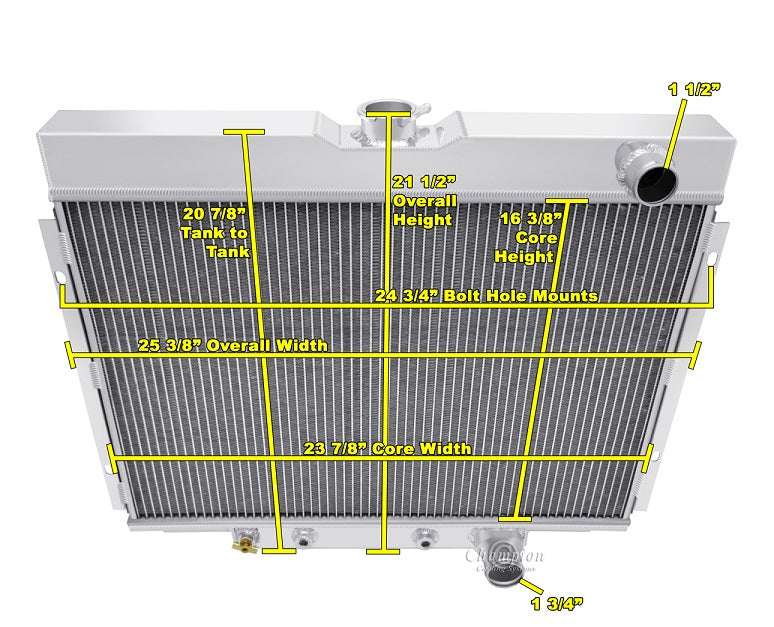

Radiator Dimensions:
Total: 21.75" tall (22" with cap) x 25.38" wide (including brackets)
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle or Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
