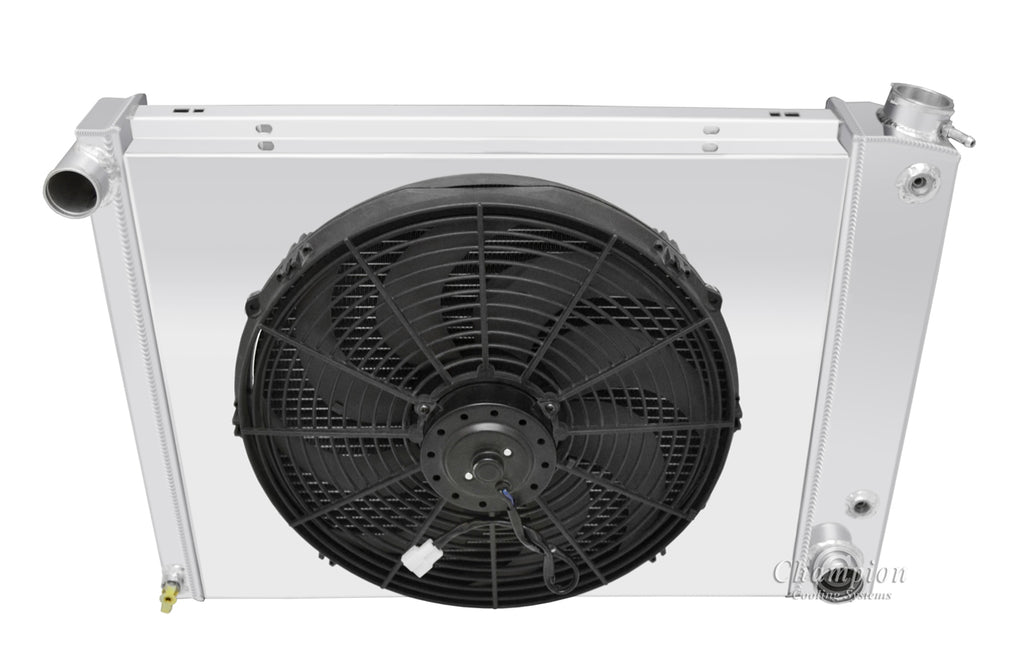

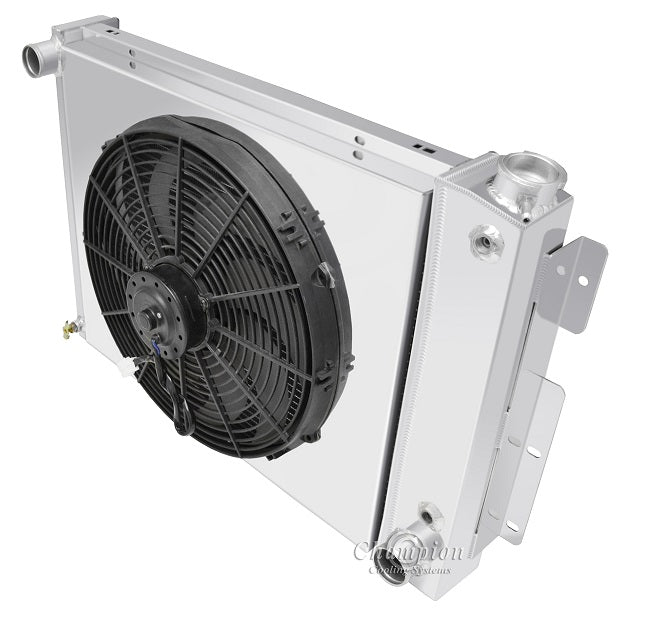

EC337-337FS16 2 Row 21" core

Champion Cooling All Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" Cooling Fan
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
2-Row Core | Cools up to 400hp

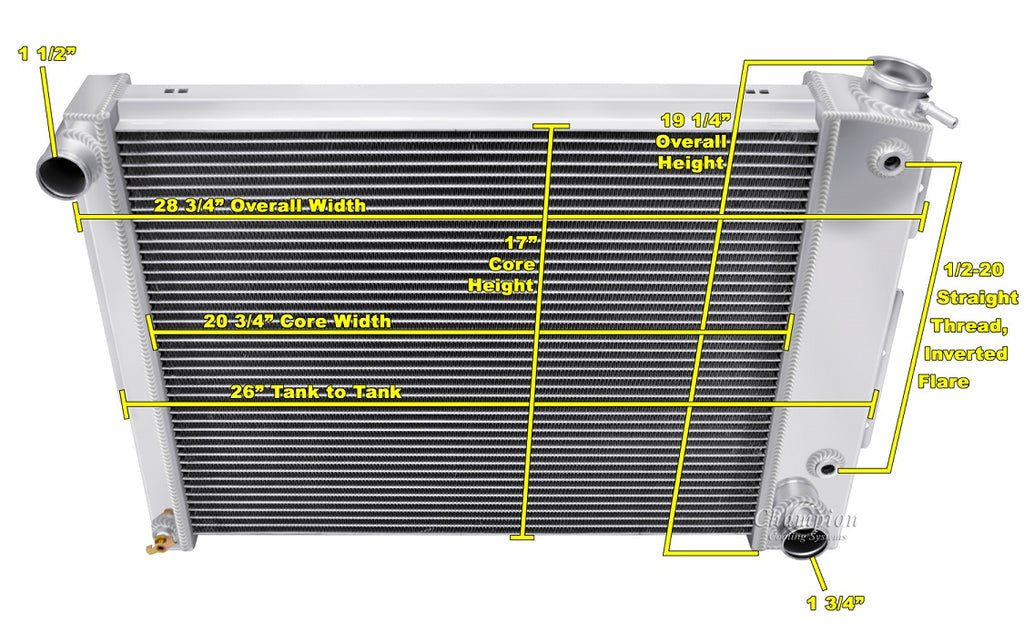

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 28.75" wide (with brackets)
Core: 16.75" tall x 20.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included
