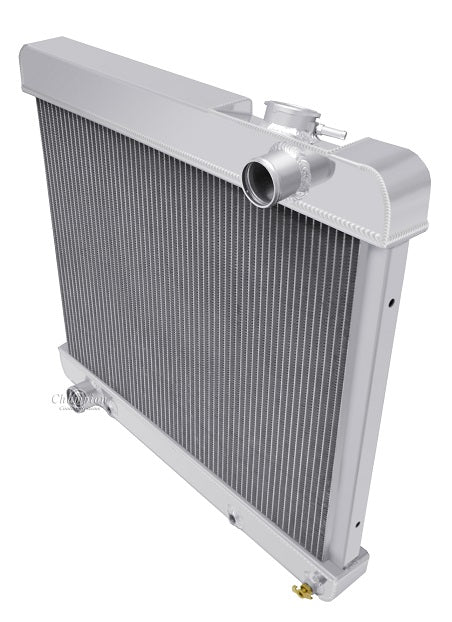

EC3284 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp
Verify Core Height

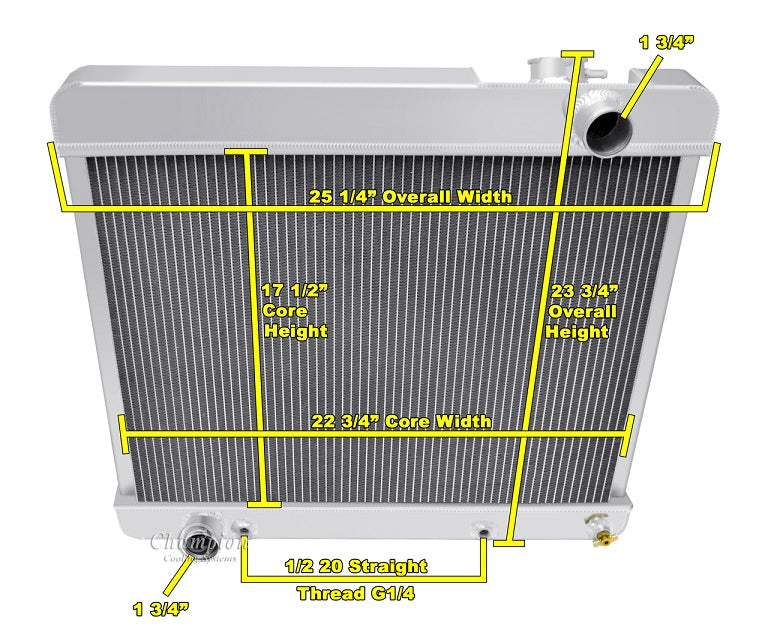

Radiator Dimensions:
Total: 25.25" wide x 22.5" tall (23.5" with cap)
Core: 22.75" wide x 17.38" tall
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: (top) 2 .75" thick (bottom) 2.25" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )

Recommended electric fans (sold separately):
One- 16" fan or Two- 12" electric fans

(1960-1965 Buick Rivieras please confirm the height, sometimes this one is too tall)
