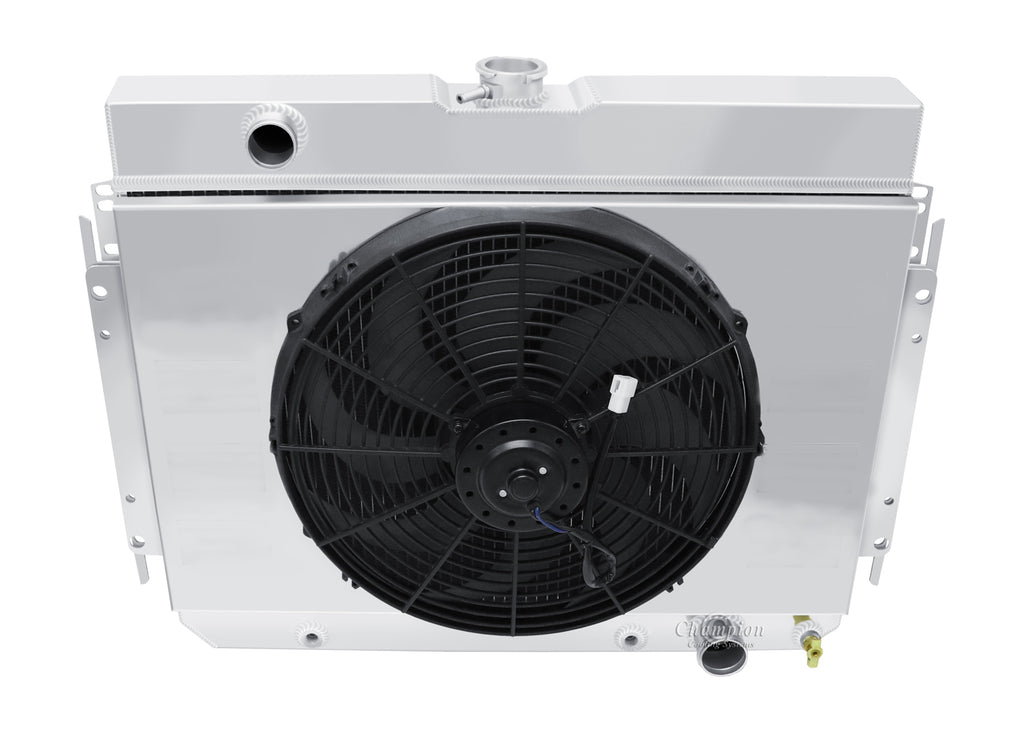

EC289-289FS16 2 Row Combo

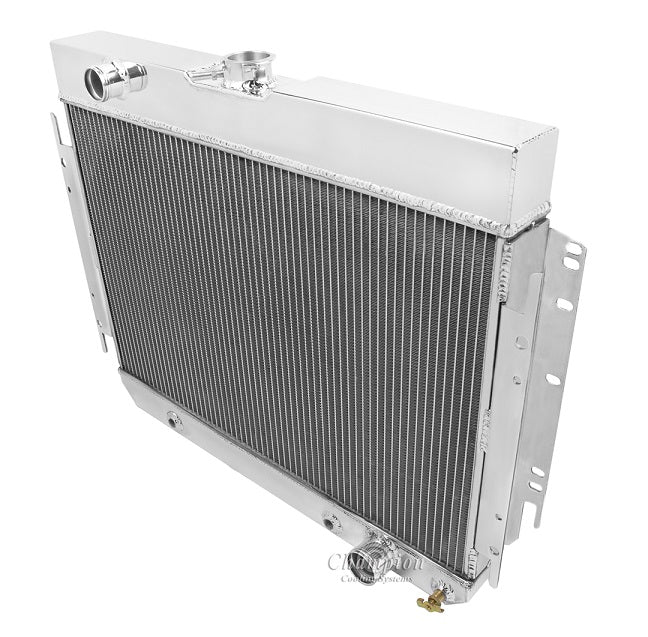

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fans
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2 Row Core | Cools 500hp

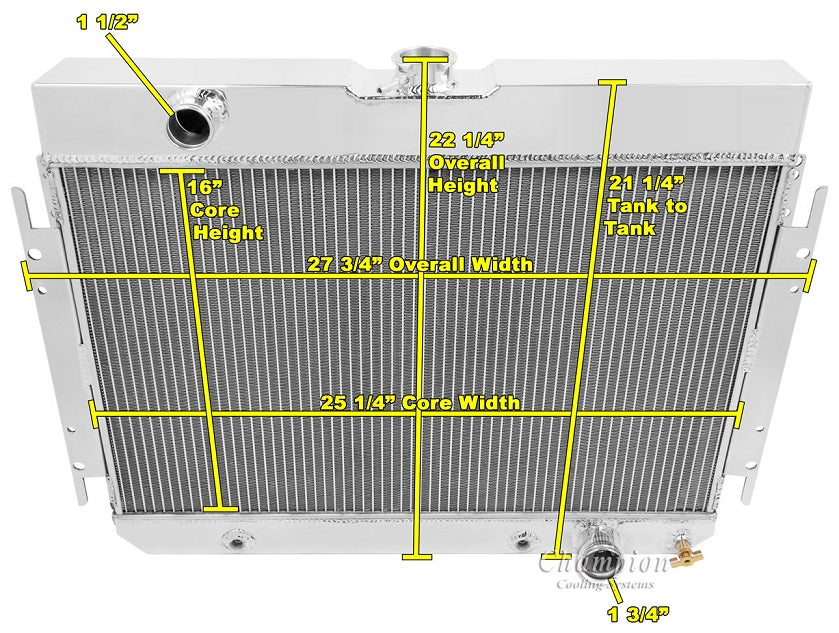

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16 1/8” tall x 25” wide x 2.5" thick
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2 3/4” thick
Tubes: 0.75" thick

Total Thickness: 6.63", Thinner fans available

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

13lb. Radiator Cap included
