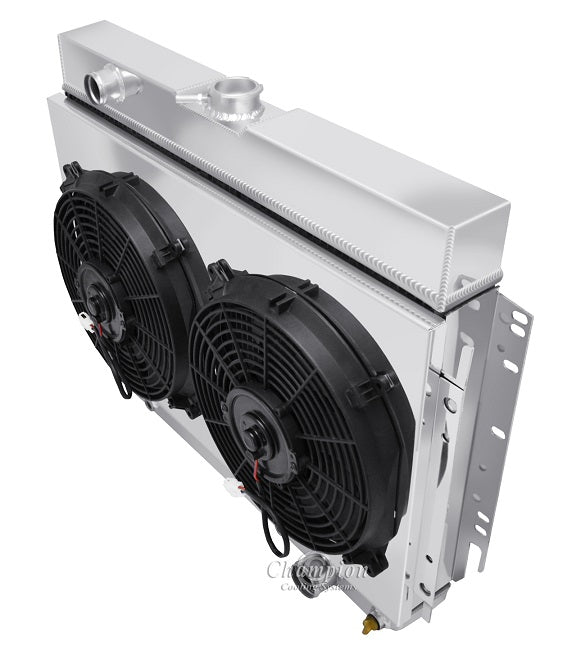

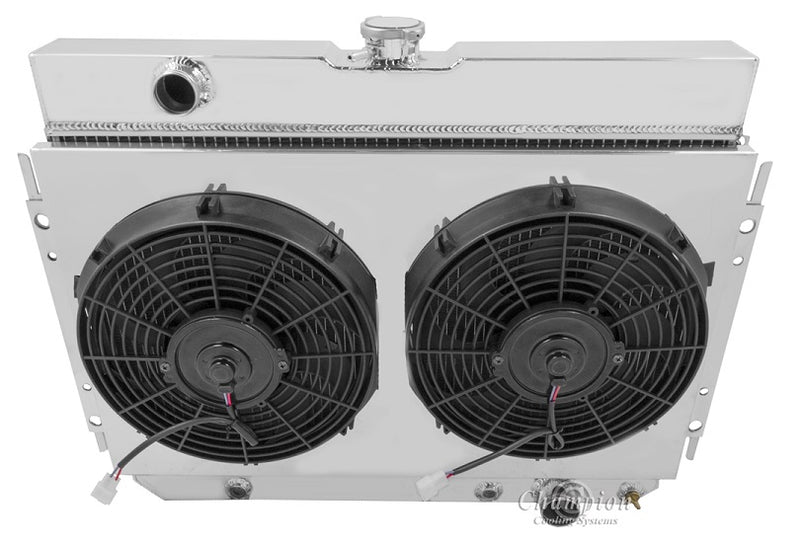

EC289-289FS12SP 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & Two 12" SPAL 1522 Fans
2 Row Core | Cools 500hp

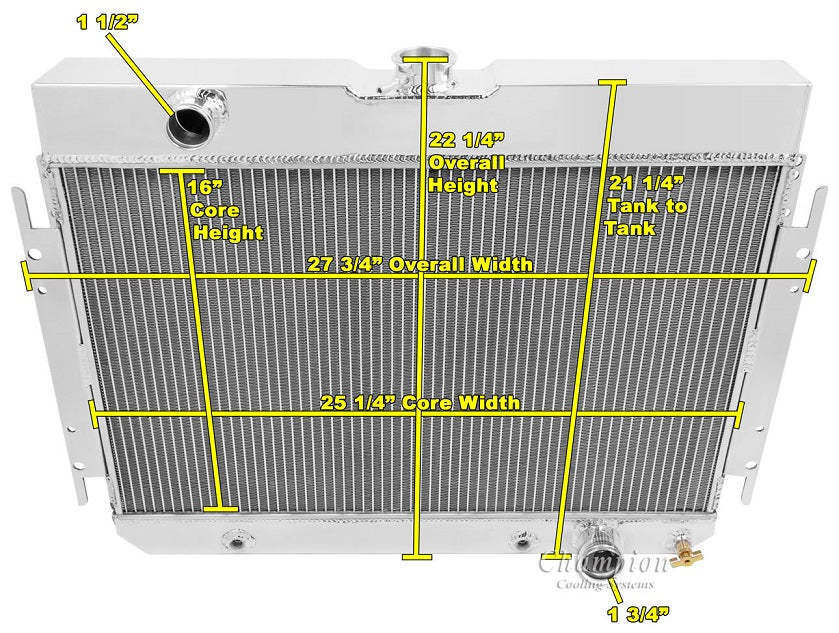

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.5" deep
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.38" at Center

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
