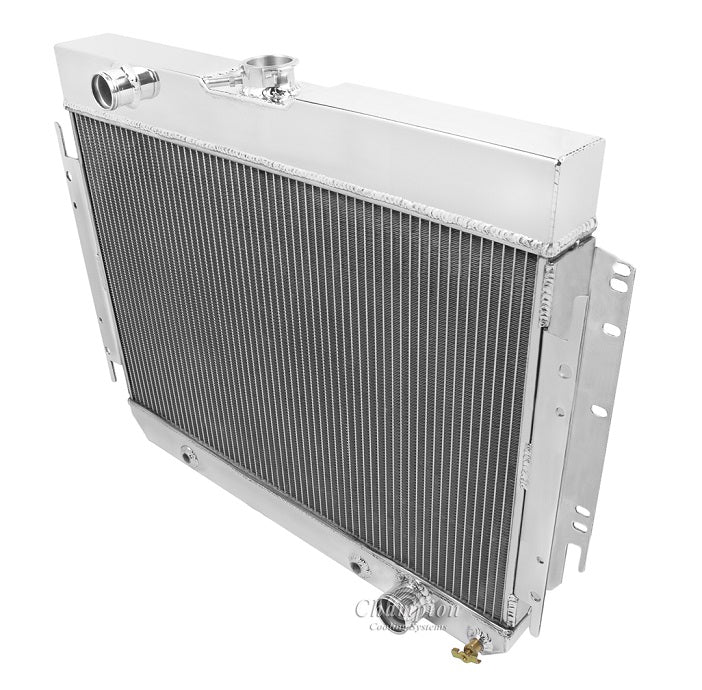

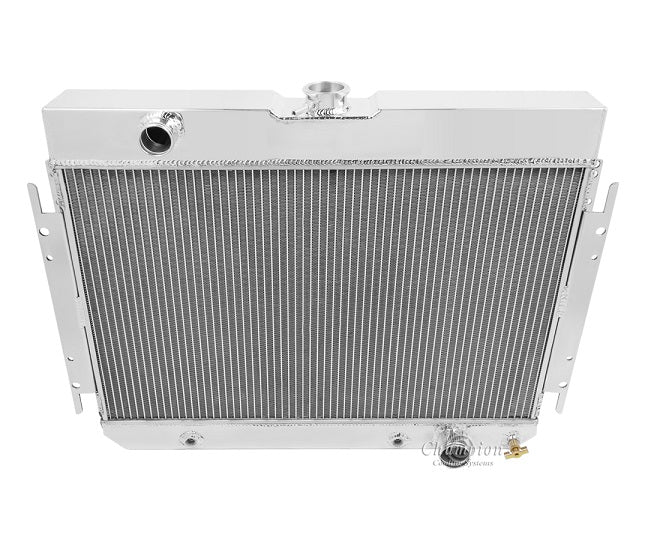

EC289 2 Row

Champion All Aluminum Radiator
2-Row Core| Cools up to 500hp

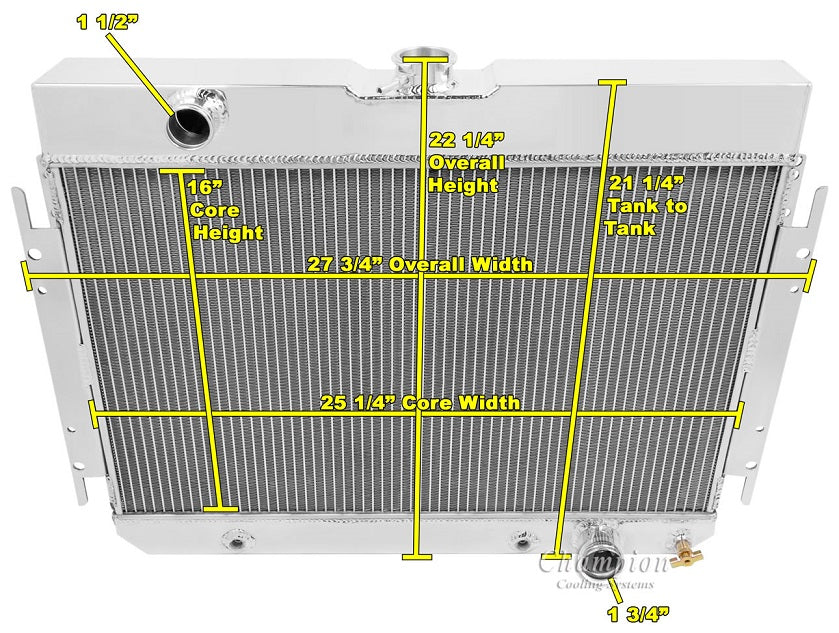

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13” tall x 25” wide x 1.75" thick
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.75” thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum shroud available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size. (sold separately)
