EC2829FD 2 Row

All Aluminum Champion Radiator
Ford / Mopar Inlet and outlet set up
2 Row Core | Cools up to 800hp

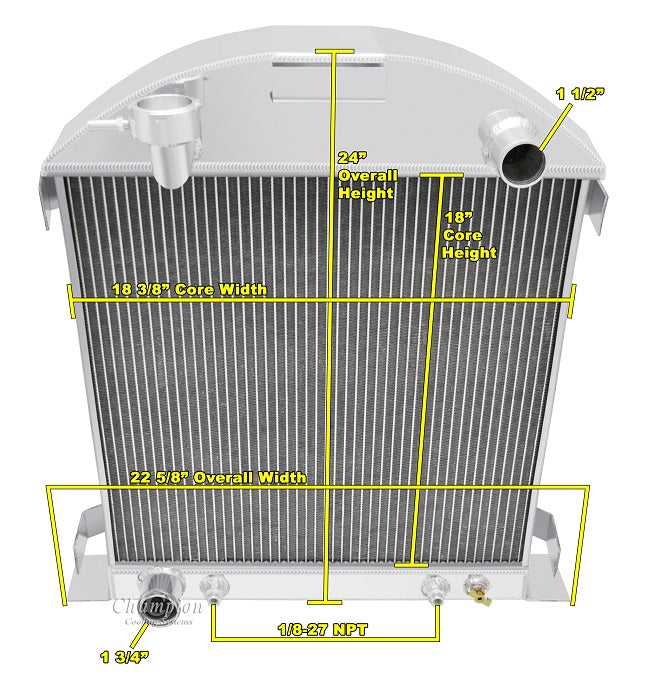

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 4.25" thick (top) 3” thick (bottom)
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8" 27NPT)

When using electric fans:
One 16" fan recommended for this core size
