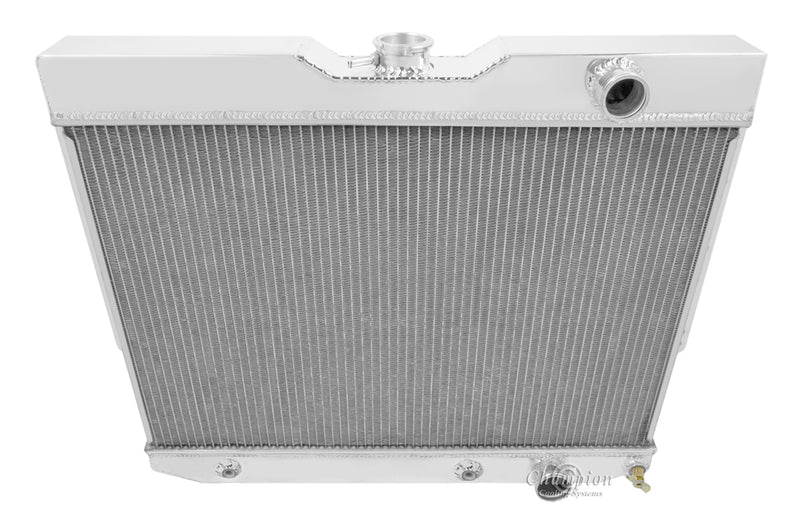

EC281 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp
Note: Impala's sometimes need a notched lower tank to miss the optional
larger steering box. Call for a quote to modify this radiator if needed.
DOES NOT WORK WITH GMC 605 STEERING BOX

EC281 Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 28" wide (including brackets)
Core: 16.5" tall x 24.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Custom Ledfoot Racing Aluminum Shroud available (sold separately)

When using electric fans:
One 16" Electric Cooling Fan or two 12" Electric Cooling Fans recommended for this core size (sold separately)
