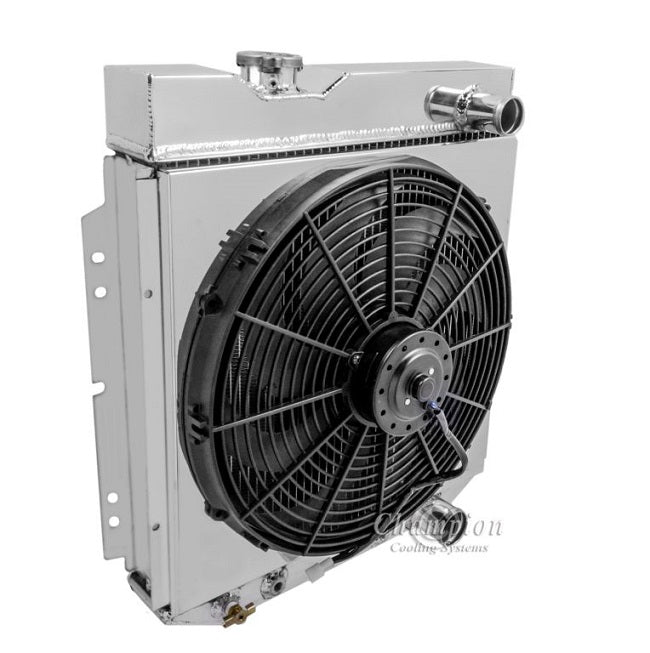

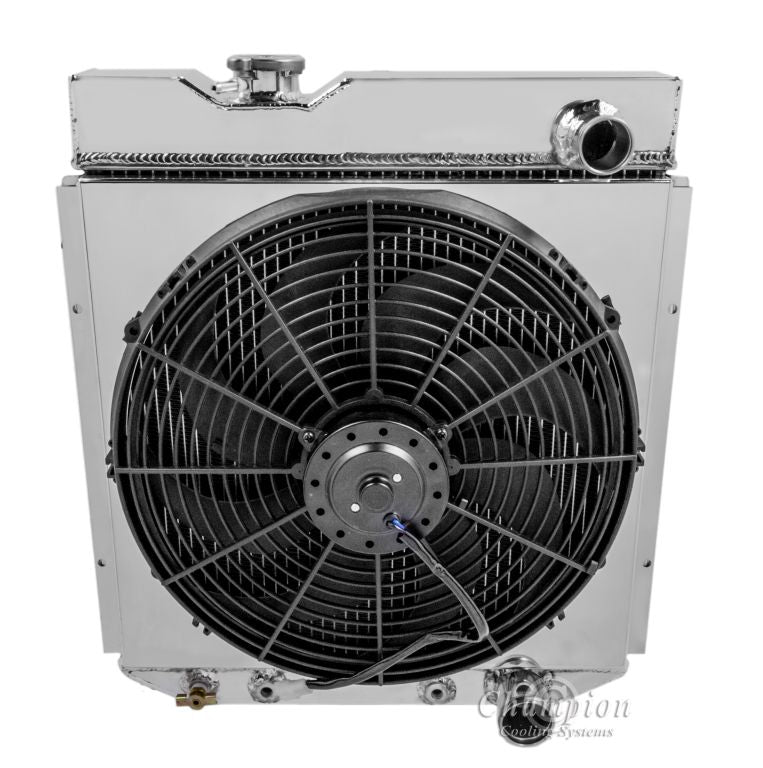

EC259-259FS16SP 2 Row Combo

Champion All Aluminum Radiator PLUS
Shroud & 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | Cools up to 350hp

Radiator Dimension:
Total: 19.63" wide (including Brackets) x 21" tall (21.5" with cap)
Core: 17.25" wide x 16.38" tall x 1.75" thick
Inlet: 1.5”
Outlet: 1.75”
Tanks: 2.5” thick
Tubes: 0.75" thick
Total Thickness: 5.75" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
