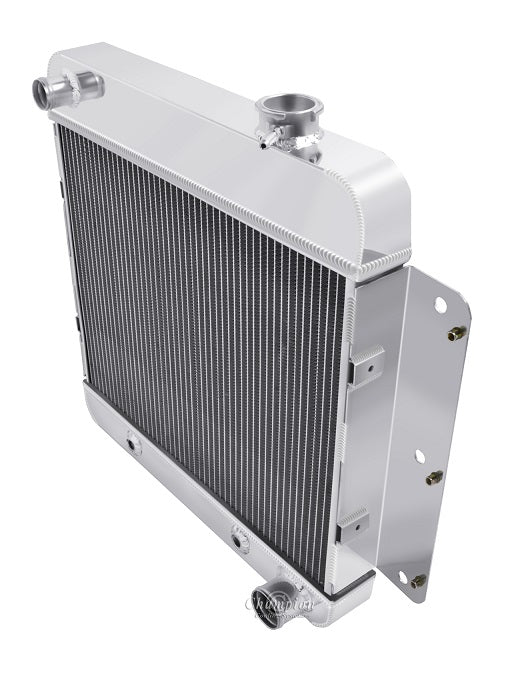

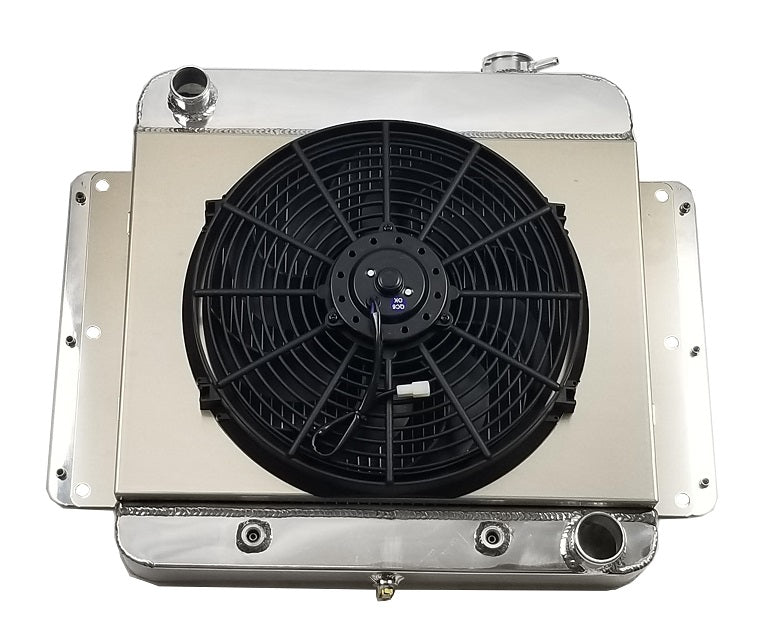

EC255-6-255FS14C 2 Row Combo

Champion All Aluminum Radiator Plus
Shroud and 14" Pro-Series Fan
2-Row Core | Cools up to 400hp

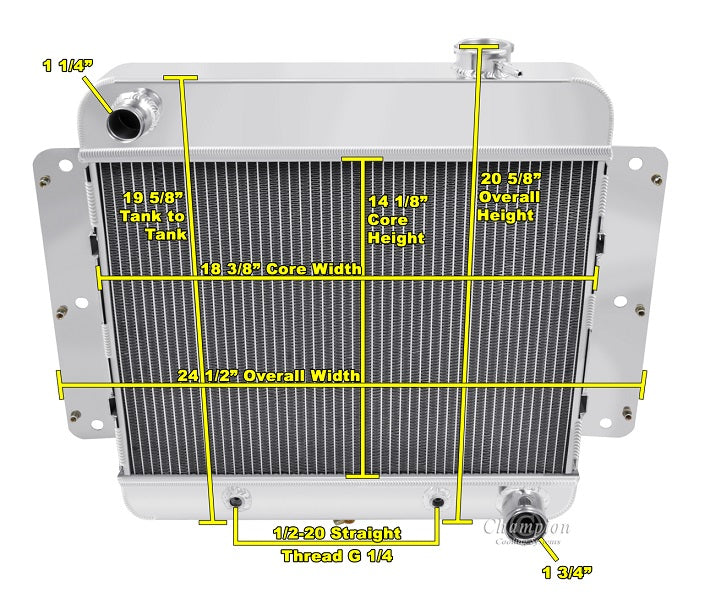

EC255-6 Radiator Dimensions:
Total: 22.13" tall (incl petcock & cap) (19.75 Tank to Tank) x 24.5" wide (w/ brackets)
Core: 14.13" tall x 18.13" wide x 1" thick
Inlet: 1.25" driver side
Outlet: 1.75" passenger side
Tanks: 2." thick
Tubes: 0.63" thick

Total Thickness: 5.5" to back of fan
(Call for thinner fan)

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD)
