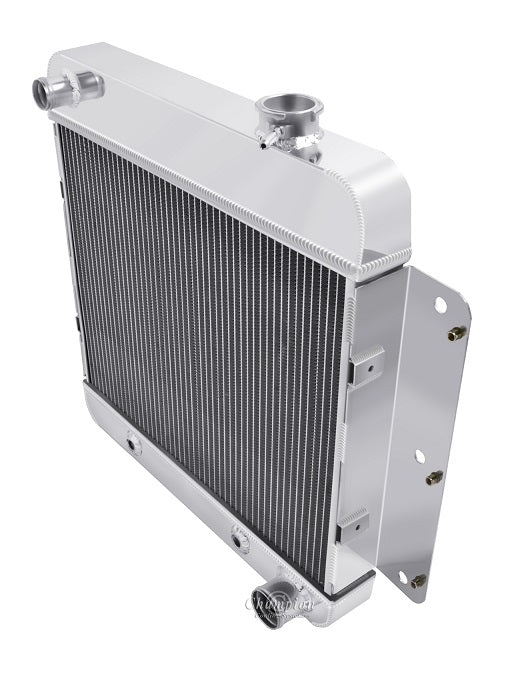

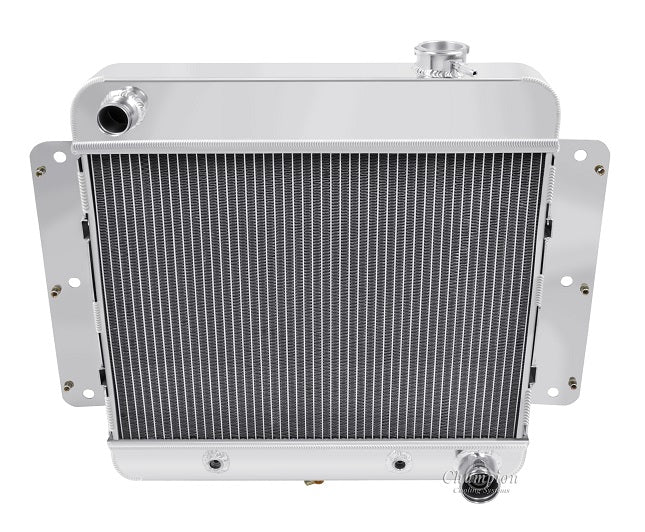

EC255-6 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp
(6 Cylinder Engines only)

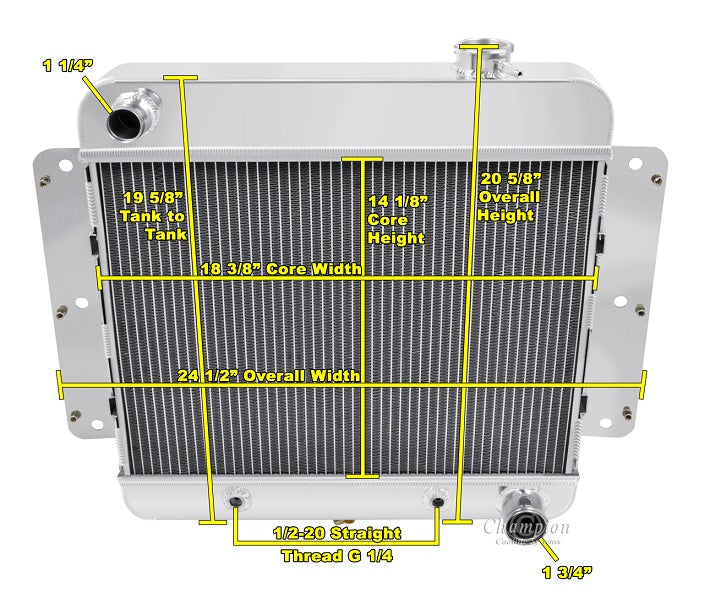

EC255-6 Radiator Dimensions:
Total: 22.13" tall(including petcock & cap) (19.75 Tank to Tank) x 24.5" wide (including brackets)
Core: 14.13" tall x 18.13" wide x 1.5" thick
Inlet: 1.25" driver side
Outlet: 1.75" passenger side
Tanks: 1.93" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD)

When using electric fans:
One 14" Electric fan recommended for this core size (sold separately)
