EC251-6-BLK-251FS16SP0400 2 Row for L6 (Black)

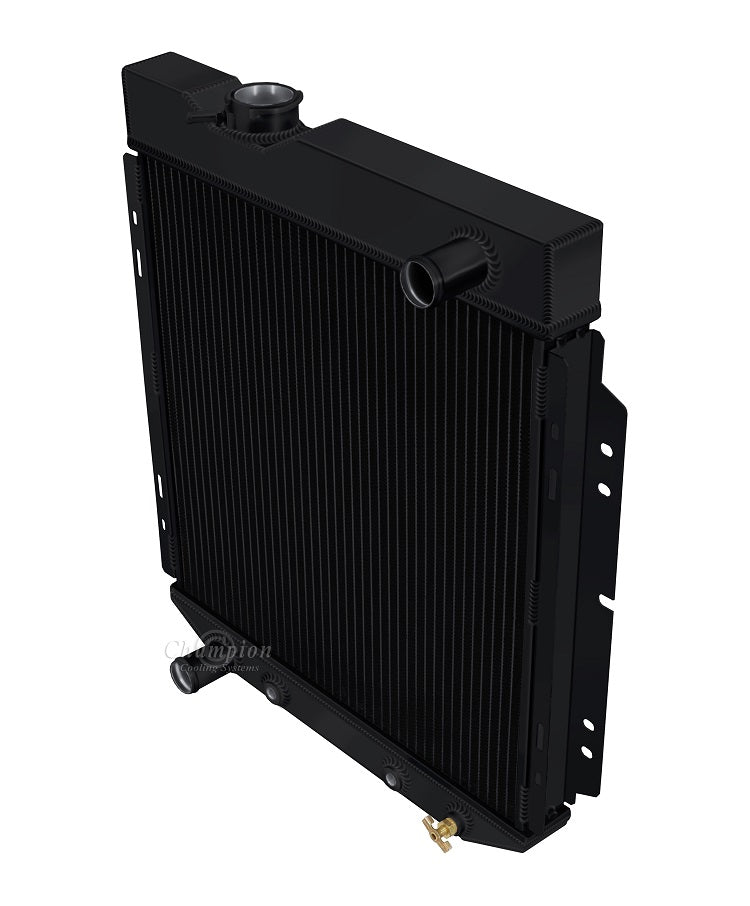

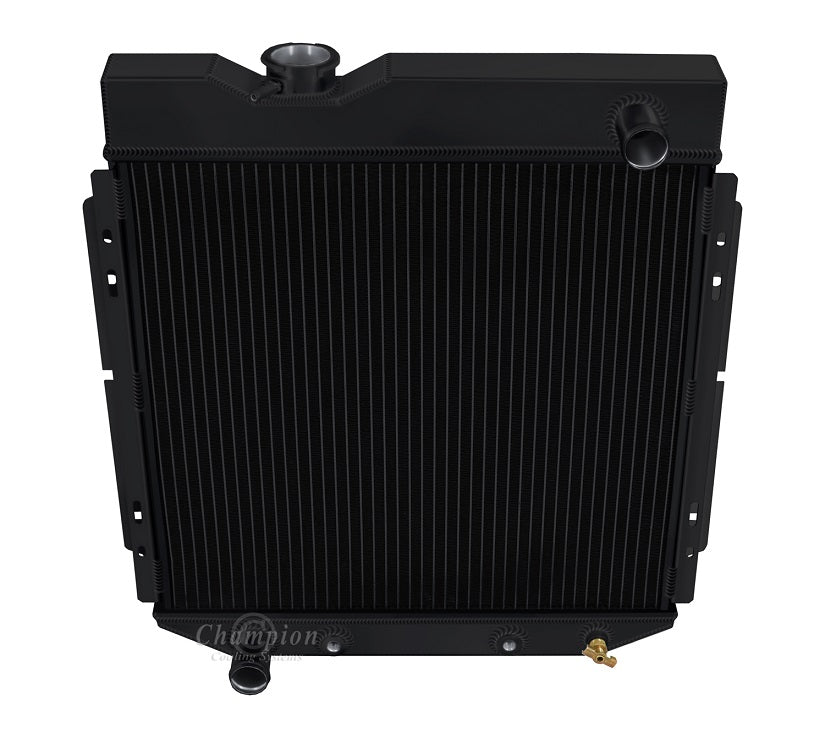

Champion All Aluminum Radiator (Black) Plus

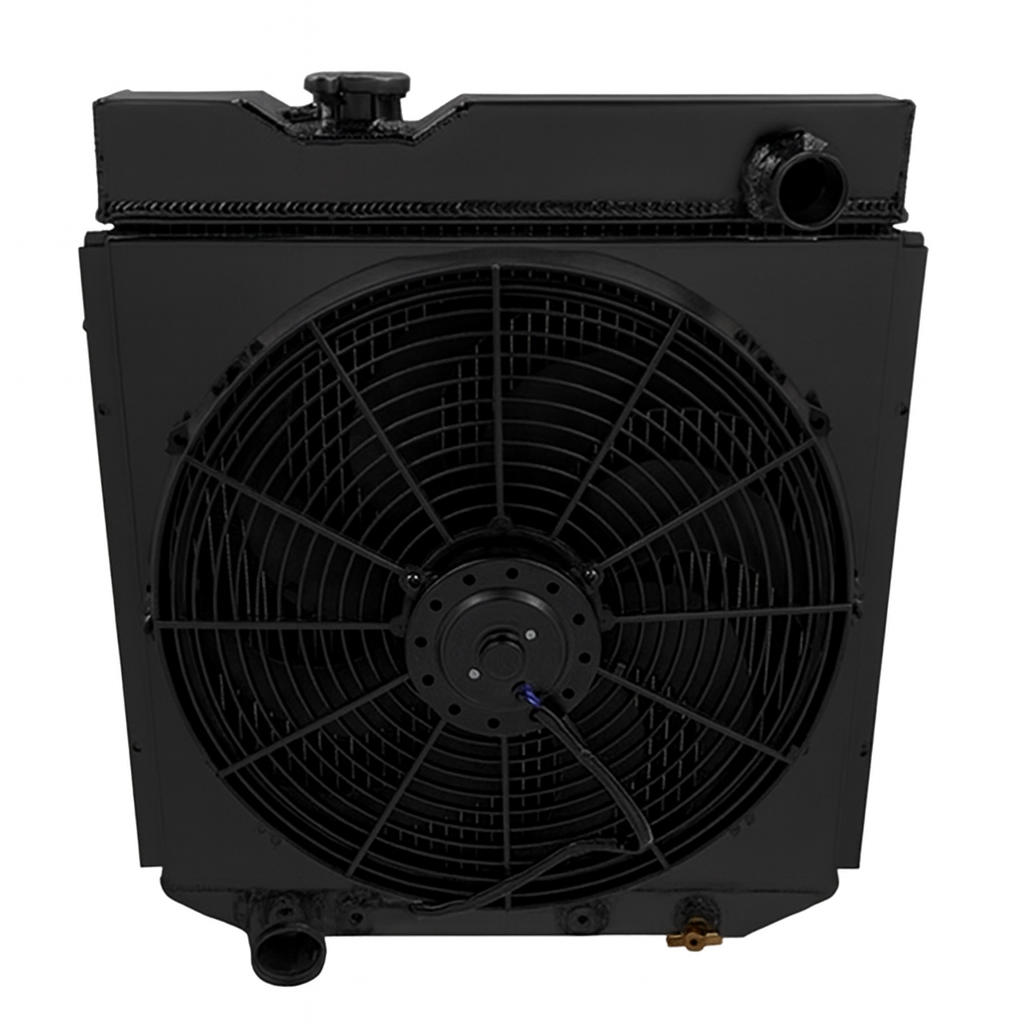

Shroud & SPAL-0400 Low Profile 16" fan
2-Row Core | Cools up to 350p

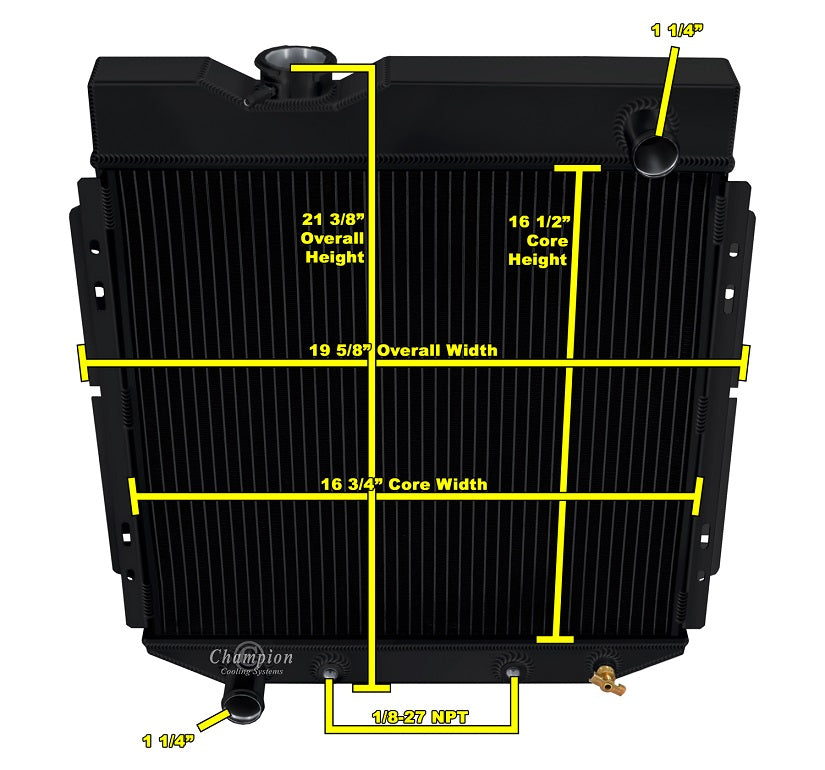

Radiator Dimensions:
Total: 21.75" tall x 19.63 wide (with brackets)
Core: 16.38" tall x 17.25" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.25" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 4" to back of fan

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
