Description

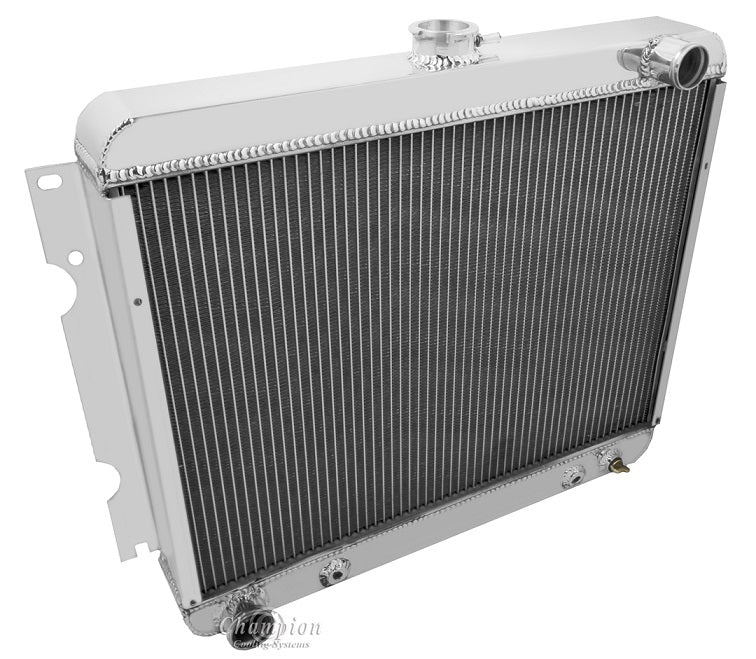

Champion All Aluminum Radiator Plus

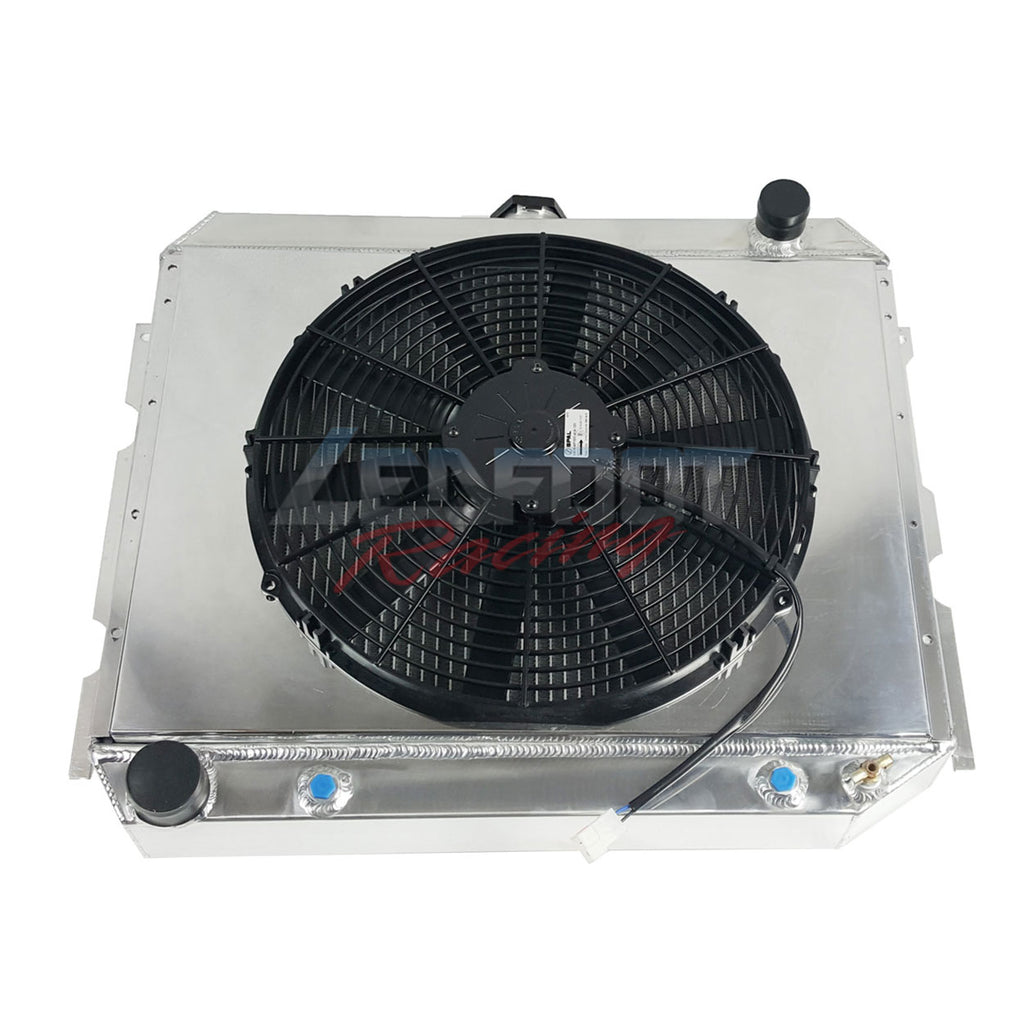

Ledfoot Racing Shroud & SPAL-1516 Medium Profile 16" Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | 400hp Rating

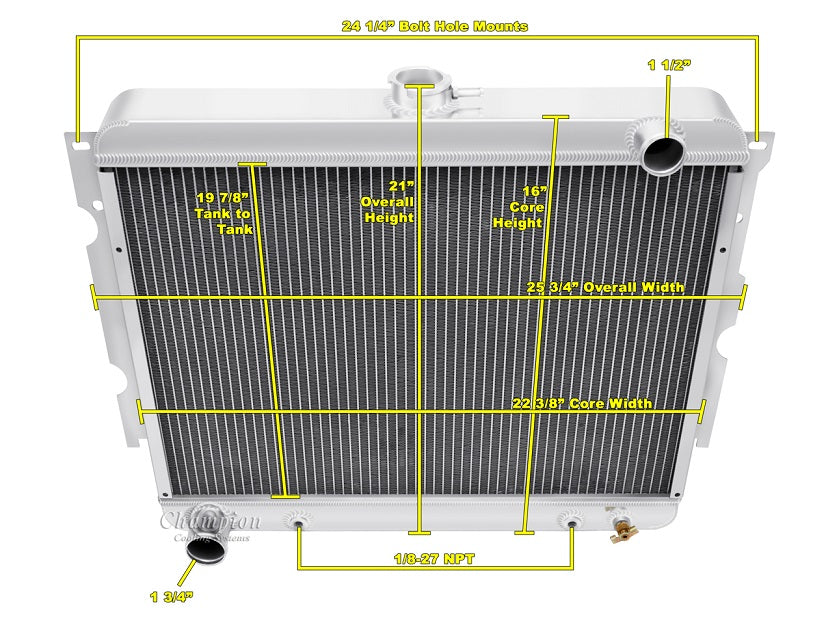

Radiator Dimensions:
Total: 21.25" x 25.75" (with brackets)
Core: 16.38" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" Driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 5.25" to back of fan
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Note: This radiator is shorter than OEM
(To fit Multiple Mopar cars)
Ledfoot Racing Shroud & SPAL-1516 Medium Profile 16" Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | 400hp Rating
Radiator Dimensions:
Total: 21.25" x 25.75" (with brackets)
Core: 16.38" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" Driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 5.25" to back of fan
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Note: This radiator is shorter than OEM
(To fit Multiple Mopar cars)
