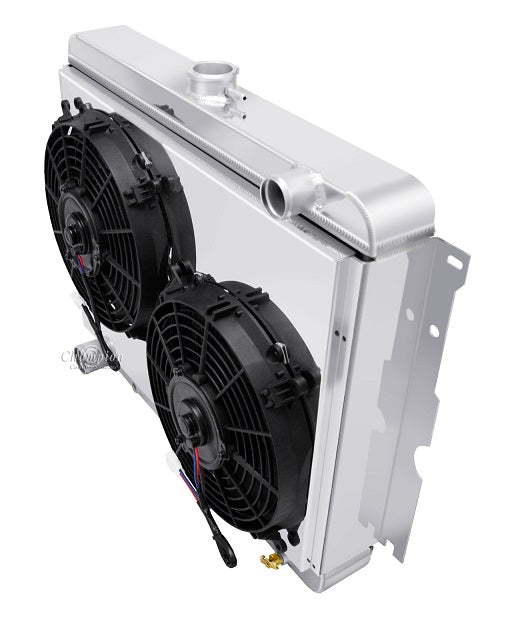

EC2375-2375FS10SP 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud with two 10" SPAL-0435 Fans
Verify clearance for electric fan
Total thickness: 5.5" to fan motor
2-Row Core | 400hp Rating

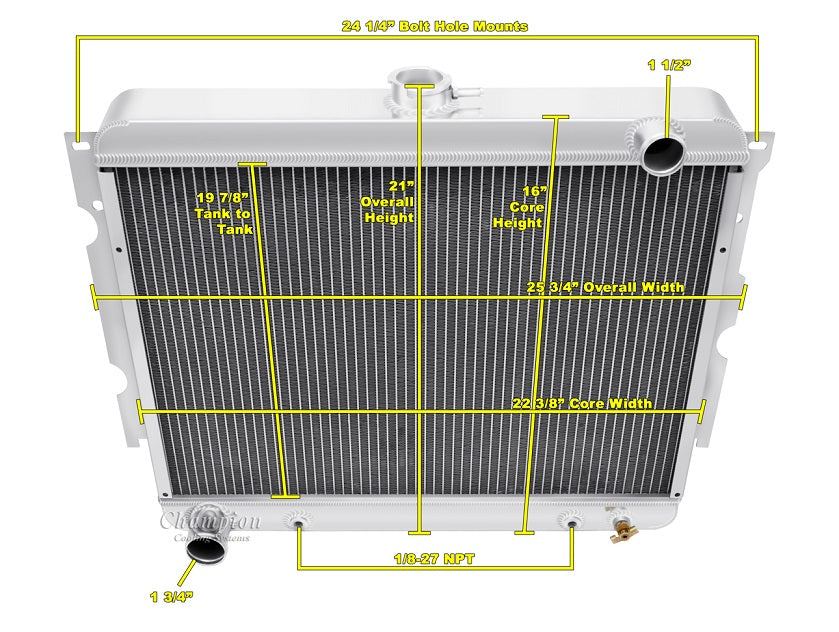

Radiator Dimensions:
Total: 21.25" x 25.75" (with brackets)
Core: 16.38" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" Driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
