Description

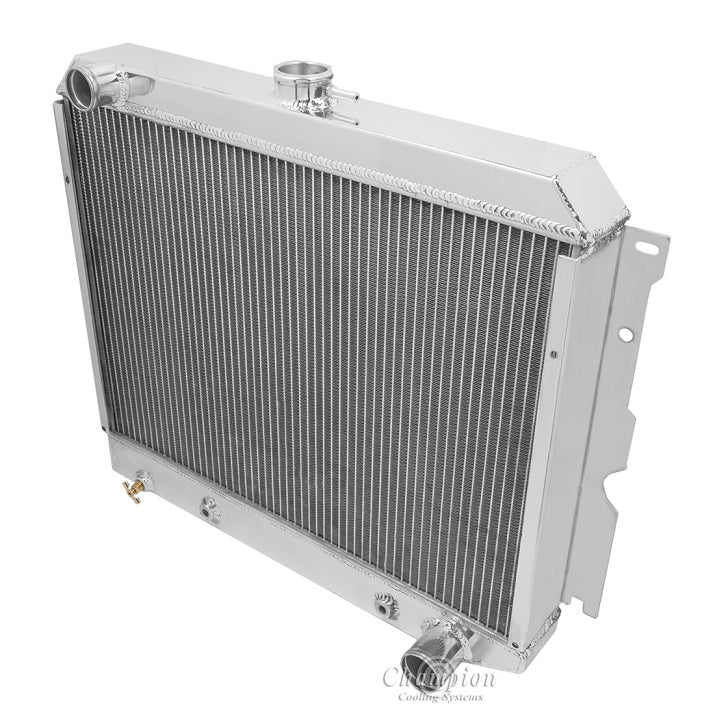

Champion All Aluminum Radiator
Ledfoot Racing Shroud & SPAL-1516 Medium Profile 16" Fan
2-Row Core | Cools up to 400hp
Verify clearance for electric fan
(Will outperform the 2-10" set up but needs more space)
Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" driver side of center
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 5"
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8- 27NPT)
Ledfoot Racing Shroud & SPAL-1516 Medium Profile 16" Fan
2-Row Core | Cools up to 400hp
Verify clearance for electric fan
(Will outperform the 2-10" set up but needs more space)
Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 1.75" thick
Inlet: 1.5" driver side of center
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 5"
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8- 27NPT)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
