EC2365 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp
Confirm your core width, this is the smaller of two

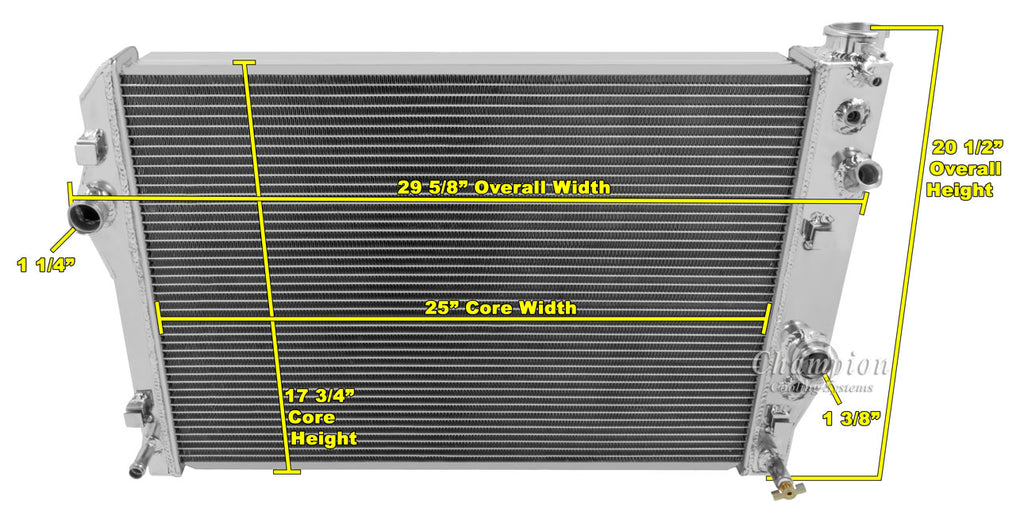

Radiator Dimensions:
Total: 20.5" tall (with cap) x 29.63" wide
Core: 17.75" tall x 25" wide x 1.75" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Pin Mounted

Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
