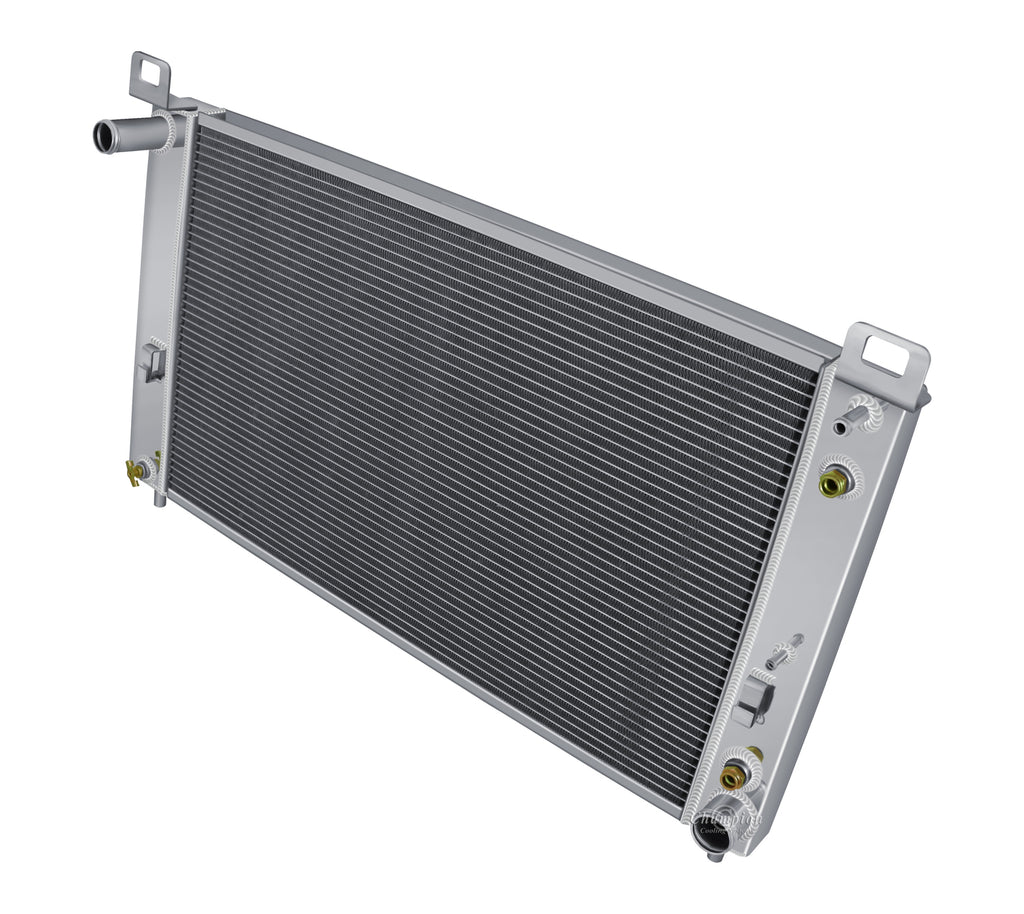

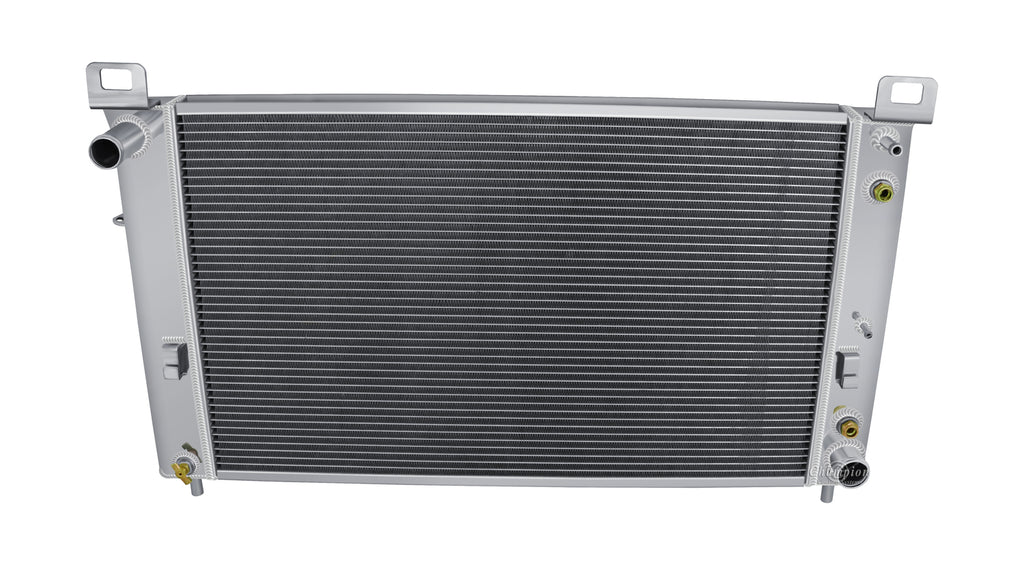

EC2334 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 600hp
Please confirm core width

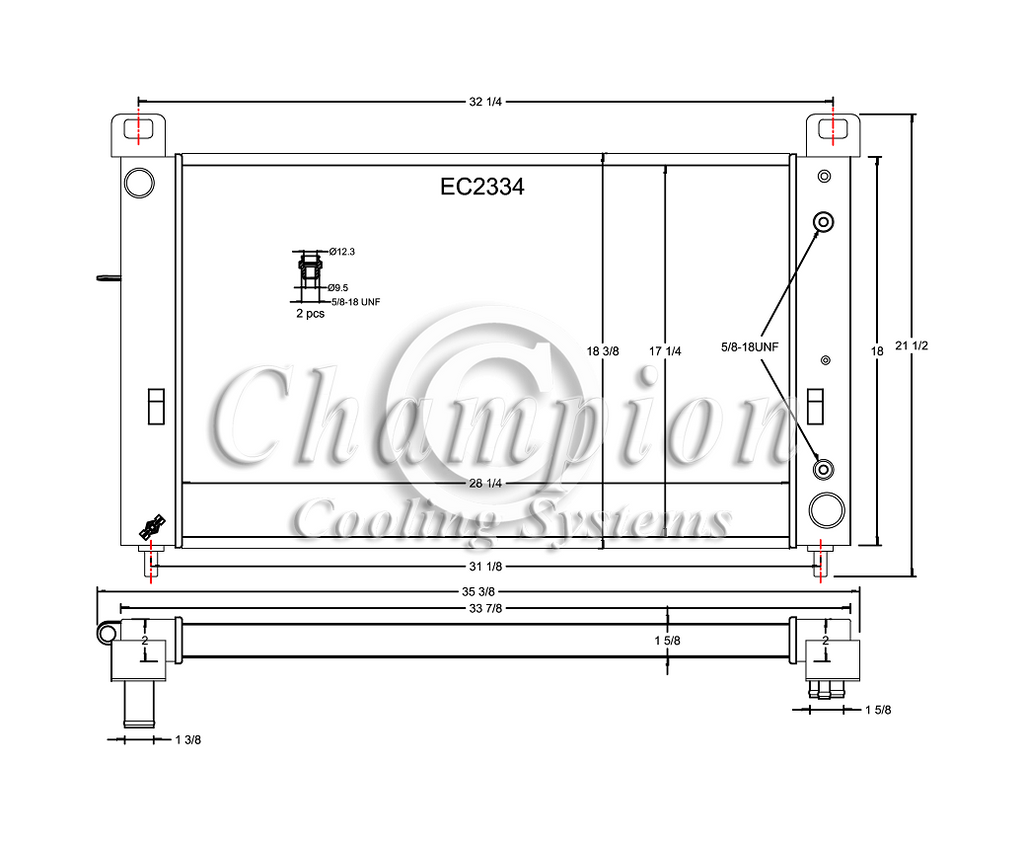

Radiator Dimensions:
Total: 21.5" tall (Including pins)  x 33.87" wide
Core: 17.25" tall x 28.25" wide x 1.63" thick
Inlet: 1.38" driver side
Outlet: 1.63" passenger side
Tanks: 2" thick
Tubes: 0.75" thick

Pin / Bracket Mounted

Transmission Cooler included (5/8-18 NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 14" Electric fans recommended for this core size
