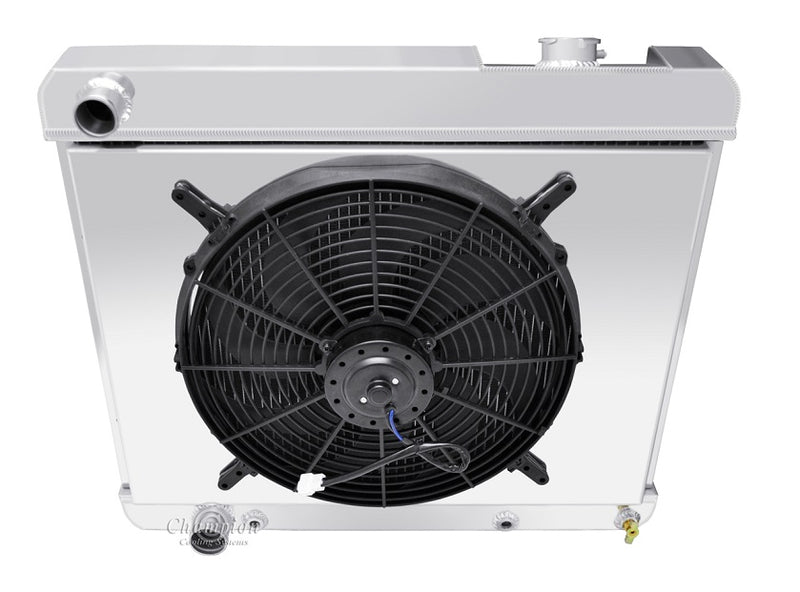

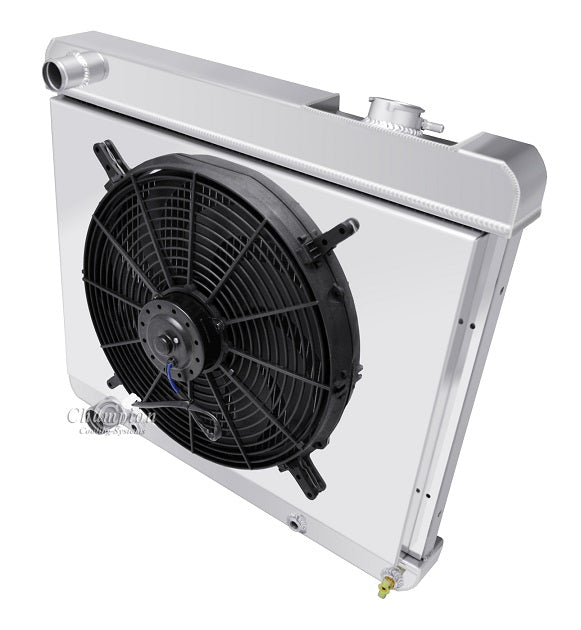

EC2284-284FS16 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core | Cools 400hp

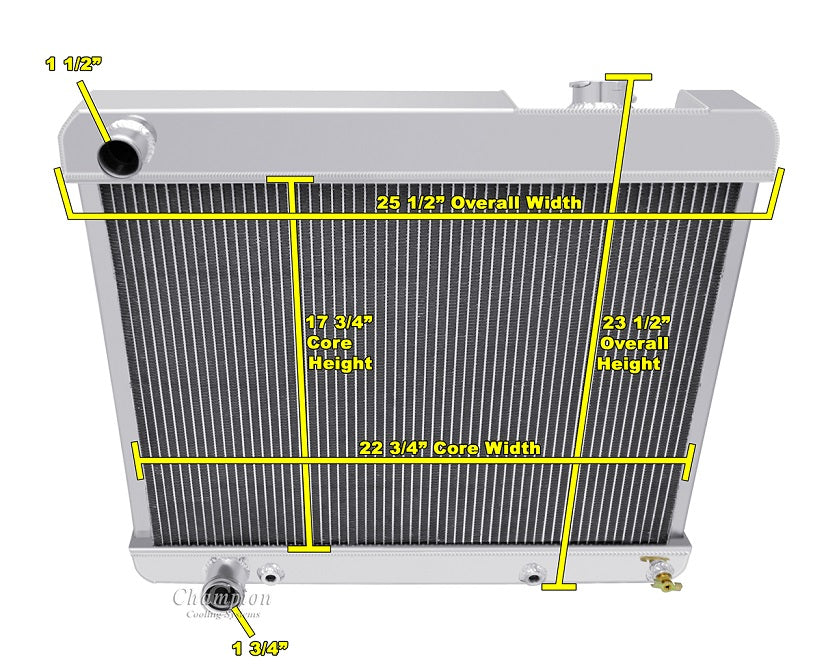

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: 2.75" thick, 2.38" thick (bottom)
Tubes: 0.75" thick
Total Thickness: 5.5"

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
