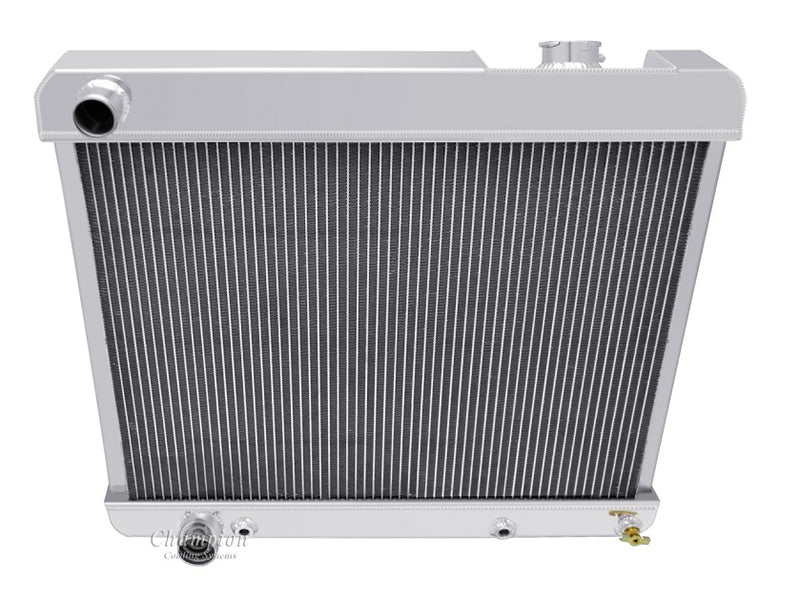

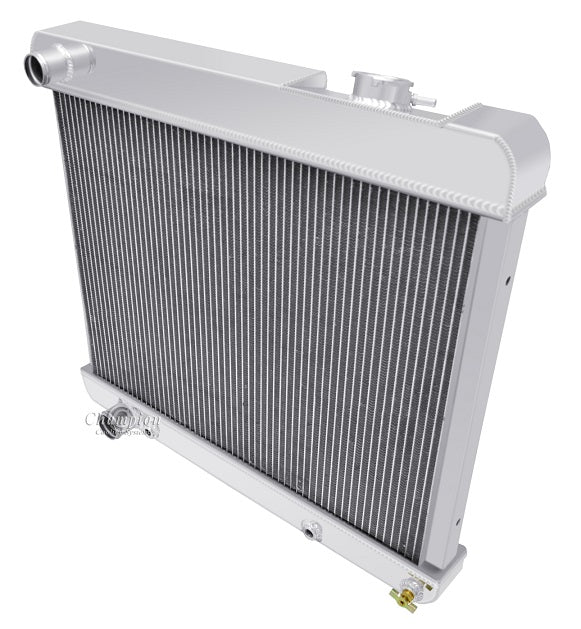

EC2284 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

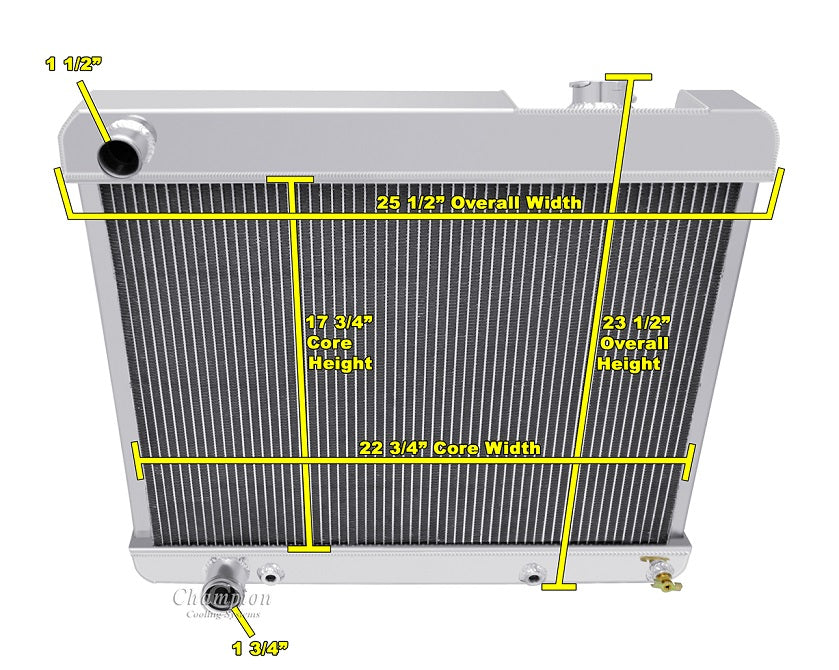

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: 2.75" thick, 2.38" thick (bottom)
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud available for 16" fan (sold separately)

When using electric Fans:
One 16" Electric fan two 12" Electric fans recommended for this core size (sold separately)
