Description

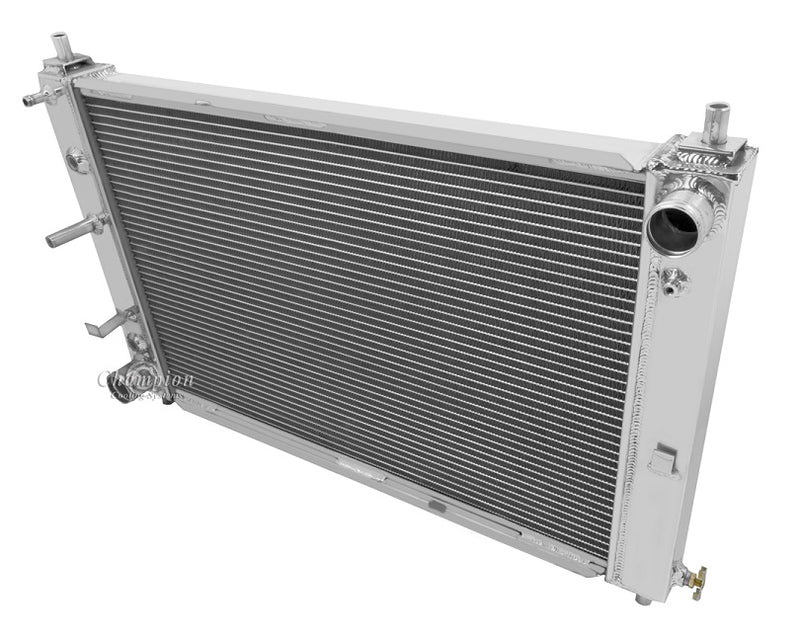

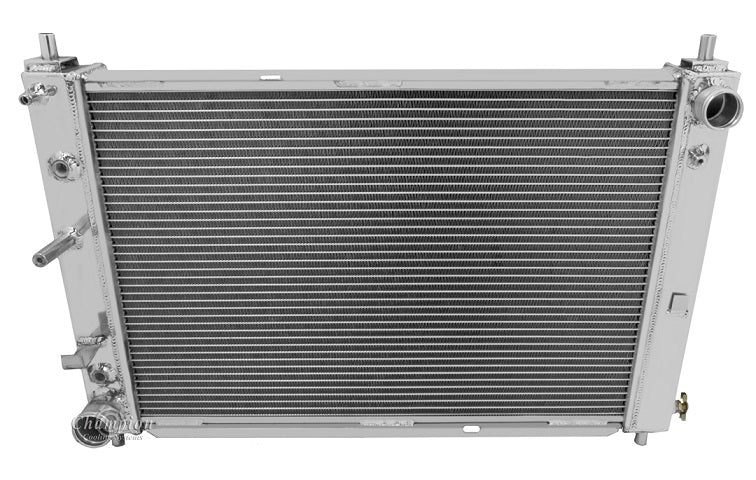

All Aluminum Champion Radiator
2-Row Core
Radiator Dimensions:
Total: 19.75" tall x 31.75" wide
Core: 16.75" tall x 25.5" wide
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tubes: 0.75" thick
Pin Mounted
Transmission Cooler included (1/8-27npt)
When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
2-Row Core
Radiator Dimensions:
Total: 19.75" tall x 31.75" wide
Core: 16.75" tall x 25.5" wide
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tubes: 0.75" thick
Pin Mounted
Transmission Cooler included (1/8-27npt)
When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
