EC2101-BLK 2 Row

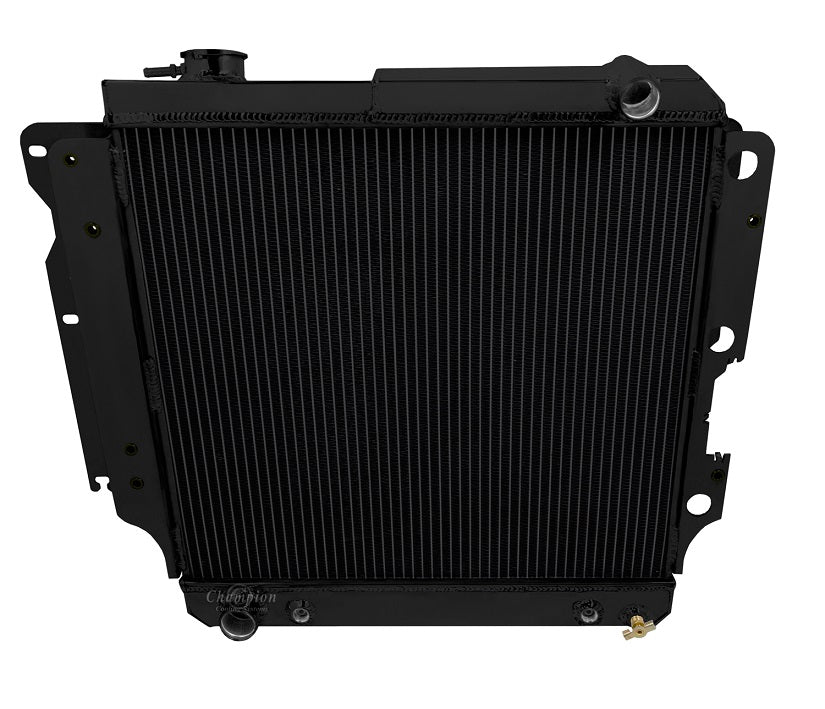

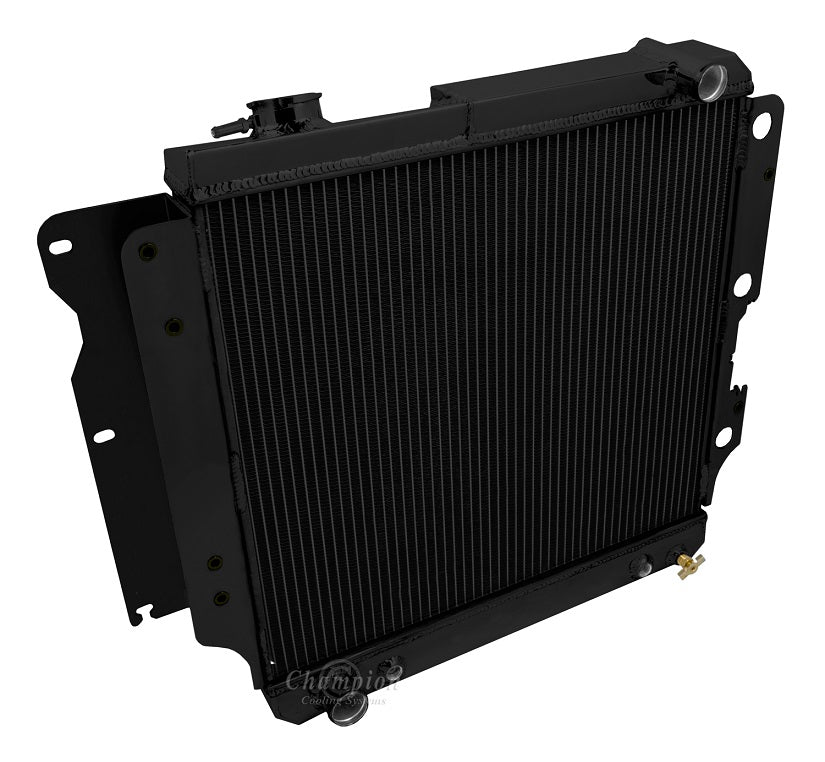

Champion All Aluminum Radiator (Black)
2-Row Core | Cools up to 400hp

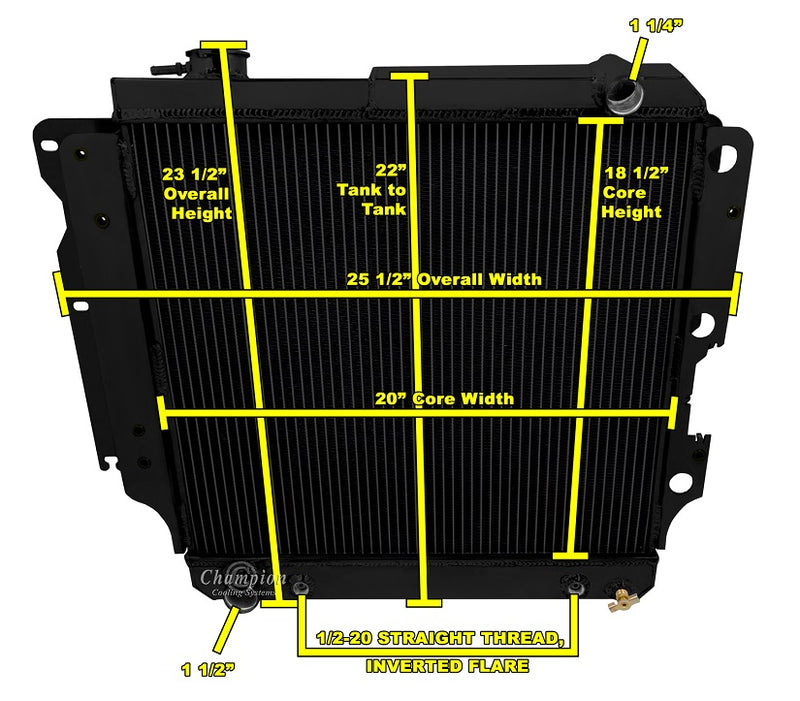

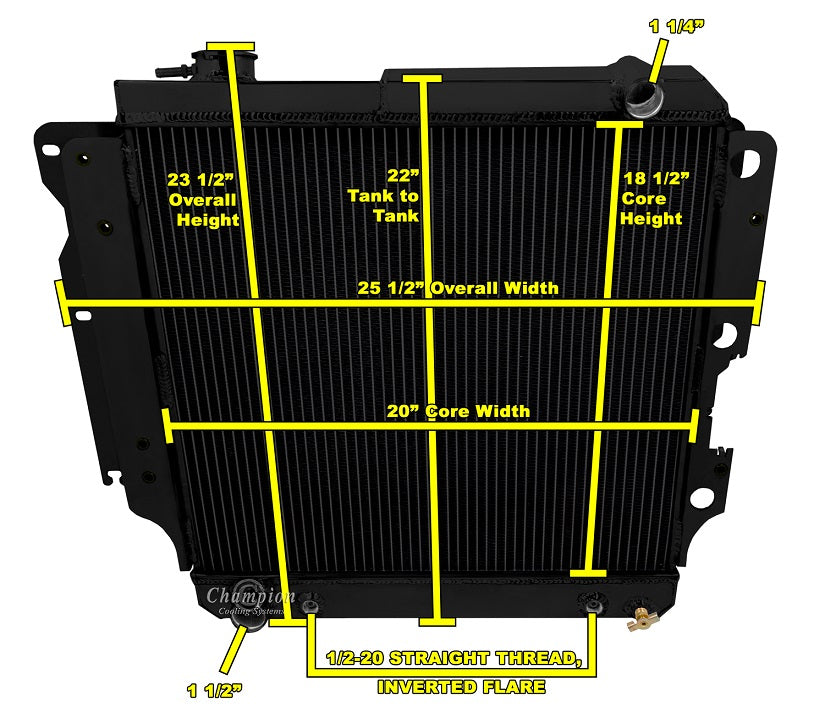

Radiator Dimensions:
Total: 23.5" tall (including brackets) x 25.5" wide
Core: 18.5" tall x 20" wide 1.63" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13lb. Radiator Cap included
Transmission Cooler included (M16-1.5)
Tranny Cooler not compatible with quick disconnects
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" Electric Cooling Fan recommended for this core size
