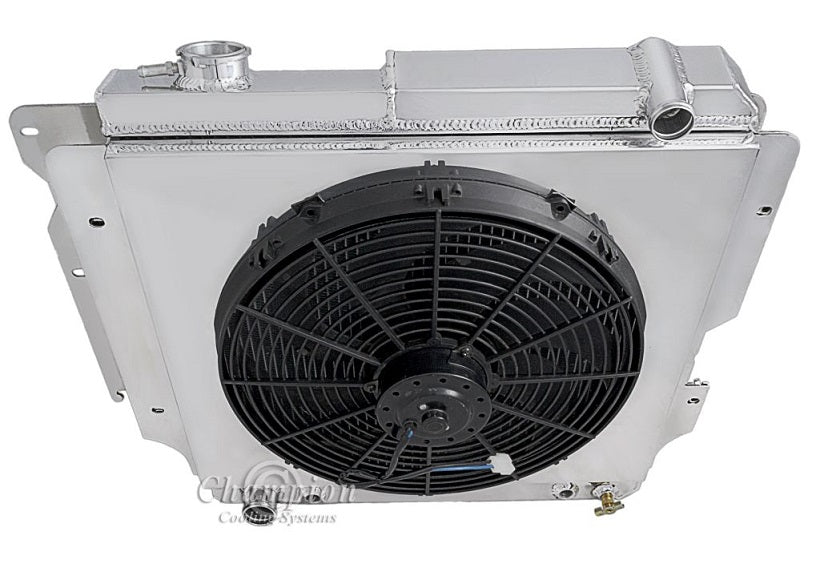

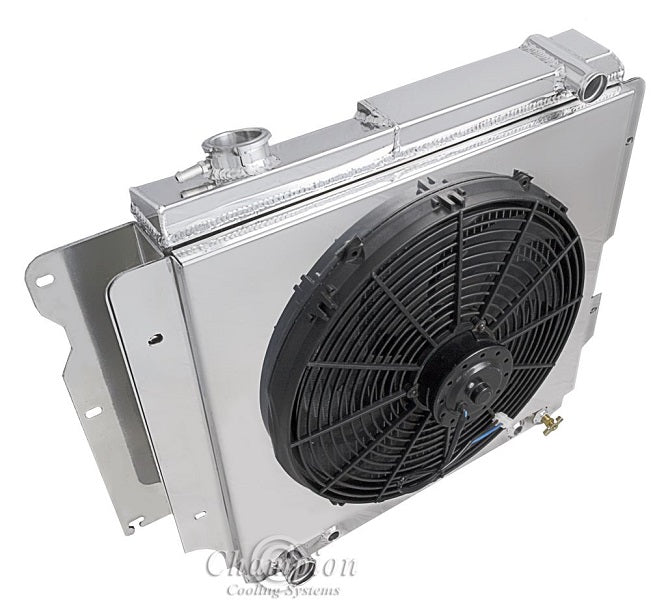

EC2101-2101FS16SP 2 Row Combo

Champion All Aluminum Radiator Plus
Shroud and SPAL-1516 16" Medium Profile fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | Cools up to 350HP

Total thickness is 5.25" to the back of the Spal Fan

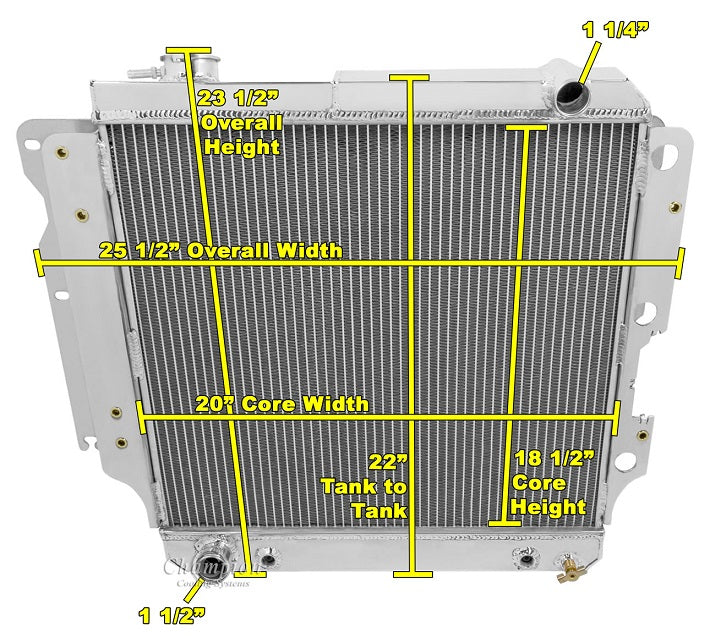

Radiator Dimensions:
Total: 25.5" wide x 23.5" tall (including brackets)
Core: 18.5" tall x 20" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 4.5" between fan motors)

Bracket Mounted
Rivit Nuts in shroud bracket: Size M6

13lb. Radiator Cap included
Transmission Cooler included (M16-1.5)
