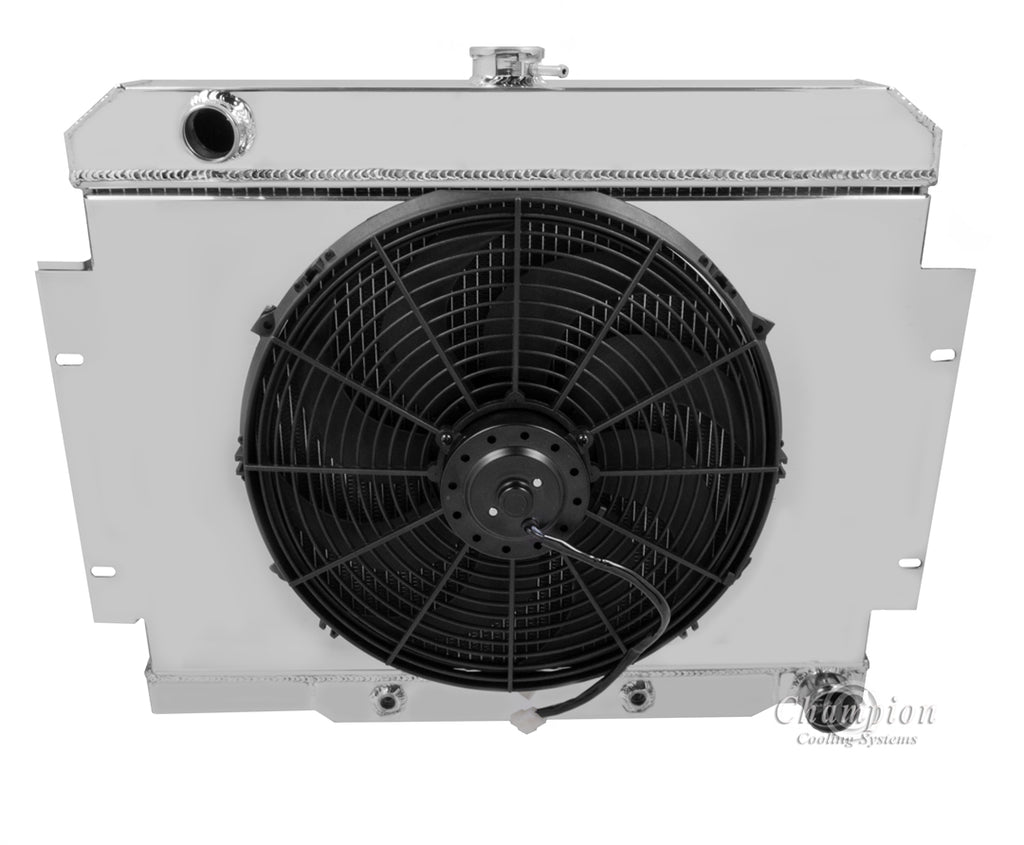

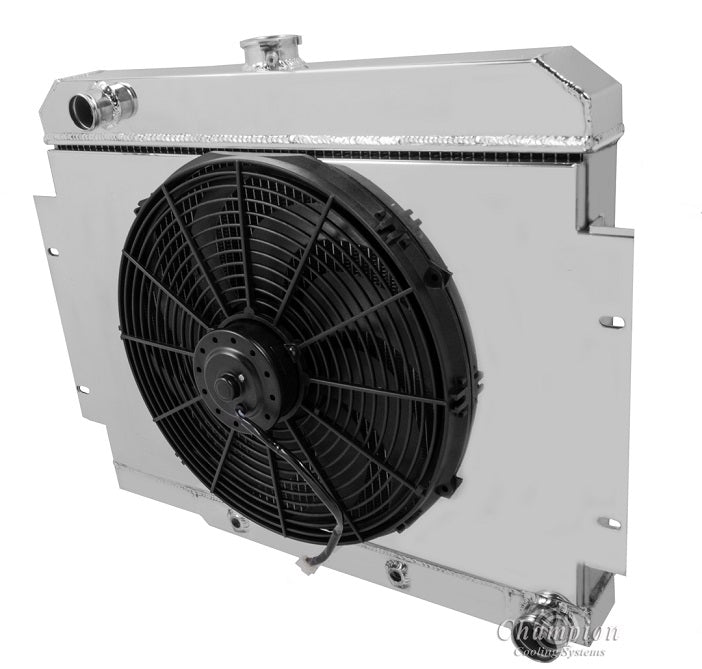

EC1919-1919FS16 2 Row Combo

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan

2 Row Core | Cools up to 450hp | Chevy Inlet and outlet set up

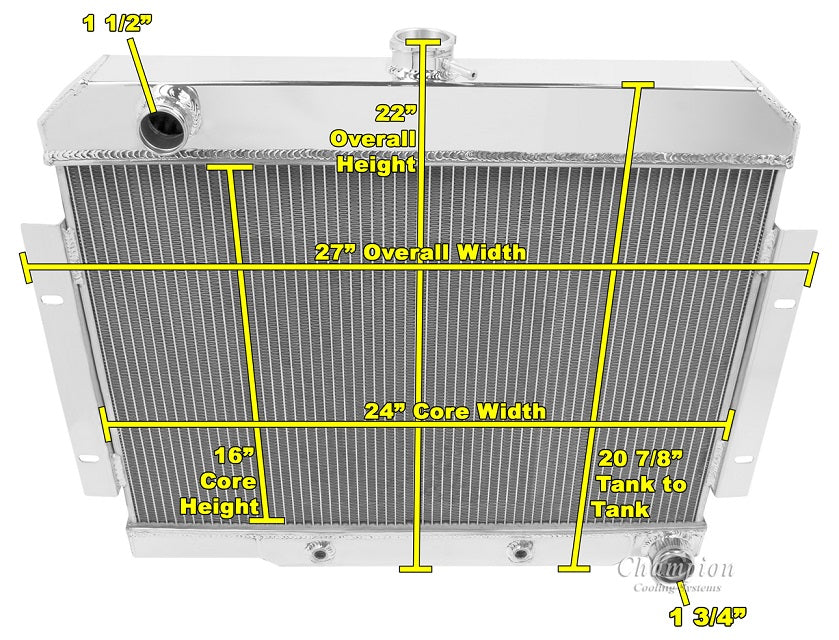

Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 22.75" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver's side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
