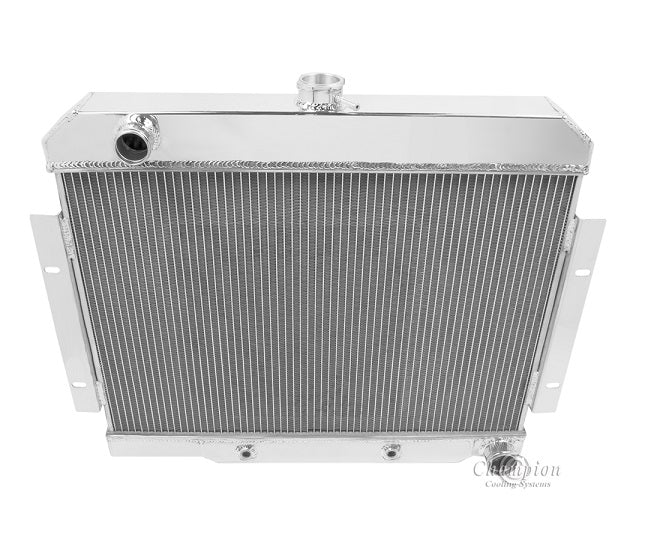

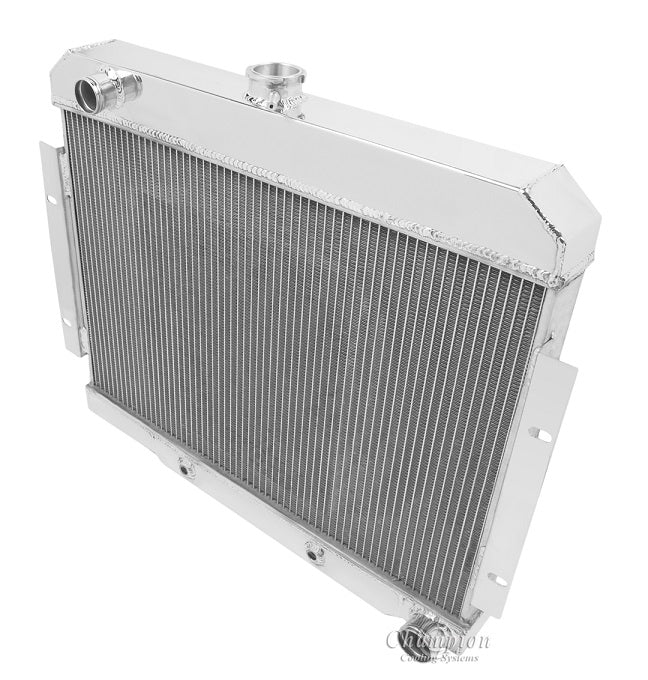

EC1919 2 Row

All Aluminum Champion Radiator
2 Row Core | Cools up to 450hp |
Chevy Inlet and outlet set up

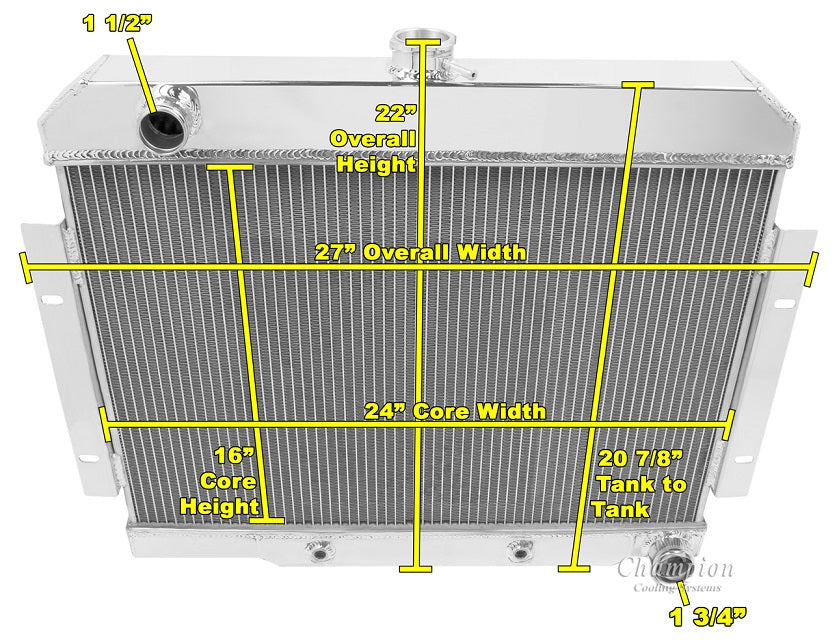

Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 22.75" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver's side
Tanks:
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
