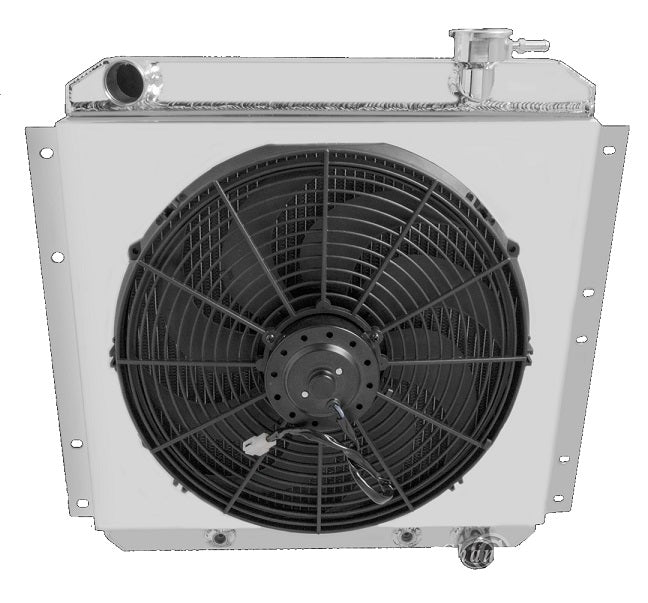

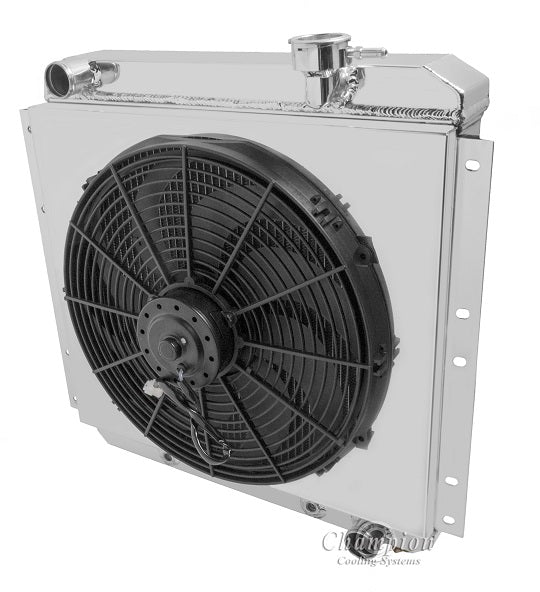

EC180-180FS16 2 Row Combo

All Aluminum Champion Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan

2-Row Core | Cools up to 350hp

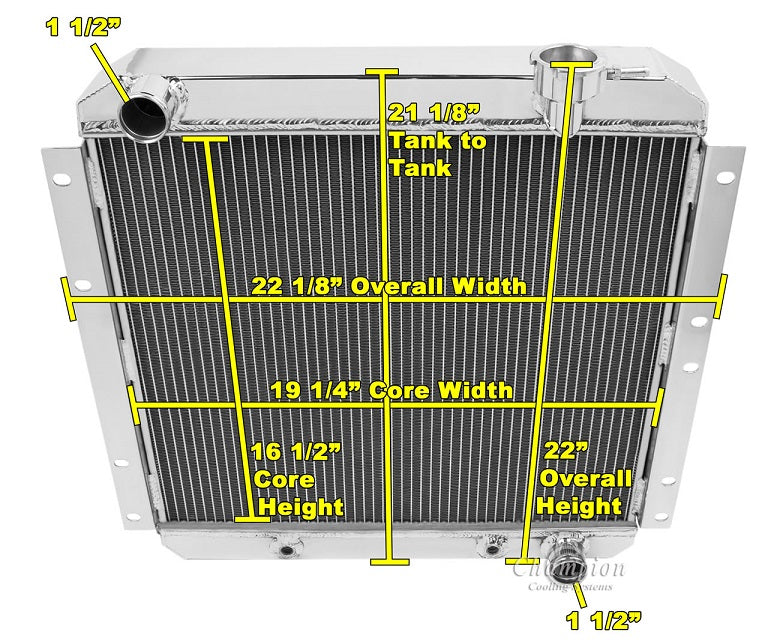

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 1.75" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5"

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
