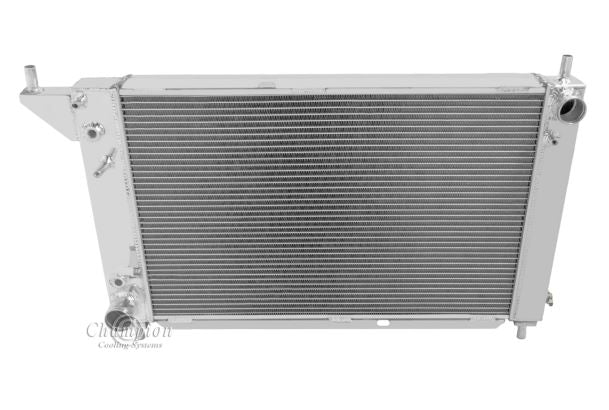

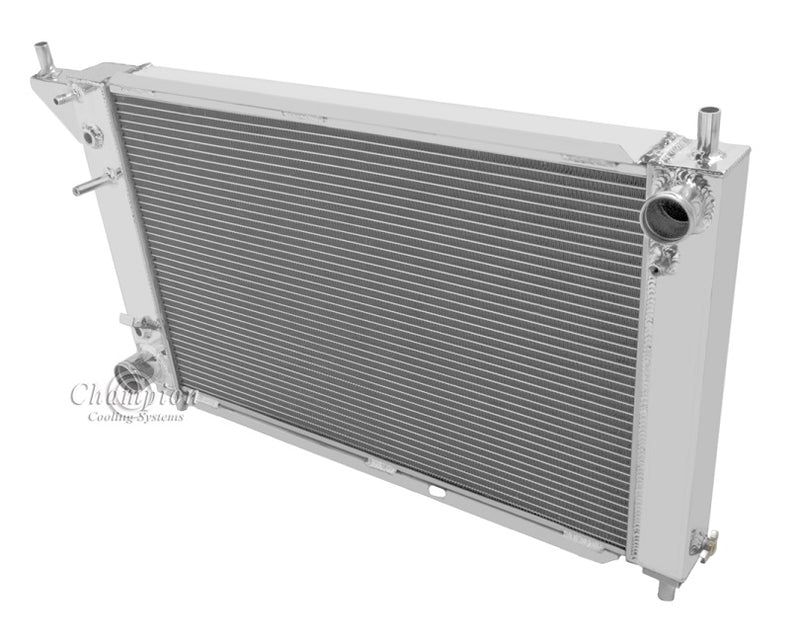

EC1775 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 500hp

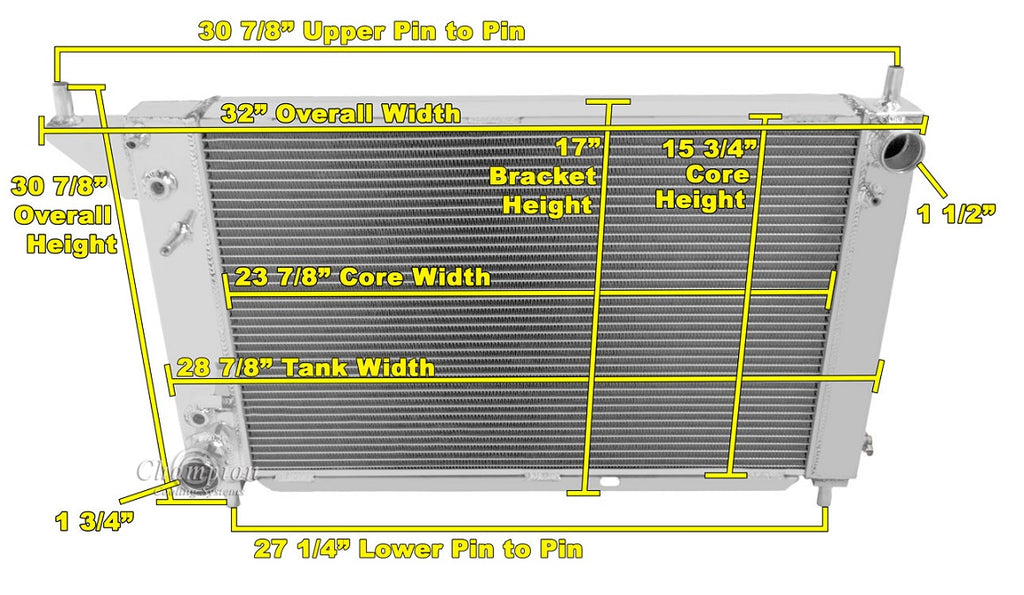

Radiator Dimensions:
Total: 19.5" tall (with cap) x 31.75" wide
Core: 15.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75” drivers side
Tanks: 2.75" thick
Tubes: 0.75" thick

Pin Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
