Description

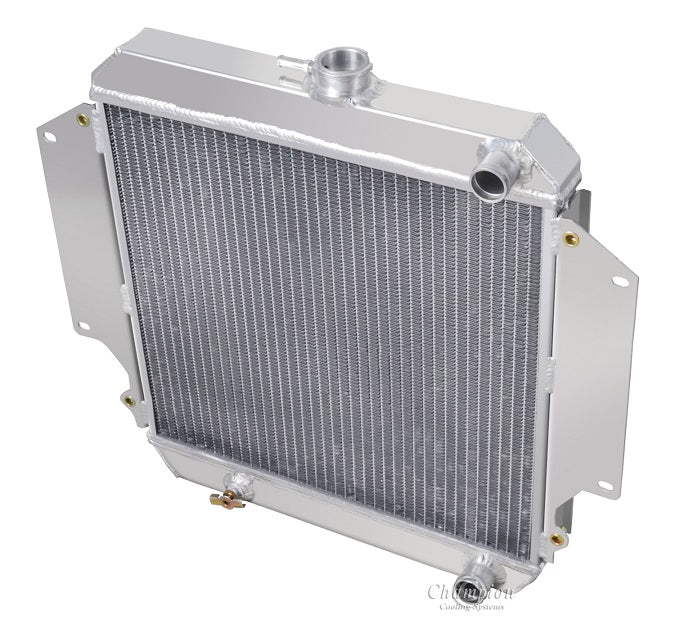

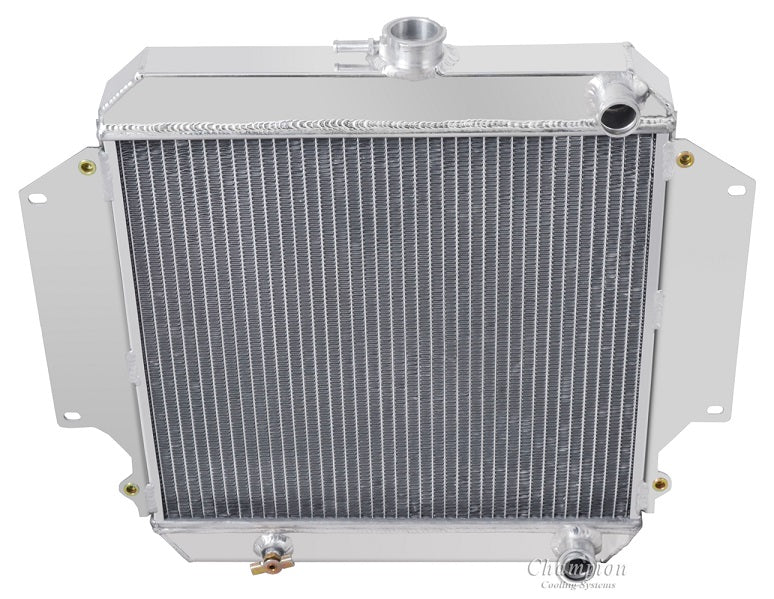

All Aluminum Champion Radiator
2-Row Core | Cools up to 300hp

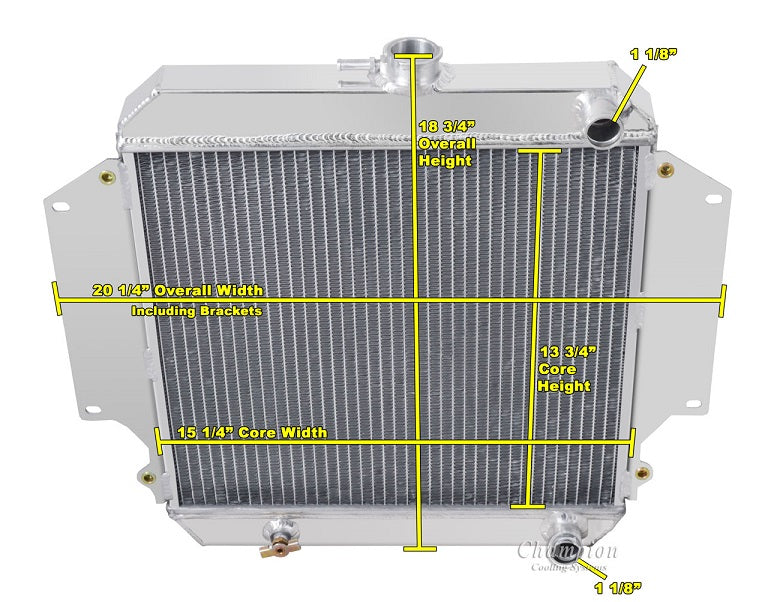

EC170 Radiator Dimensions:
Total: 18.75" tall x 20.25" wide (with brackets)
Core: 13.75" tall x 15.25" wide x 1.75" thick
Inlet: 1.13" passenger side
Outlet: 1.13" passenger side
Tanks: 2" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler NOT included
When using electric fans:
One 12" SPAL-1522 fan recommended for this core size (sold separately)
2-Row Core | Cools up to 300hp
EC170 Radiator Dimensions:
Total: 18.75" tall x 20.25" wide (with brackets)
Core: 13.75" tall x 15.25" wide x 1.75" thick
Inlet: 1.13" passenger side
Outlet: 1.13" passenger side
Tanks: 2" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler NOT included
When using electric fans:
One 12" SPAL-1522 fan recommended for this core size (sold separately)
