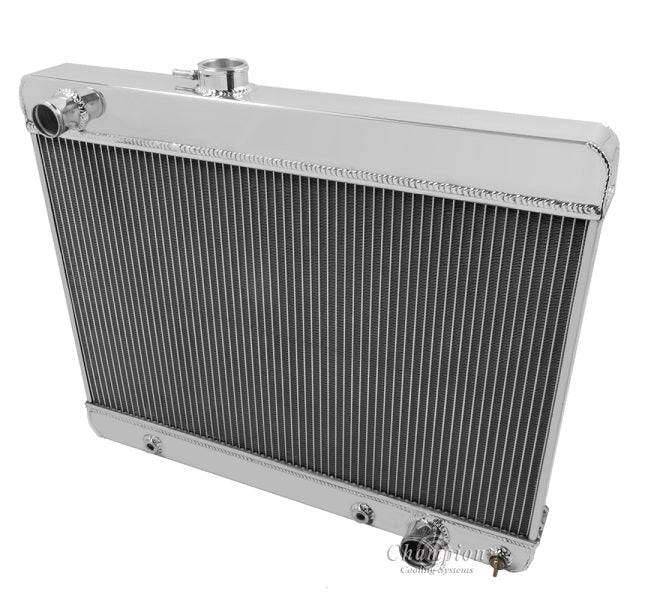

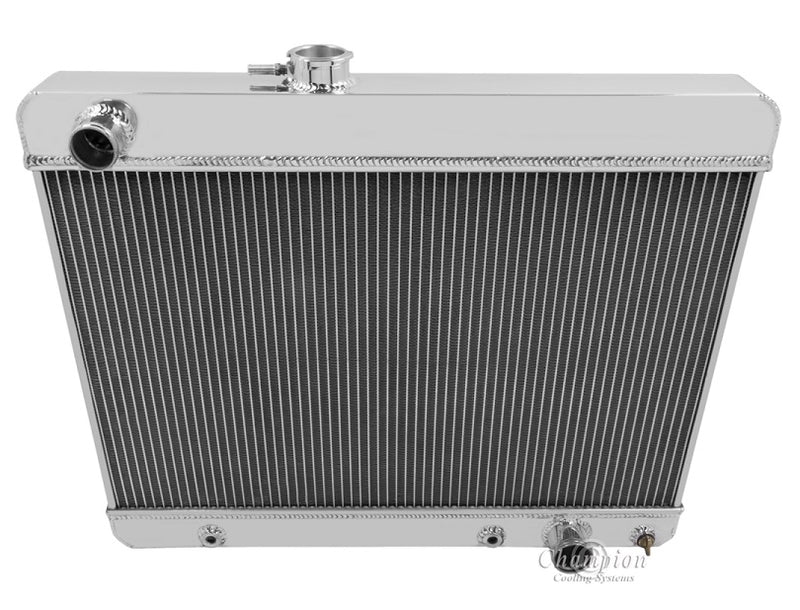

EC1680 2 Row 20.5" Tall

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp
Please verify you radiator height, we have 20", 20.5"
and 22.5" tank to tank heights. Call for Assistance.

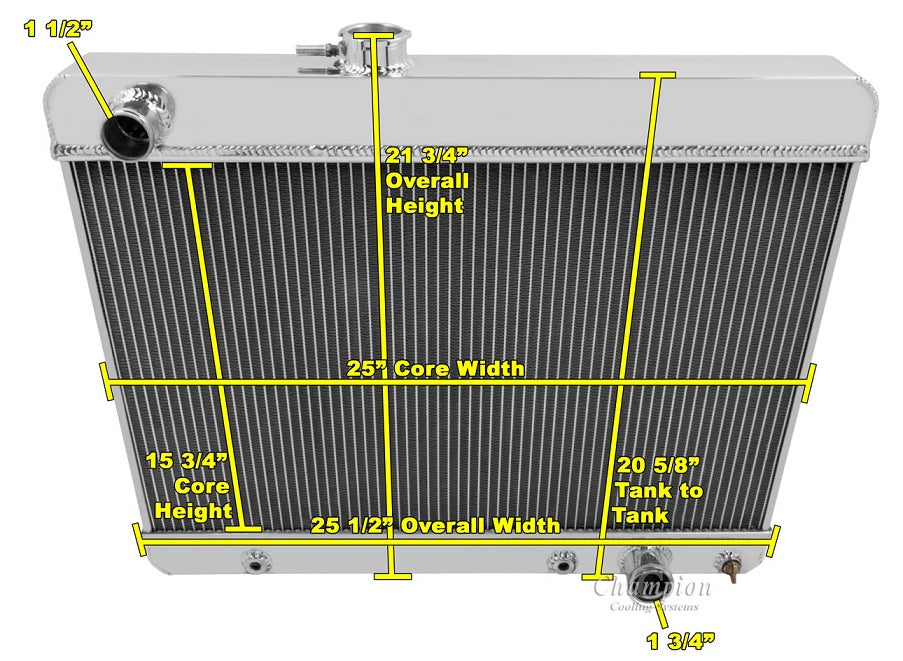

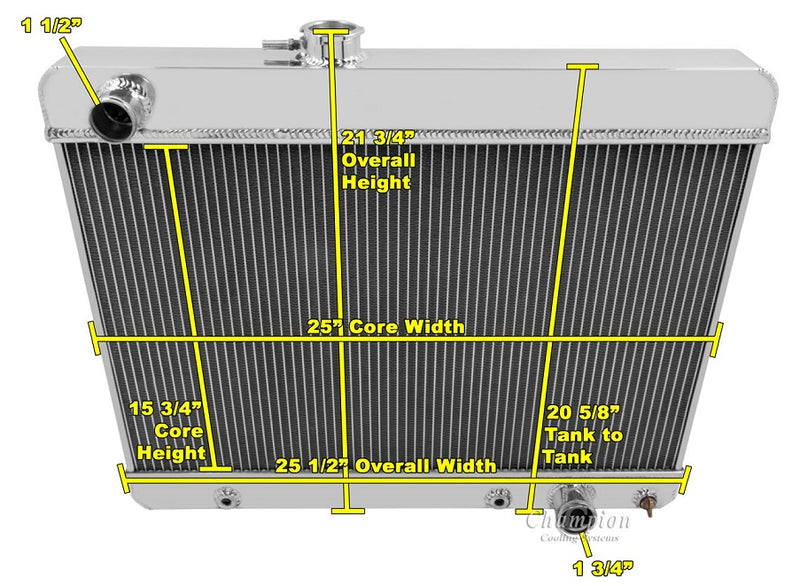

Radiator Dimensions:
Total: 20.5" Tall 21.75" (with cap) x 25.5" wide
Core: 15.75" tall x 25" wide x 1.75" thick
Inlet: 1.5" driver's side
Outlet: 1.75" passenger side
Tanks: 2.75" thick (top), 2.38" thick (bottom)
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread)

When using electric fans:
Two 12" Electric fans or one 16" Electric Fan recommended for this core size
