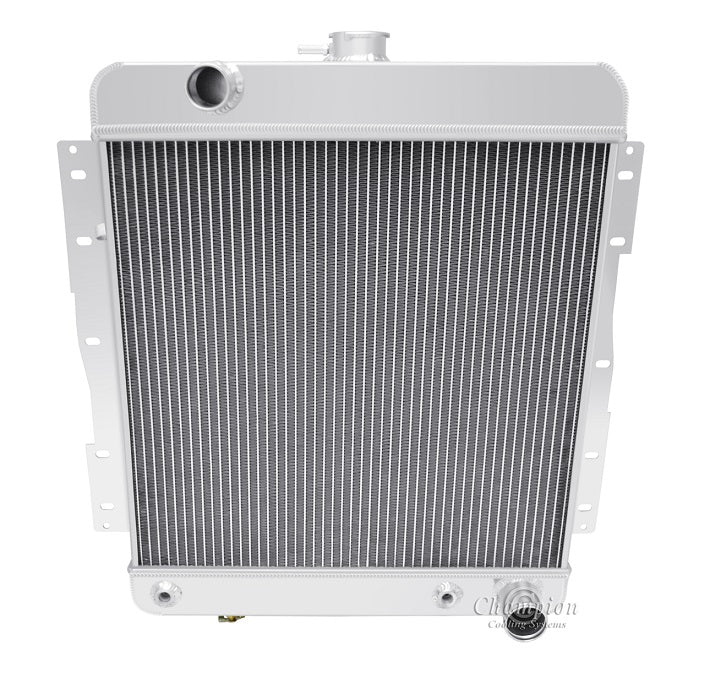

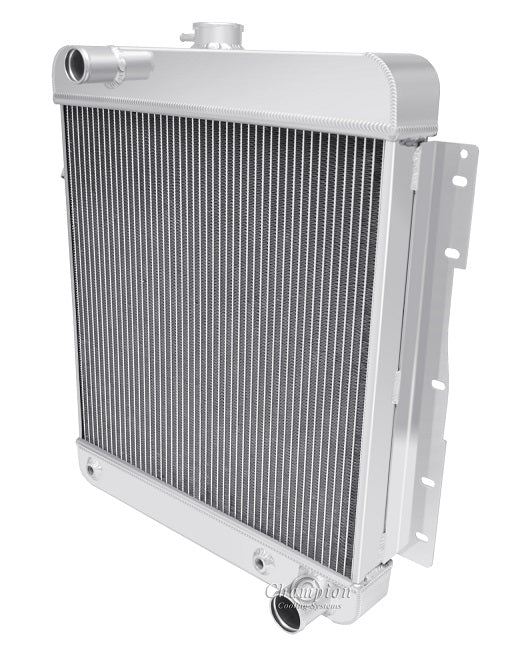

EC1661 2 Row

Champion All Aluminum Radiator

2-Row Core | Cools up to 650hp

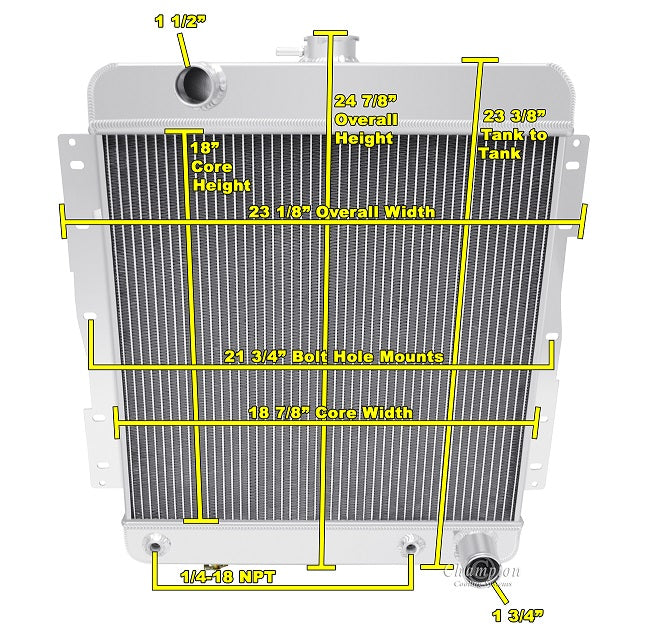

Radiator Dimensions:
Total: 23.75" tall (24.875" with cap) x 23.5" (including brackets)
Core: 18" tall x 18.875" wide x 1.75" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: Upper tank 3.13"thick
Lower tank 2.63 thick
Tubes: 0.75" thick

Bracket Mounted
Direct Fit Replacement


13lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
