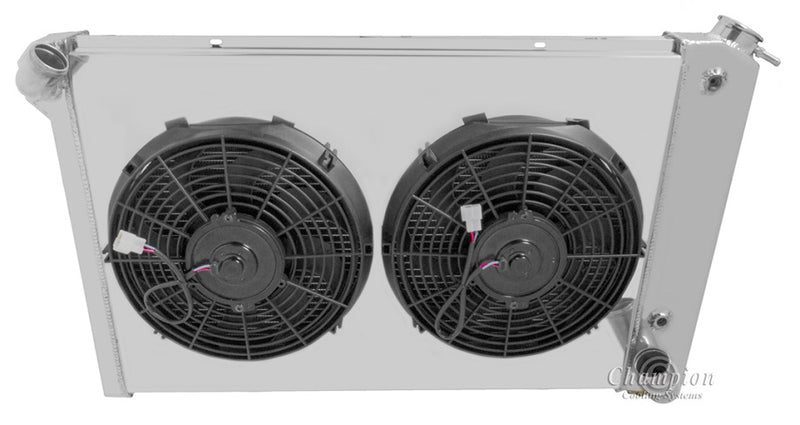

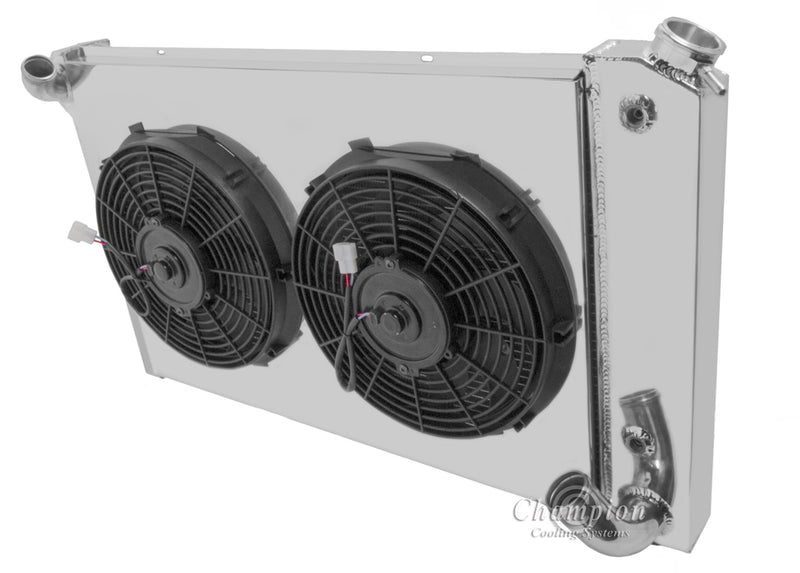

EC1655-1655FS12SP 2 Row Combo

All Aluminum Champion Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo
2 Row Core | Cools up to 450hp |
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet refer to CC6372B

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (4.5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included: 1/2"-20 Straight Thread
