Description

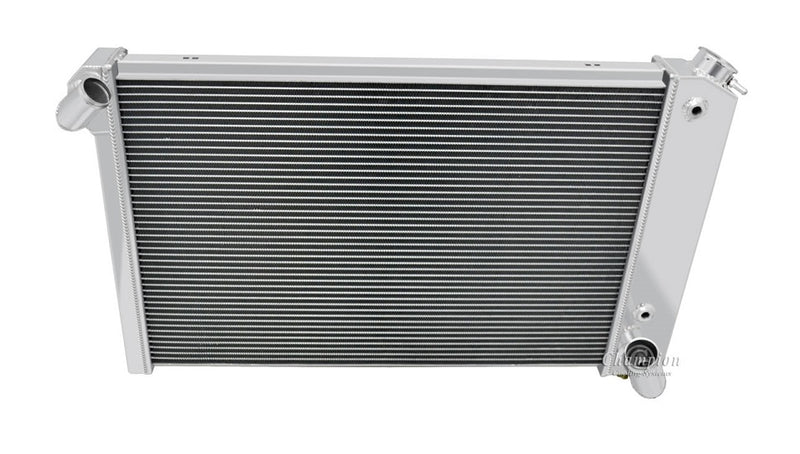

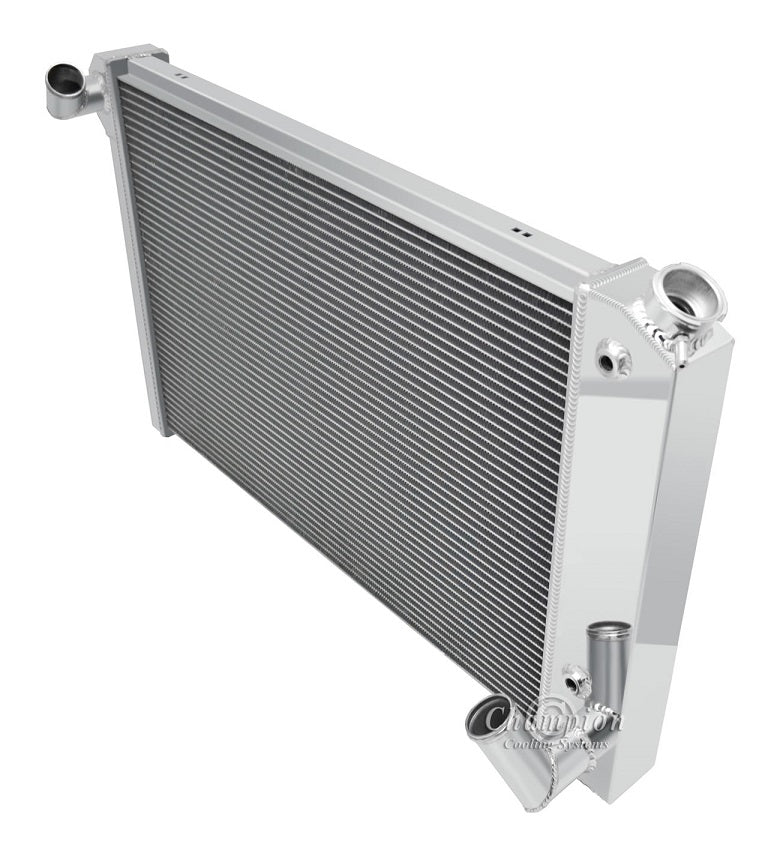

All Aluminum Champion Radiator
2 Row Core | Cools up to 450hp |
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet we do not carry it.

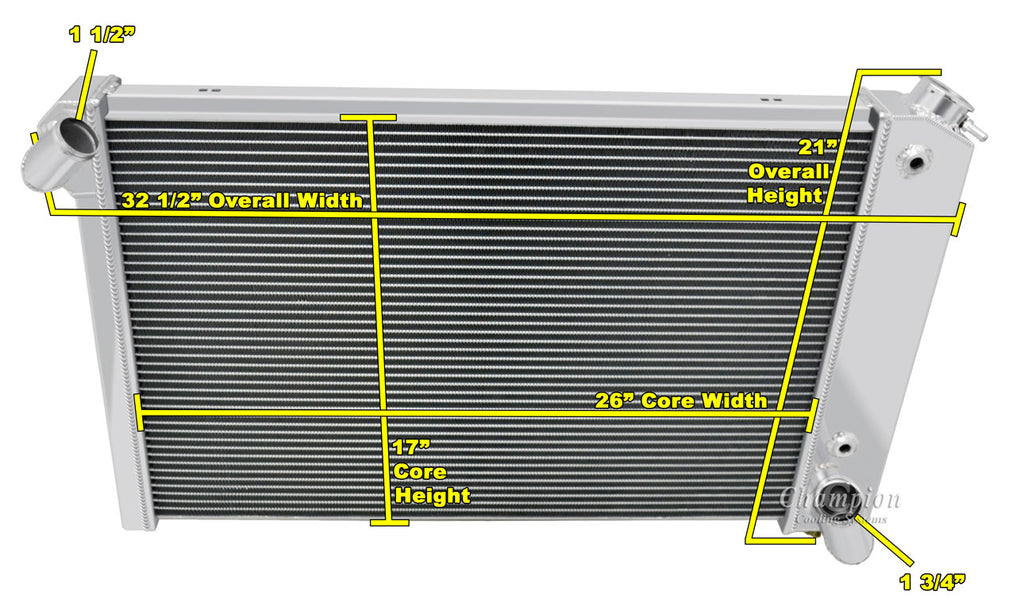

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included: 1/2"-20 Straight Thread
2 Row Core | Cools up to 450hp |
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet we do not carry it.
Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included: 1/2"-20 Straight Thread
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
