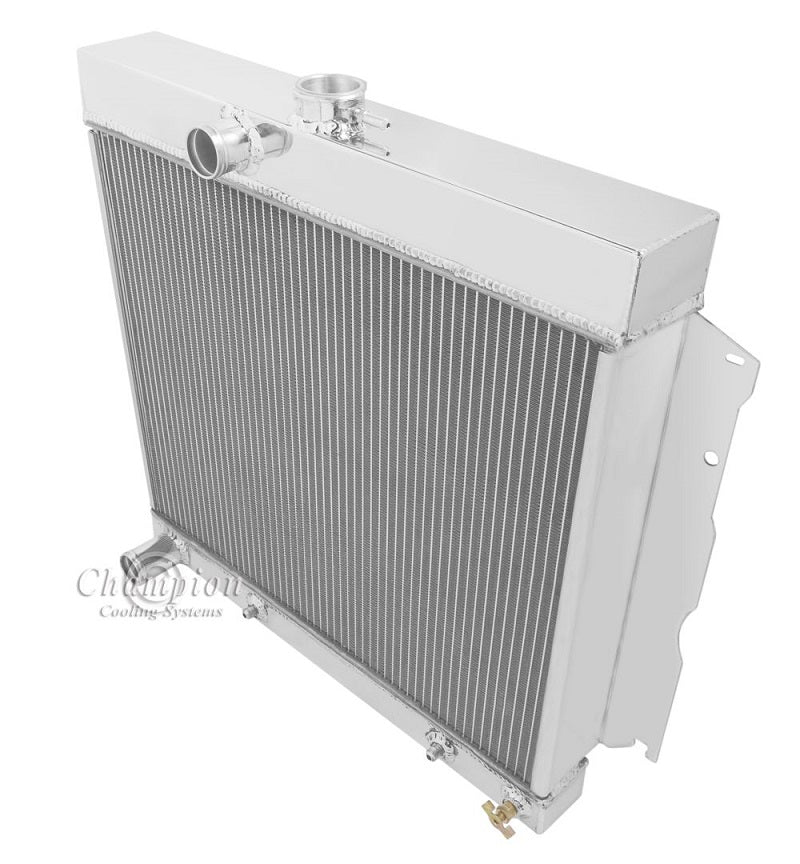

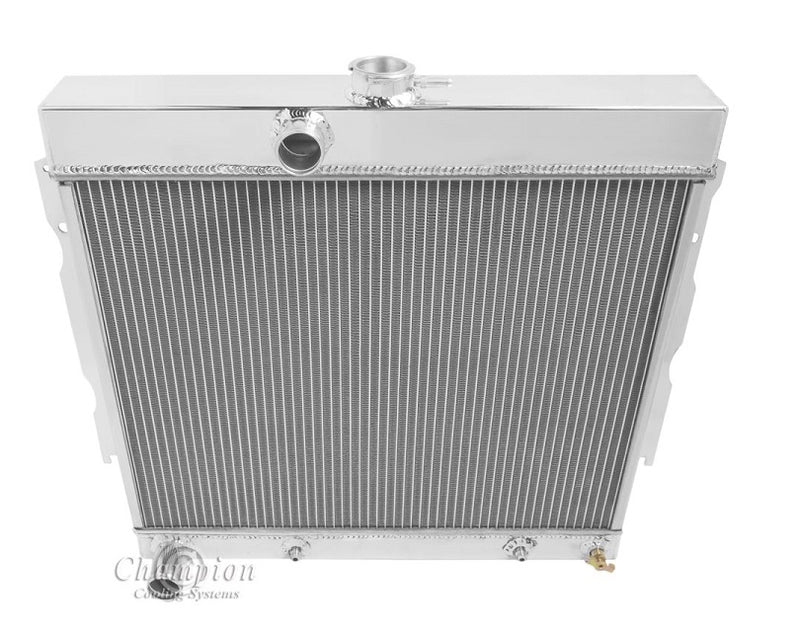

EC1635 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 350hp
If you need a shorter version, refer to CC66

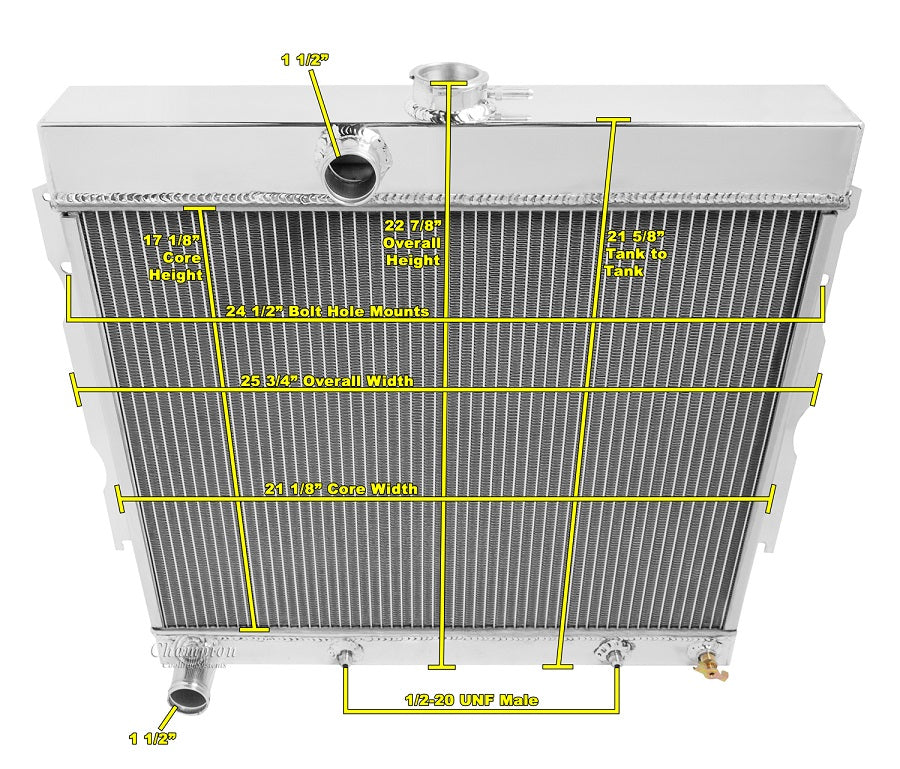

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 1.75" thick
Inlet: 1.5" Driver side off-center
Outlet: 1.5" Driver side
Tanks: 3.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
