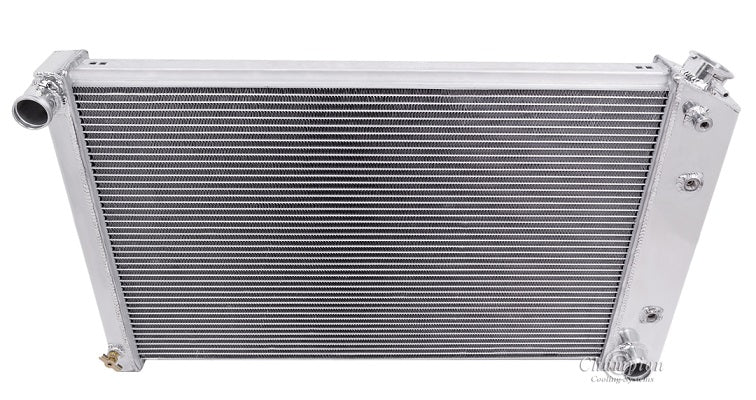

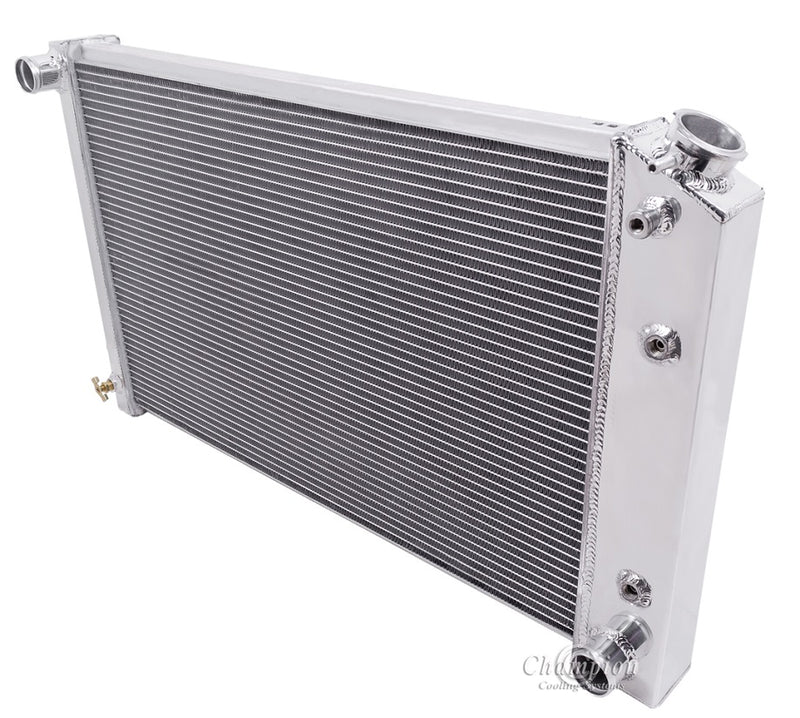

EC162 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 525hp

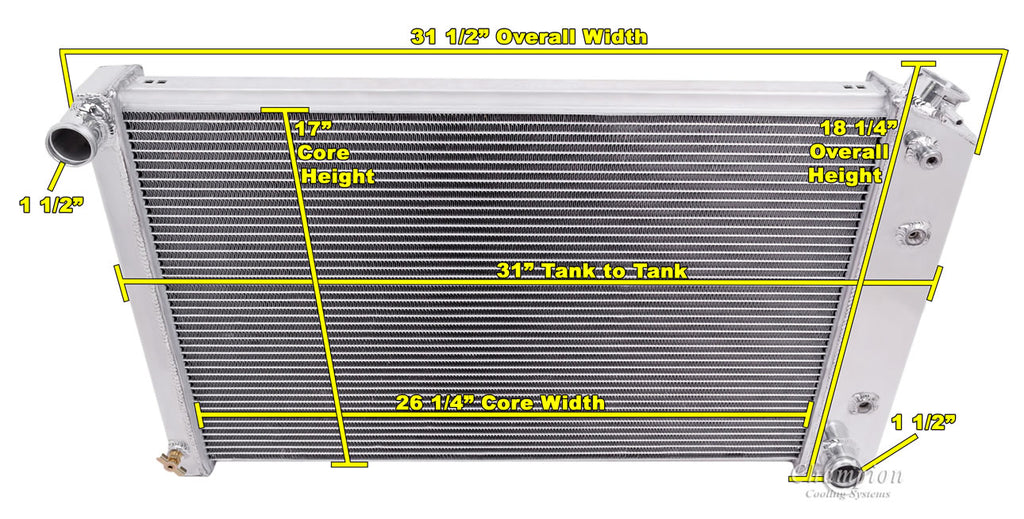

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 31.56" wide
Core: 16.75" tall x 26.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also Available for 16" Fan (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
