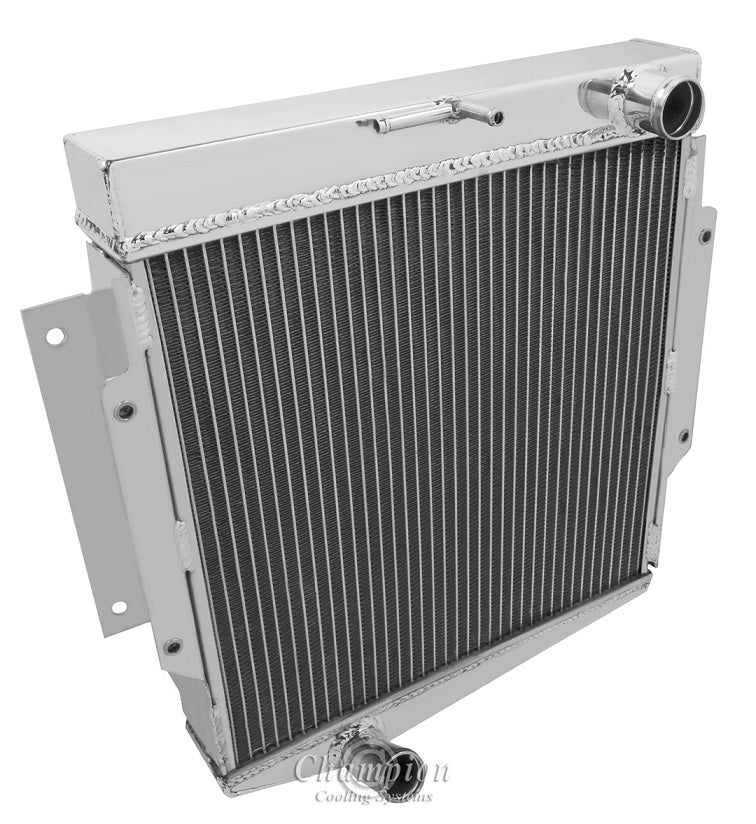

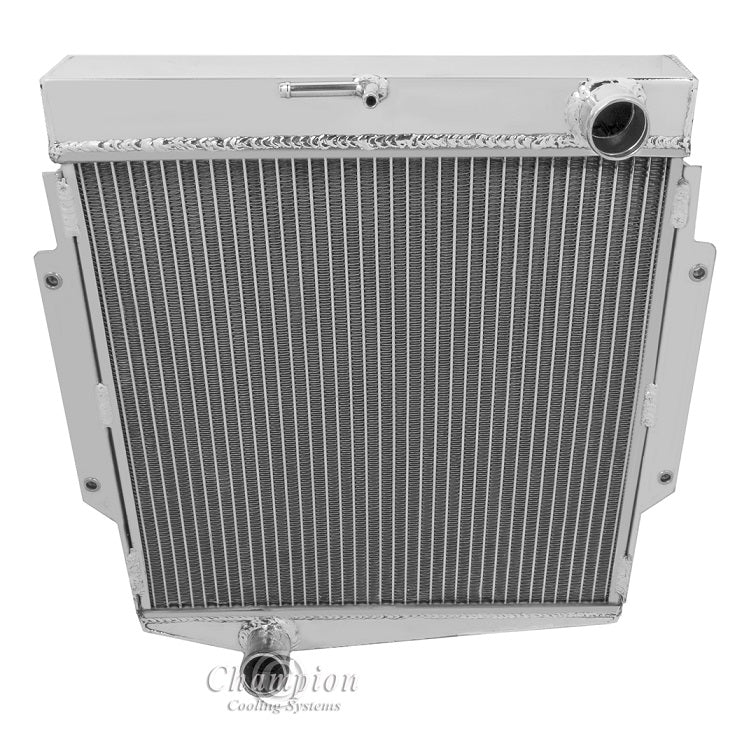

EC1600

Champion All Aluminum Radiator
2-Row Core | Cools up to 300hp

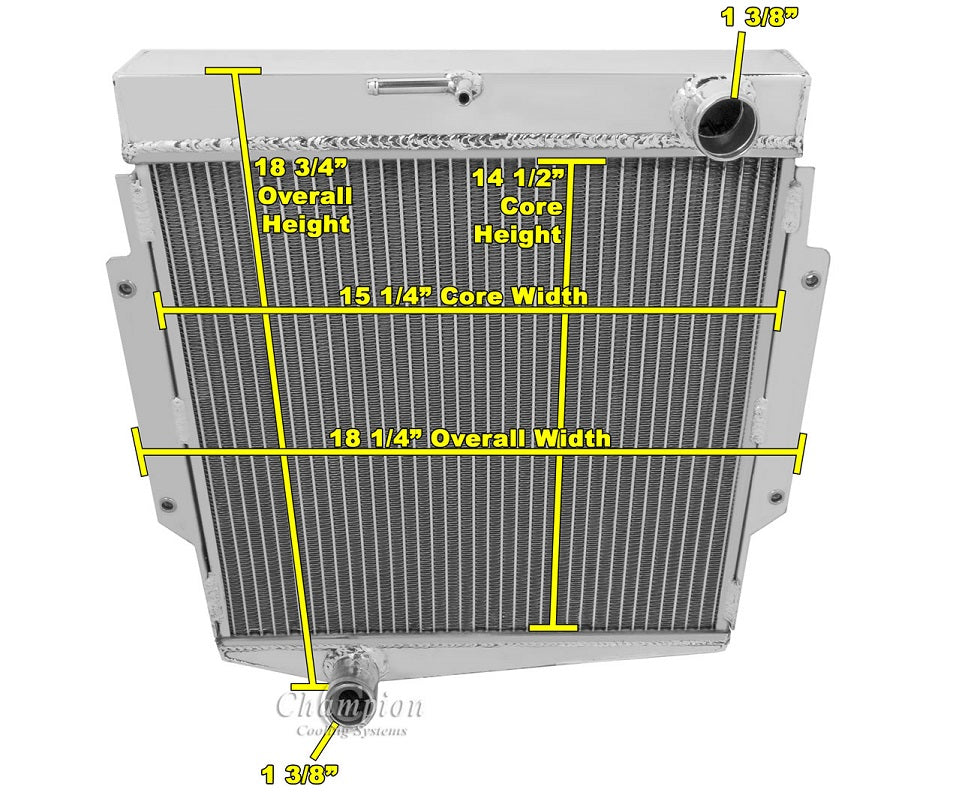

Radiator Dimensions:
Total: 18.75" tall x 18.25" wide (including brackets)
Core: 14.5" tall x 15.25" wide x 1.75" thick
Inlet: 1.38" passenger side
Outlet: 1.38" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler NOT Included
