EC1451-1451FS14 2 Row Combo

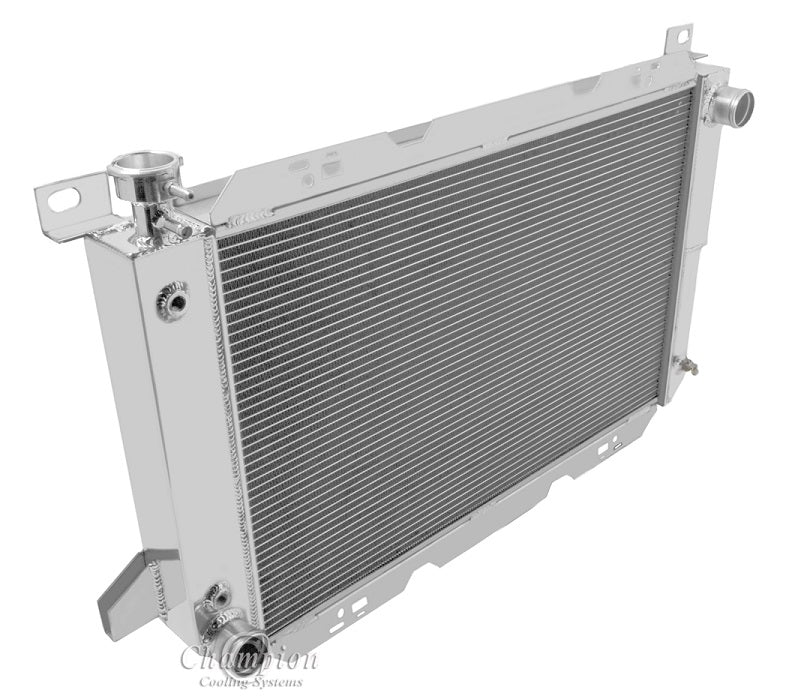

All Aluminum Champion Radiator Plus

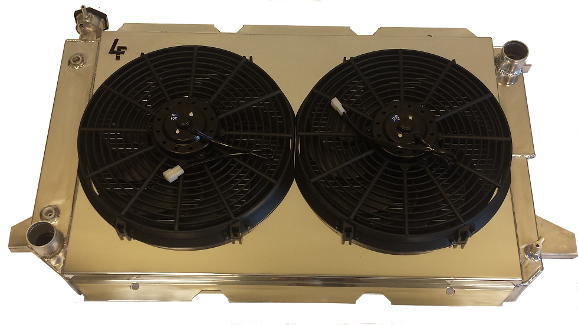

Ledfoot Racing Shroud & (2) Pro-Series 14" Fans
2-Row Core | Cools up to 400hp

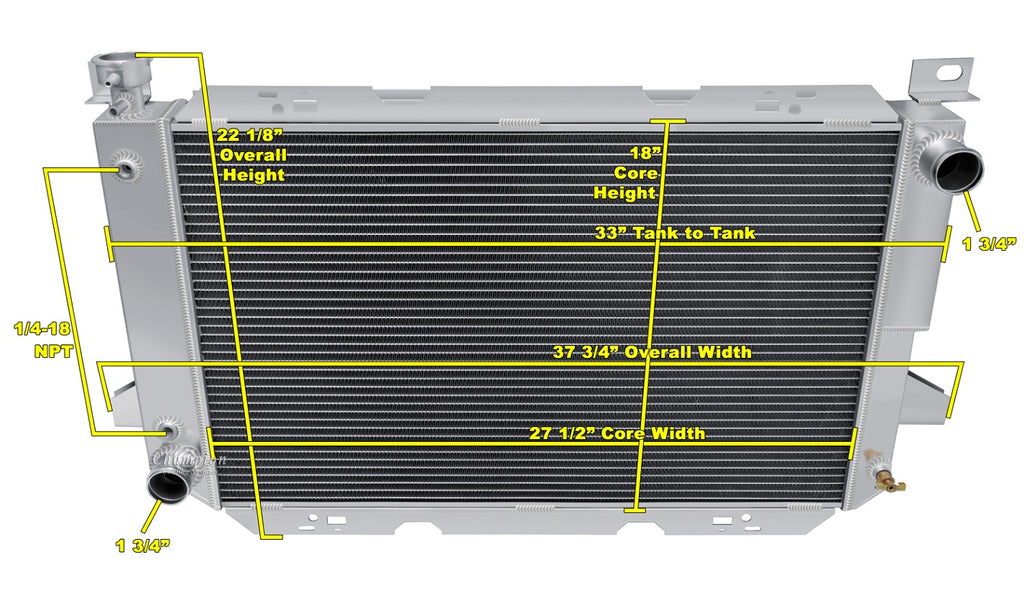

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 1.63" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 3" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (4.5" between fan motors)

13 lb. Radiator cap included
Transmission Cooler included (1/4-18NPT)
