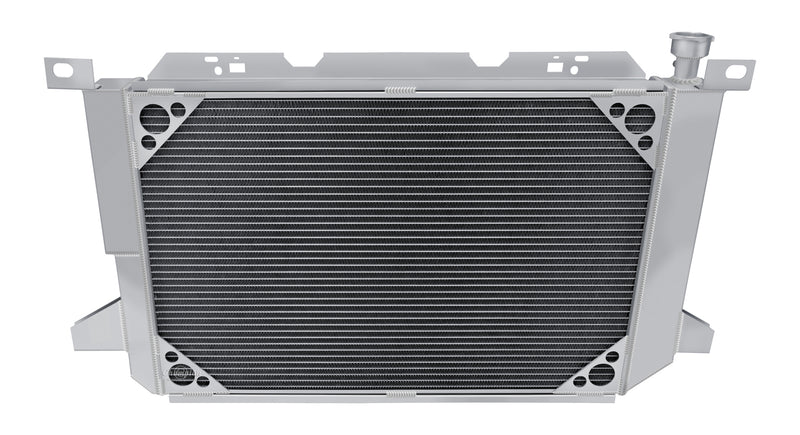

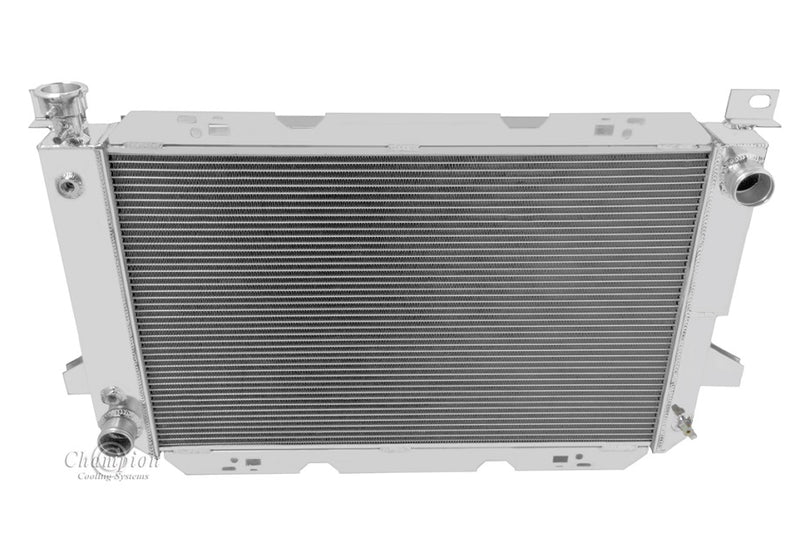

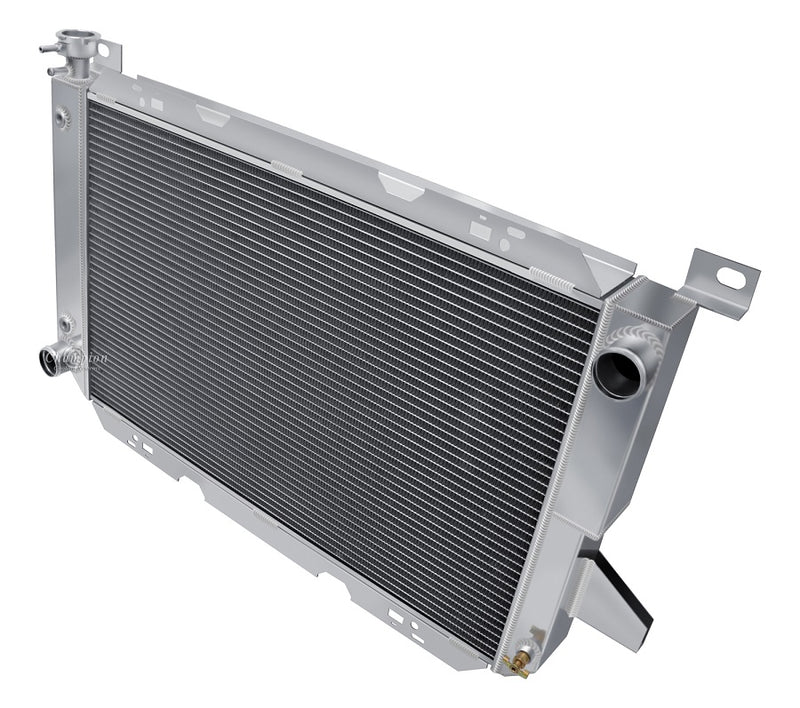

EC1451 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 350hp

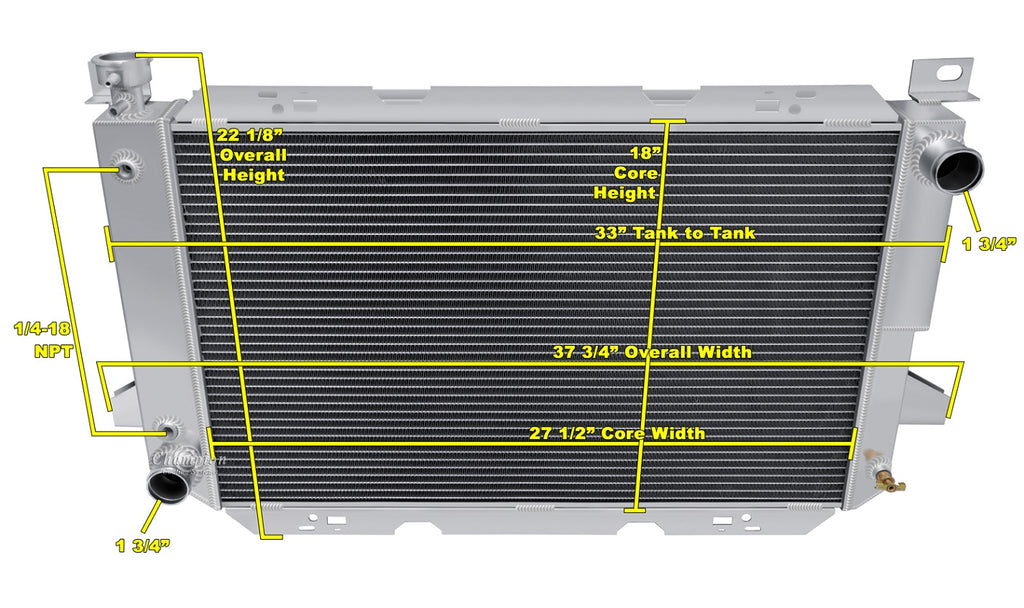

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 1.63" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 3" thick
Tubes: 0.75" thick

13 lb. Radiator cap included
Transmission Cooler included (1/4-18NPT)

Aluminum Fan Shroud is also available (sold separately)

Recommeded Fans:
Two 12" or 14" Electric fans recommended for this core size
