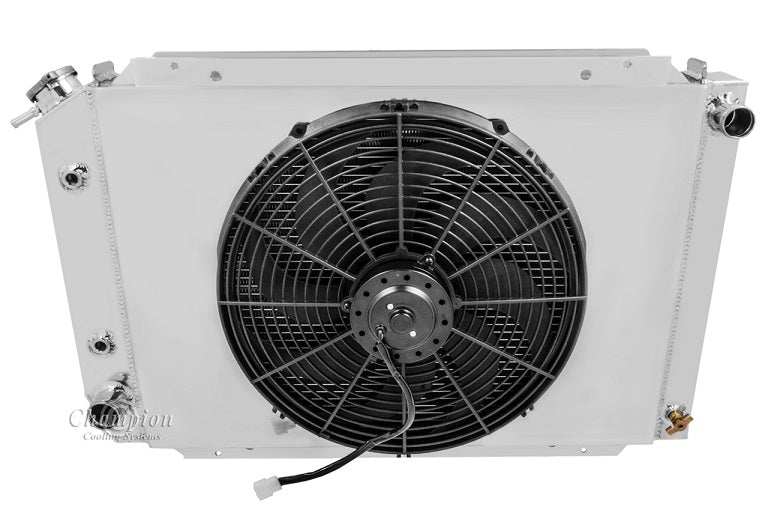

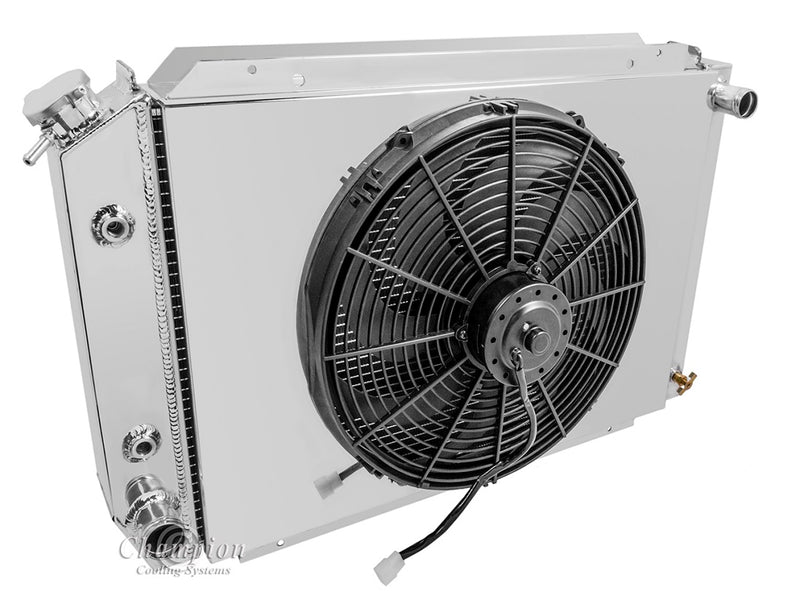

EC138-138FS16C 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and one 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools 400hp

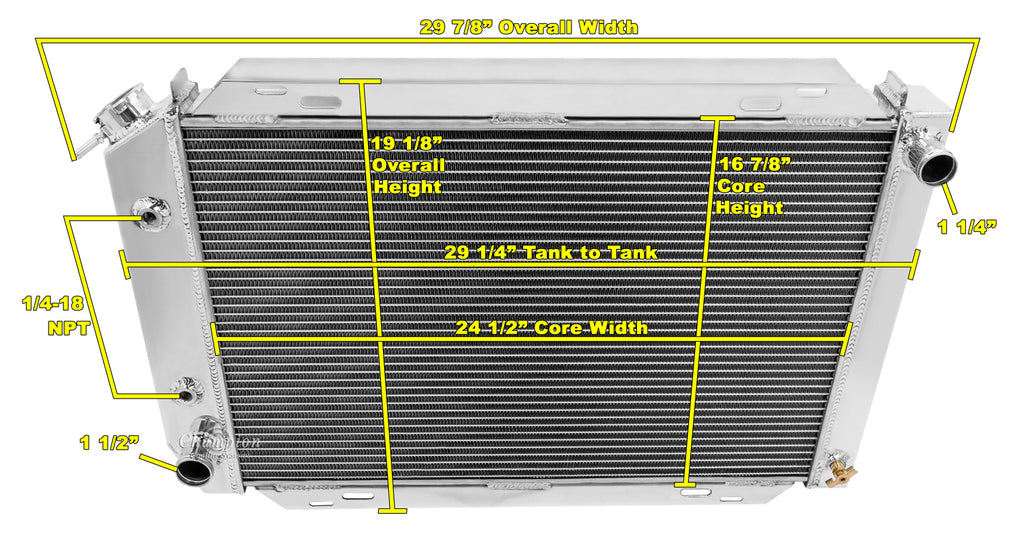

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 1.75" thick
Tubes: 0.75" thick
Total Thickness: 5.75

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/4-18 NPT)
